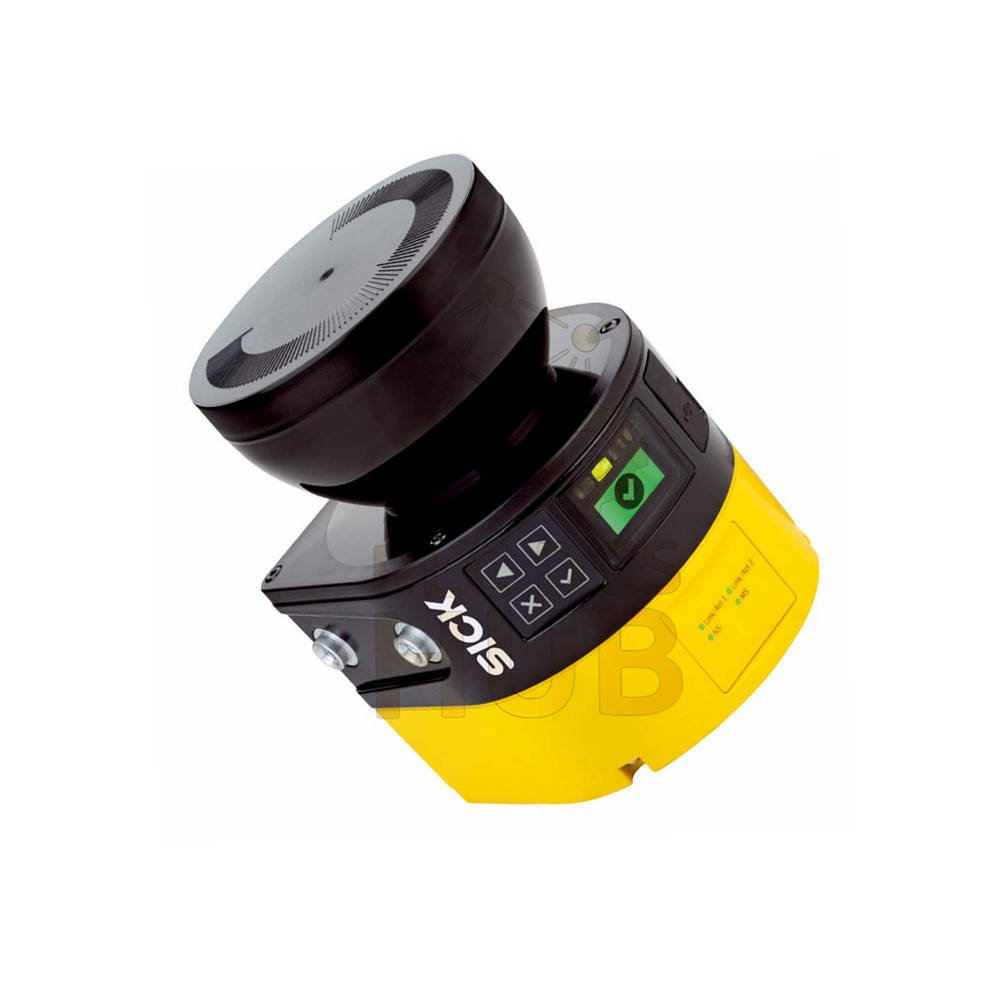

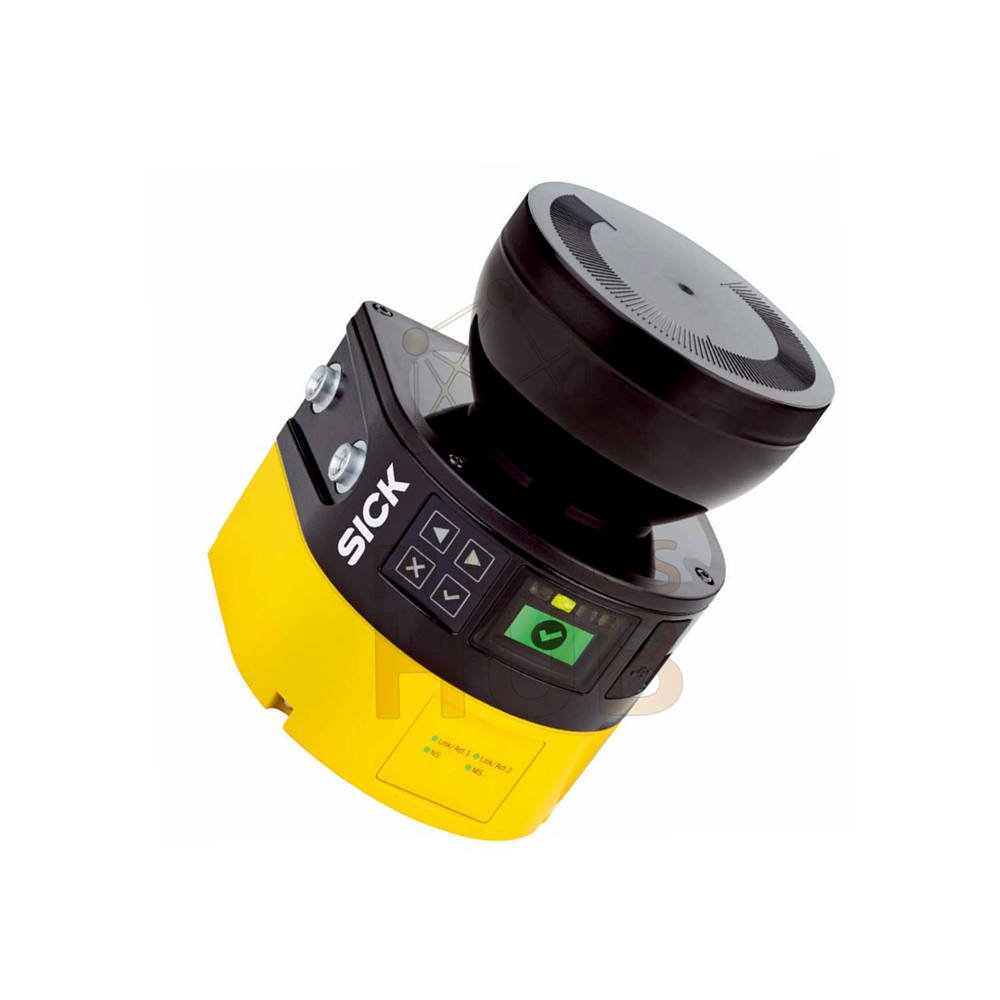

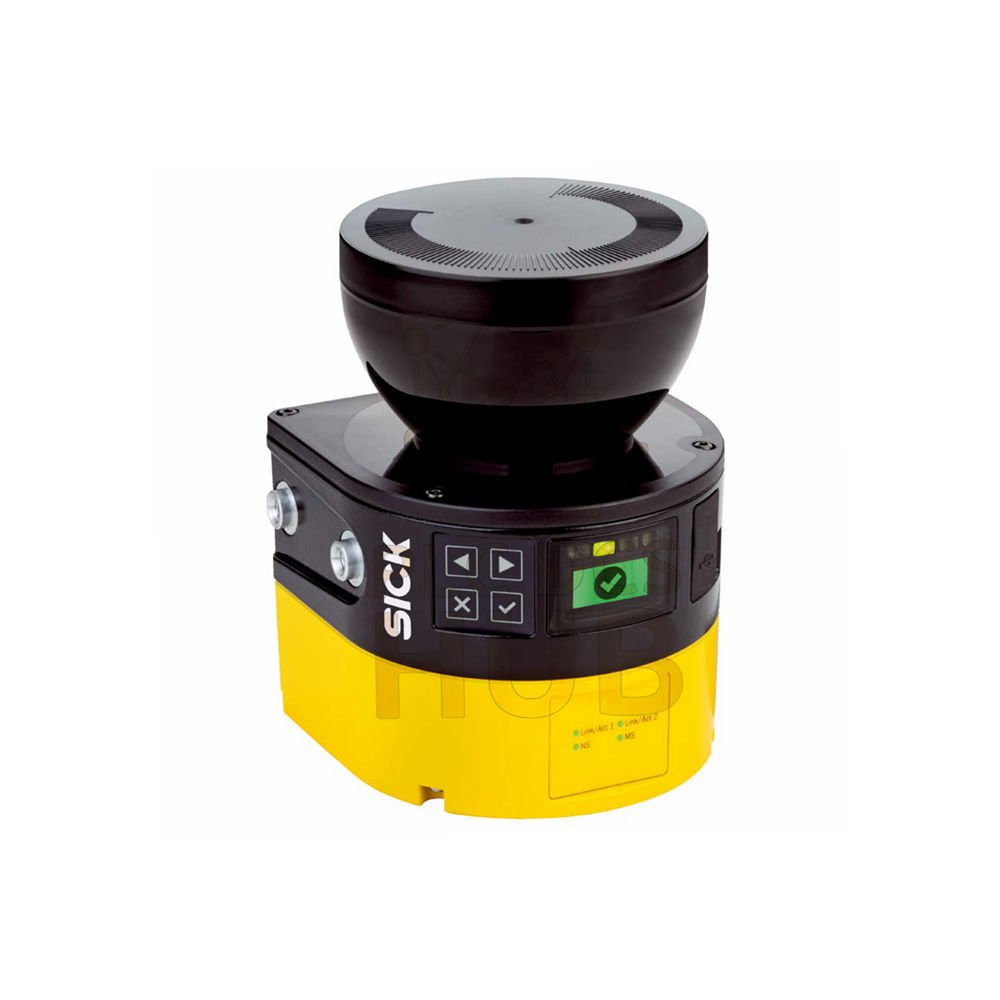

SICK MICS3-ABAZ90PZ1P01 microScan3 Safety Laser Scanner PROFINET

Description

Product Overview

• SICK MICS3-ABAZ90PZ1P01 is a microScan3 safety laser scanner.
• Product version: microScan3 Core with PROFINET.
• This model includes a system plug pre-mounted on the underside.
• Designed for indoor applications.
• Laser class 1 (safe for eyes).
• Wavelength: 845 nm pulsed laser diode.

Model Number Breakdown

• MICS3-ABAZ90PZ1P01
  • MICS3 = microScan3 series
  • ABAZ = Core version with PROFINET
  • 90 = Protective field range 9 meters
  • PZ1 = System plug pre-mounted
  • P01 = Indoor application version

Scanning Performance

• Protective field range: 9 meters
• Warning field range: 64 meters
• Scanning angle: 275°
• Angular resolution: 0.1°
• Response time: 115 ms
• Protective field supplement: 100 mm
• Number of fields: 8
• Number of monitoring cases: 8
• Simultaneously monitored fields: ≤ 4

Configurable Resolution

• 30 mm
• 40 mm
• 50 mm
• 60 mm
• 70 mm
• 150 mm
• 200 mm

Safety Ratings

• Type: Type 3 (IEC 61496)
• SIL: SIL 2 (IEC 61508)
• Category: Category 3 (EN ISO 13849)
• Performance level: PL d (EN ISO 13849)
• PFHD: 8.0 x 10⁻⁸ (mean probability of dangerous failure per hour)
• Mission time (TM): 20 years (EN ISO 13849)
• Safe state on fault: Safety outputs via network = logic 0

Interfaces and Connectivity

• Voltage supply: M12 male connector, 4-pin, A-coded
• Fieldbus: 2 x M12 female connectors, 4-pin, D-coded
• Safety outputs via network: 4
• OSSD pairs: 0 (all safety outputs are network-based)
• Configuration software: Safety Designer (PC)
• Configuration interface: USB 2.0 (Mini-USB), Ethernet
• Fieldbus protocol: PROFINET with PROFIsafe

PROFINET Specifications

• PROFINET specification: V2.3
• PROFIsafe profile: V2.6.1 and V2.4
• GSDML: According to V2.33
• Cycle time options: 1 ms, 2 ms, 4 ms, 8 ms, 16 ms
• Conformance Class: C
• Net load class: III (security level 1 test)
• Switch: 2-port real-time switch (IEEE 802 compliant)
• Port properties: 100Base-TX, auto-negotiation, auto-crossover (MDIX), auto-polarity

Network Management and Diagnostics

• SNMP, MIB-2, LLDP (IEEE 802.1AB)
• MRP client support
• Diagnostics I&M data sets: 0 to 5
• PROFINET alarms supported
• PROFIenergy support
• F_iPar_CRC
• SNTP (client and server)
• TCP/IP communication via port 9000

Electrical Data

• Protection class: III (EN 61140)
• Supply voltage Vs: 24 V DC (16.8 to 30 V DC)
• Typical power consumption: 7.2 W

Mechanical Data

• Dimensions (W x H x D): 112 mm x 150.7 mm x 111.1 mm (without system plug)
• Weight: 1.45 kg
• Housing material: Aluminum
• Housing color: RAL 1021 (yellow), RAL 9005 (black)
• Optics cover: Polycarbonate with scratch-resistant coating

Environmental Ratings

• Enclosure rating: IP65 (IEC 60529)
• Ambient light immunity: ≤ 40 klx (IEC 61496-3)
• Ambient operating temperature: -10°C to +50°C
• Storage temperature: -25°C to +70°C
• Vibration resistance: Class 5M1 and 3M4
• Shock resistance: 100 m/s² at 16 ms, 150 m/s² at 6 ms
• EMC: IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4

Optical Data

• Light source: Pulsed laser diode
• Wavelength: 845 nm
• Detectable remission factor: 1.8% to several 1000%
• Laser class: 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1)

Display Elements

• Graphic color display
• LED indicators

Installation Guide

• Mount scanner with 275° scanning angle facing the protection zone.
• Keep optics cover clean for best detection.
• Connect supply voltage via M12 A-coded connector (16.8-30V DC).
• Connect PROFINET network to both D-coded M12 ports.
• Use Safety Designer software on PC to configure fields.
• Secure system plug firmly on underside.

Debugging and Maintenance

• Use graphic display to view field status.
• Connect USB or Ethernet for configuration.
• Check LED indicators for fault codes.
• Clean optics cover with soft cloth only.
• Avoid scratches on scratch-resistant coating.
• Verify PROFINET cycle time matches application needs.

Compatibility

• Works with any PROFINET controller with PROFIsafe.
• Supports PROFINET specification V2.3 and higher.
• GSDML file available for integration.
• Compatible with Safety Designer software (V07.00.00C or later).
• MRP client works with MRP-compatible switches.

Warranty

• 12 months warranty from delivery date.
• Covers manufacturing defects only.

Shipping

• Carriers: FedEx, UPS, DHL.
• Express shipping available worldwide.
• Tracking number provided within 24 hours.

Typical Applications

• Indoor machine safeguarding
• Robot work cell access protection
• Automated guided vehicle (AGV) navigation
• Conveyor zone monitoring
• Stationary and mobile safety applications

Diagnostic Capabilities

• Graphic display shows field status in real time.
• Safety Designer provides detailed diagnostic messages.
• PROFINET alarms report faults to controller.
• I&M data sets 0-5 store device information.
• SNTP synchronizes time for event logging.

Frequently Asked Questions

• What is the difference between protective and warning field?
  • Protective field stops machine when entered.
  • Warning field gives alert before protective field.
  • Warning field range is 64 meters (much larger).
• Can I use this scanner outdoors?
  • This model is for indoor applications only.
  • IP65 rating allows dusty/wet indoor use.
  • For outdoor, choose microScan3 outdoor version.
• Scanner does not show safe output.
  • Check supply voltage between 16.8 and 30V DC.
  • Verify PROFIsafe communication with controller.
  • Use Safety Designer to check field violations.
• How many fields can I monitor at once?
  • Up to 4 fields simultaneously.
  • Total 8 fields available in memory.
  • 8 monitoring cases can switch between field sets.
• Purchase Guide (Selection Guide)
  • Choose MICS3-ABAZ90PZ1P01 for 9m protective field need.
  • Pick PROFINET version when using PROFIsafe safety network.
  • Select indoor model for factory floor applications.
  • Verify response time 115 ms meets your machine stopping distance.
  • Ensure 275° scanning angle covers your hazard zone.
  • For longer protective field, consider other microScan3 variants.
  • Need OSSD pairs? This model uses network safety outputs only.

Ordering Support

• Inquiries: +86 158 8020 0923 (WhatsApp)
• Fast quote and stock check available.
