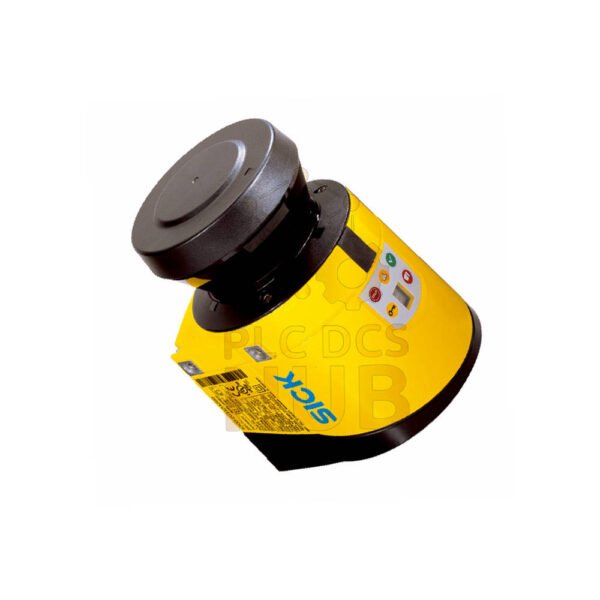

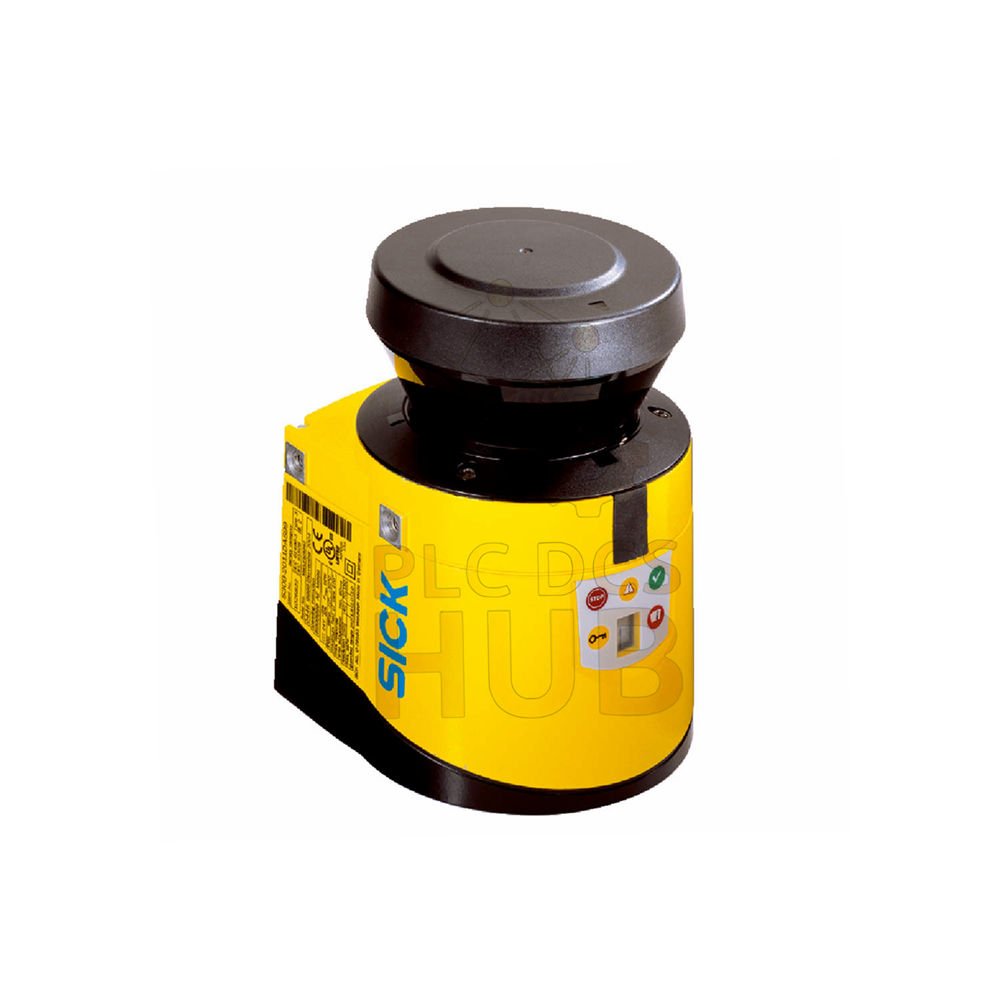

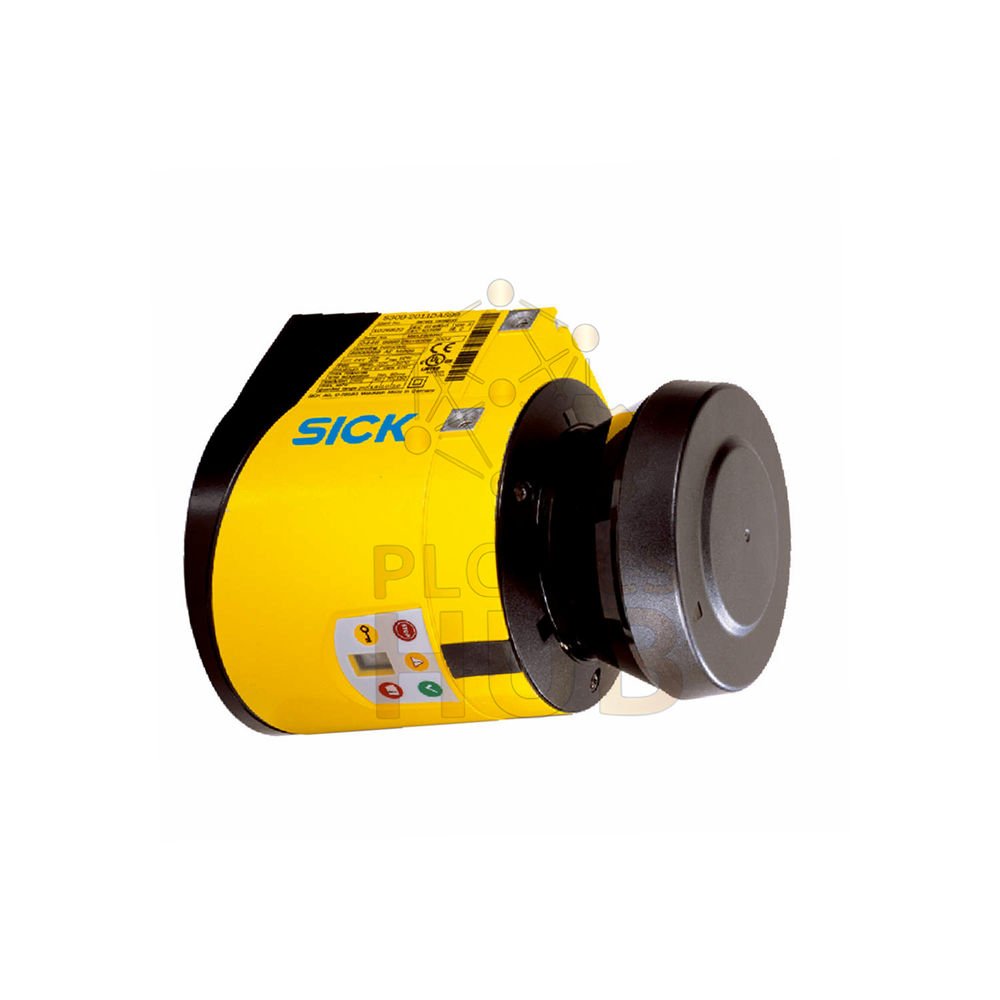

SICK S300 Expert S30B-3011GB Laser Scanner for Indoor Machine Safety

Description

Product Overview

• SICK S30B-3011GB is a S300 Expert safety laser scanner.
• This is a Type 3, SIL 2, PL d device for indoor safety.
• It scans 270° to detect people or objects near machines.
• Perfect for stationary machine guarding and mobile robotics.

Basic Identification

• ▹ Brand: SICK
• ▹ Model: S30B-3011GB
• ▹ Series: S300 Expert
• ▹ Product version: S300 Expert
• ▹ Model type: Sensor without system plug
• ▹ Connection: Male connector M12, 5-pin
• ▹ Application: Indoor only

Key Specifications – Ranges & Coverage

• ▹ Protective field range: 3 meters (10 feet)
• ▹ Warning field range: 8 meters at 15% reflectivity
• ▹ Distance measuring range: 30 meters (98 feet)
• ▹ Scanning angle: 270 degrees
• ▹ Angular resolution: 0.5 degrees
• ▹ Response time: 80 milliseconds
• ▹ Protective field supplement: 100 mm

Configurable Resolution Options

• The scanner detects objects at these resolutions:
• 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm.
• Choose 30 mm for small objects like hands or legs.
• Choose 150 mm for large objects or low risk areas.

Field Sets & Monitoring Capabilities

• Type of field set: Triple field sets (3 fields per set).
• Number of field sets: 16 programmable field sets.
• Number of fields: 48 total fields (16 sets x 3 fields).
• Number of monitoring cases: 32 cases.
• Switch between monitoring cases for different machine states.

Safety Certifications & Ratings

• SIL rating: SIL 2 (IEC 61508)
• Safety category: Category 3 (EN ISO 13849)
• Performance level: PL d (EN ISO 13849)
• PFHD: 8.0 x 10⁻⁸ (dangerous failure per hour)
• Mission time (TM): 20 years (EN ISO 13849)
• Safe state on fault: At least one OSSD turns OFF.

Key Safety Functions

• Restart interlock – prevents automatic restart.
• External device monitoring (EDM) – checks external contactors.
• Multiple sampling – 2 to 16 samples, configurable.
• Monitoring case switching – change zones dynamically.
• Static protective field switching – fixed safety zones.
• Dynamic protective field switching – moving fields for AGVs.
• Contour as reference – compare scan against saved contour.
• Integrated configuration memory – stores settings onboard.
• Safe SICK device communication via EFI – talk to other SICK devices.
• Delay of automatic reset: 2 to 60 seconds, configurable.

Interfaces & Inputs/Outputs

• Connection type: System plug with or without cable (order separately).
• Universal I/Os: 5 configurable I/O points.
• OSSD pairs: 1 pair (safety outputs).
• Application diagnostic outputs: 3 outputs.
• External device monitoring (EDM): 1 input.
• Reset/restart input: 1 input.
• Static control inputs: 3 inputs (or 5 with EFI).
• Dynamic control inputs: 2 inputs for incremental encoder.
• Standby input: 1 input.

Data Communication & Diagnostics

• Configuration & diagnostics interface: RS-232 (38.4 kBaud).
• Data interface: RS-422 (up to 500 kBaud).
• Safe SICK device communication (EFI): up to 500 kBaud, cable up to 50m.
• Configuration method: PC with CDS (Configuration and Diagnostic Software).

Physical Dimensions & Weight

• Dimensions (W x H x D): 102 mm x 152 mm x 106 mm.
• Weight: 1.2 kg (2.65 lbs).
• Housing material: Aluminum die cast.
• Housing color: Yellow (RAL 1021).
• Optics cover: Polycarbonate with scratch-resistant coating.

Environmental Ratings

• Enclosure rating: IP65 (dust-tight, water jets).
• Operating temperature: -10°C to +50°C (14°F to 122°F).
• Storage temperature: -25°C to +50°C (-13°F to 122°F).
• Vibration resistance: Class 5M1 per IEC 60721-3-5.
• Shock resistance: 50 m/s² (11 ms) and 100 m/s² (16 ms).
• Class 5M1 – rugged for industrial use.

Laser Specifications – Safe for Eyes

• Light source: Pulsed laser diode.
• Wavelength: 905 nm (infrared).
• Detectable remission: 1.8% to >1000% (reflectors included).
• Laser class: Class 1 – safe for eyes under normal use.
• Complies with 21 CFR 1040.10 and IEC 60825-1.

Installation Guide

• Mount scanner with 270° scanning angle facing hazard zone.
• Mount at height suitable for detection (typical 150-200 mm from floor).
• Connect M12 5-pin male connector to system plug or cable.
• Wire OSSD outputs to machine safety circuit.
• Connect RS-232 for configuration and diagnostics.
• Use CDS software to configure protective fields.
• Test all fields before putting machine into service.

Debug & Maintenance

• Use CDS software for live scan data and diagnostics.
• Check LED indicators on scanner for status.
• Clean optics cover regularly with soft cloth.
• Verify protective fields annually using test object.
• Monitor multiple sampling setting to reduce false trips.

Compatibility

• OSSD outputs connect to any Category 3 or PL d safety circuit.
• EFI interface connects to other SICK safety devices.
• RS-422 data output works with PLCs for measured data.
• Compatible with Versamax PLC systems via RS-422.
• Also integrates with Modicon Quantum using serial communication.

Package Contents & Warranty

• 12 months warranty from invoice date. Covers defects.
• Package includes: 1 x S300 Expert scanner with M12 5-pin connector.
• System plug not included – order separately if needed.
• No mounting bracket or software CD included.
• Return defective units for replacement under warranty.

Shipping – Fast Worldwide Delivery

• We ship with FedEx, UPS, DHL express services.
• Tracking number within 24 hours. Insurance included.
• Typical delivery: 3-7 business days.

Typical Applications

• Stationary machine guarding – presses, robots, conveyors.
• Mobile robotics (AGVs) – dynamic field switching.
• Access protection – hazardous area monitoring.
• Material handling – zone monitoring with 48 fields.

Diagnostic Capability

• CDS software provides live scan data and object tracking.
• RS-232 interface gives detailed diagnostic messages.
• Application diagnostic outputs (3) signal status to PLC.
• Contour detection helps verify scanner alignment.

Frequently Asked Questions (FAQ)

• Question: What is the maximum protective field range?Answer: 3 meters for safety. Warning field goes to 8 meters at 15% reflectivity.
• Question: Can I use this scanner outdoors?Answer: No. This model is for indoor use only.
• Question: What safety level does this device meet?Answer: Type 3, SIL 2, Category 3, PL d.
• Question: How many fields can I configure?Answer: 48 fields total (16 field sets x 3 fields per set).
• Question: What is multiple sampling?Answer: Scanner checks each point multiple times (2-16) before triggering. Reduces false stops.

Experience-based Q&A (Field Notes)

• Question: My scanner triggers false stops on shiny floors.Answer: Increase multiple sampling value. Also adjust resolution to 70mm or higher.
• Question: Can I reduce the response time?Answer: Response time is fixed at 80 ms. Reduce multiple sampling to lower effective response.
• Question: The scanner shows communication error. What should I check?Answer: Verify RS-232 cable and baud rate (38.4 kBaud). Check system plug connection.
• Question: How do I use dynamic field switching?Answer: Connect incremental encoder to dynamic control inputs. Fields change with machine speed.

Buying Guide – Choose the Right Scanner

• Choose S30B-3011GB for 3m protective field with 270° scan angle.
• Need longer protective field (4.5m or 5.5m)? Look at S300 standard models.
• Need outdoor use? Consider outdoor-rated S300 models.
• Remember to buy system plug separately if you need cable connection.
• Resolution: 30-70 mm for person detection, 150 mm for collision avoidance.
• Contact us for mounting brackets, system plugs, or configuration service.
