SICK S30B-3011CA S300 Advanced Safety Scanner 3m Range

Description

Brief Introduction

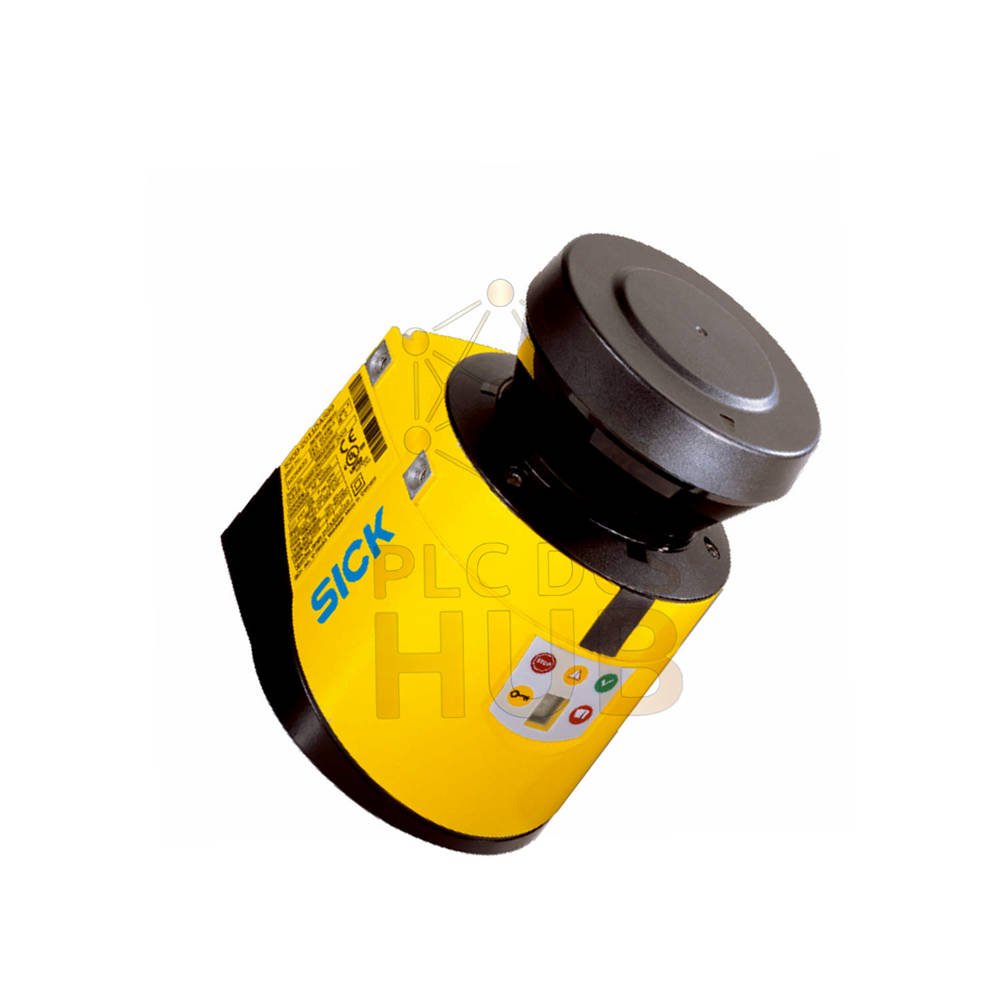

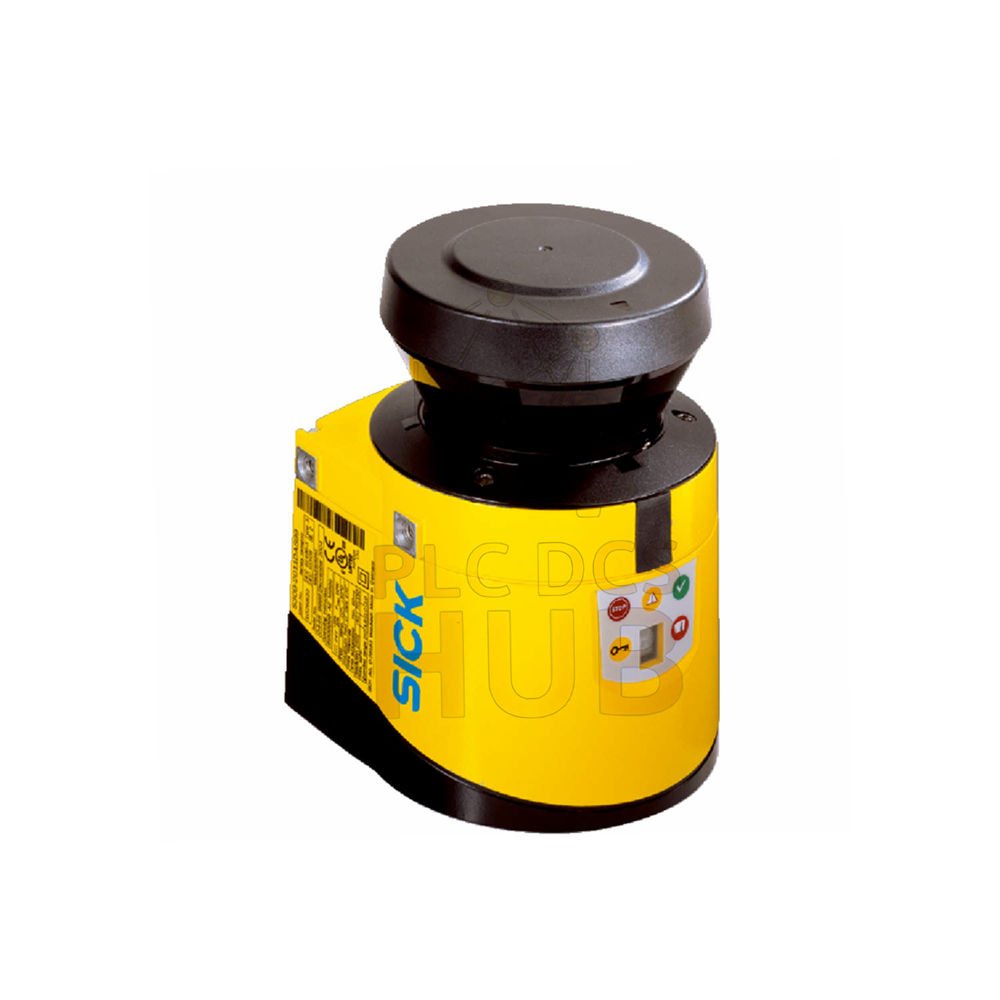

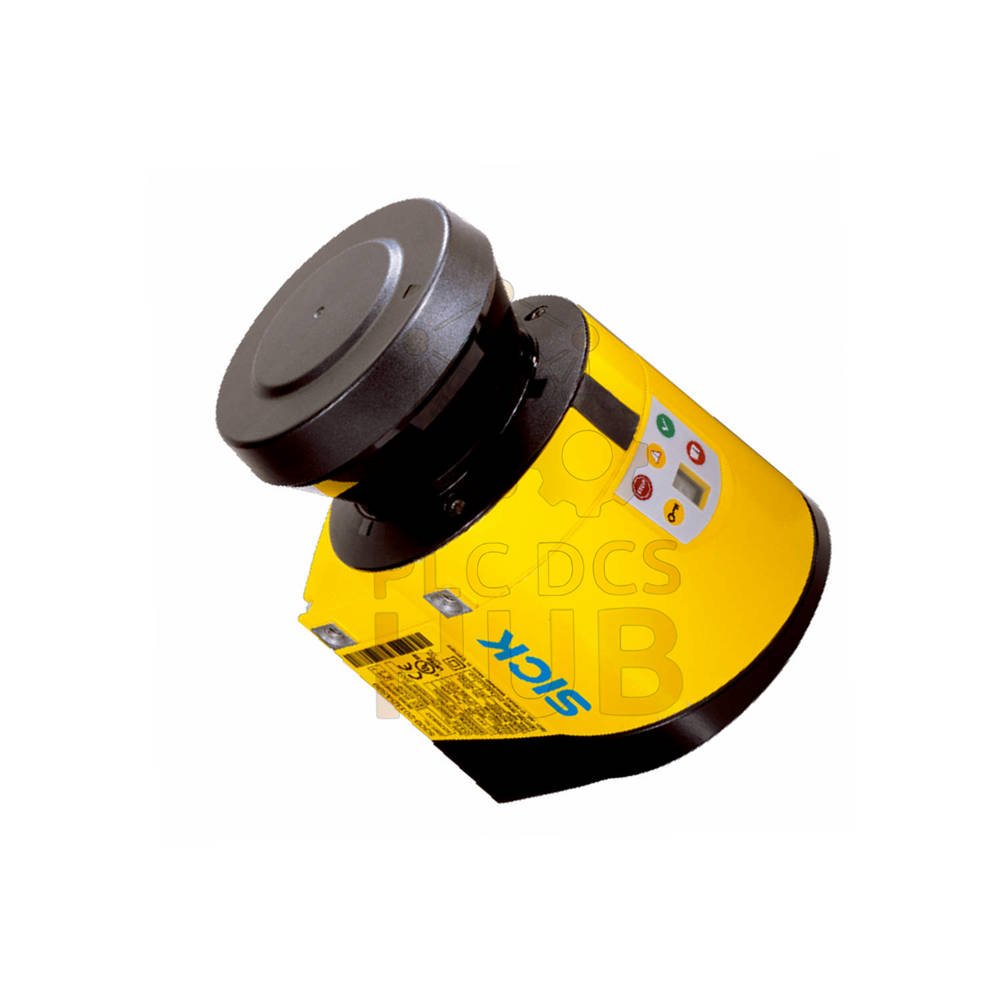

The SICK S30B-3011CA is a safety laser scanner from the S300 Advanced series. This device monitors indoor areas for people and objects. It provides a protective field up to 3 meters. The scanner has one OSSD pair for safety outputs. This model comes without a system plug. You need to buy it separately.

Technical Specifications

• Brand: SICK
• Model Number: S30B-3011CA
• Alternate Part Number: 1056428
• Series: S300 Advanced
• Product Type: Safety Laser Scanner
• Application: Indoor use
• Protective Field Range: 3 m
• Warning Field Range: 8 m (at 15% reflectivity)
• Distance Measuring Range: 30 m
• Scanning Angle: 270°
• Configurable Resolutions: 30, 40, 50, 70, 150 mm
• Angular Resolution: 0.5°
• Response Time: 80 ms
• Protective Field Supplement: 100 mm
• Multiple Sampling: 2 to 16 (configurable)
• Type: Type 3 (IEC 61496)
• SIL: SIL 2 (IEC 61508)
• Category: Category 3 (EN ISO 13849)
• Performance Level: PL d (EN ISO 13849)
• PFHD: 8.0 x 10⁻⁸
• Mission Time (TM): 20 years
• Supply Voltage: 24 V DC (16.8 to 30 V DC)
• Power Consumption: 0.33 A typical, 1.7 A max
• Output Type: 2 PNP semiconductors
• OSSD Pairs: 1 (2 x 250 mA outputs)
• Application Diagnostic Outputs: 3 x 100 mA
• Universal I/Os: 5
• Housing Material: Aluminum die cast
• Housing Color: RAL 1021 (yellow)
• Optics Cover: Polycarbonate with scratch-resistant coating
• Dimensions (W x H x D): 102 x 152 x 106 mm
• Weight: 1.2 kg
• Enclosure Rating: IP65
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -25°C to +50°C
• Shock Resistance: 16 g at 16 ms
• Laser Class: 1 (eye safe)
• Wavelength: 905 nm

Ordering Code Breakdown (Tree View)

• S30B = S300 Advanced family
  • 3011CA = Specific configuration
    • 30 = Protective field 3.0 meters
    • 1 = 270° scanning angle
    • 1 = One OSSD pair
    • C = Standard version
    • A = Indoor application

Field Sets & Monitoring

• Triple field sets allow three fields per set.
• Total of 4 field sets available.
• 12 fields can be configured in total.
• 4 monitoring cases for different machine states.
• Static control inputs switch between field sets.
• Standby input turns off the laser when not needed.

Safety Functions

• Restart interlock prevents automatic restart.
• External device monitoring (EDM) checks external contactors.
• Automatic reset delay from 2 to 60 seconds.
• Multiple sampling reduces false trips (2 to 16 samples).
• Safe state = at least one OSSD is OFF.

Interfaces & Communication

• Configuration: PC with CDS software via RS-232 (38.4 kBaud)
• Data interface: RS-422 (up to 500 kBaud)
• EFI: Safe SICK device communication (up to 500 kBaud, 50 m cable)
• System plug: Required but not included. Order separately.

Inputs & Outputs Summary

• 1 x External device monitoring (EDM)
• 1 x Reset / restart input
• 2 x Static control inputs
• 5 x Static control inputs with EFI
• 1 x Standby input
• 1 x OSSD pair (2 outputs, 250 mA each)
• 3 x Application diagnostic outputs (100 mA each)
• 5 x Universal I/Os (configurable)

Installation Guide

• Mount the scanner on a stable, vibration-free surface.
• Keep the 270° scanning area clear of obstructions.
• Buy a compatible system plug separately (M12, 5-pin).
• Connect 24V DC power to the system plug.
• Wire OSSD outputs to the safety controller or contactors.
• Connect EDM input to monitor external relays.
• Use CDS software on a PC for configuration via RS-232.
• Test all field sets before putting the machine into service.

Environmental Tolerance

• IP65 rating protects against dust and water jets.
• Works from -10°C to +50°C ambient temperature.
• Stores safely from -25°C to +50°C.
• Withstands vibration per IEC 60721-3-5 Class 5M1.
• Handles continuous shock of 50 m/s² for 11 ms.
• Survives 100 m/s² for 16 ms shock.

Compatibility

• Works with any safety PLC or safety relay that accepts PNP OSSD signals.
• EFI interface allows connection to other SICK safety devices.
• CDS software runs on standard Windows PCs.
• System plugs available from SICK with or without cables.

Packing List

• 1 x SICK S30B-3011CA safety laser scanner
• Note: System plug is NOT included. Order separately.
• Original SICK factory packing

Warranty & Shipping

• 12-month warranty covers manufacturing defects.
• Fast worldwide shipping with FedEx, UPS, or DHL.
• Tracking number provided for every order.

Typical Applications

• Stationary machine guarding for robots and presses
• Hazardous area access protection
• AGV collision avoidance (indoor)
• Material handling equipment safety
• Packaging machine guarding

Diagnostic Capabilities

• Three application diagnostic outputs show system status.
• CDS software provides detailed field and fault data.
• RS-232 interface allows local diagnostics.
• EFI communication shares diagnostic info with other SICK devices.
• LED indicators on the scanner show basic status.

Professional FAQ

• Q: Does this scanner come with a system plug?
• A: No. The S30B-3011CA does not include a system plug. You must buy it separately.
• Q: What is the difference between protective field and warning field?
• A: Protective field stops the machine when breached. Warning field gives an alert but does not stop.
• Q: Can I use this scanner outdoors?
• A: No. This is an indoor model. Direct sunlight may cause false trips.
• Practical tip from engineers:
• Always mount the scanner with the yellow housing facing the danger zone. The black back is for mounting brackets.
• Selection guide for buyers:
• Choose S30B-3011CA for 3m protective field with one OSSD pair and RS-232 configuration.
• Need a longer protective field? Look for S30B-4011CA (4m) or S30B-6011CA (6m).
• Need two OSSD pairs? Select a different S300 model (e.g., S30B-3011DB).
• Need Ethernet configuration? Upgrade to S3000 series or microScan3.
• Remember to order a system plug (M12, 5-pin) with or without cable.
• For EFI communication with other SICK devices, ensure your cable is ≤50 meters long with 0.22 mm² conductor.
