SICK CLV620-0120 Barcode Scanner | Fixed Mount CLV620 Ethernet

Description

Product Overview

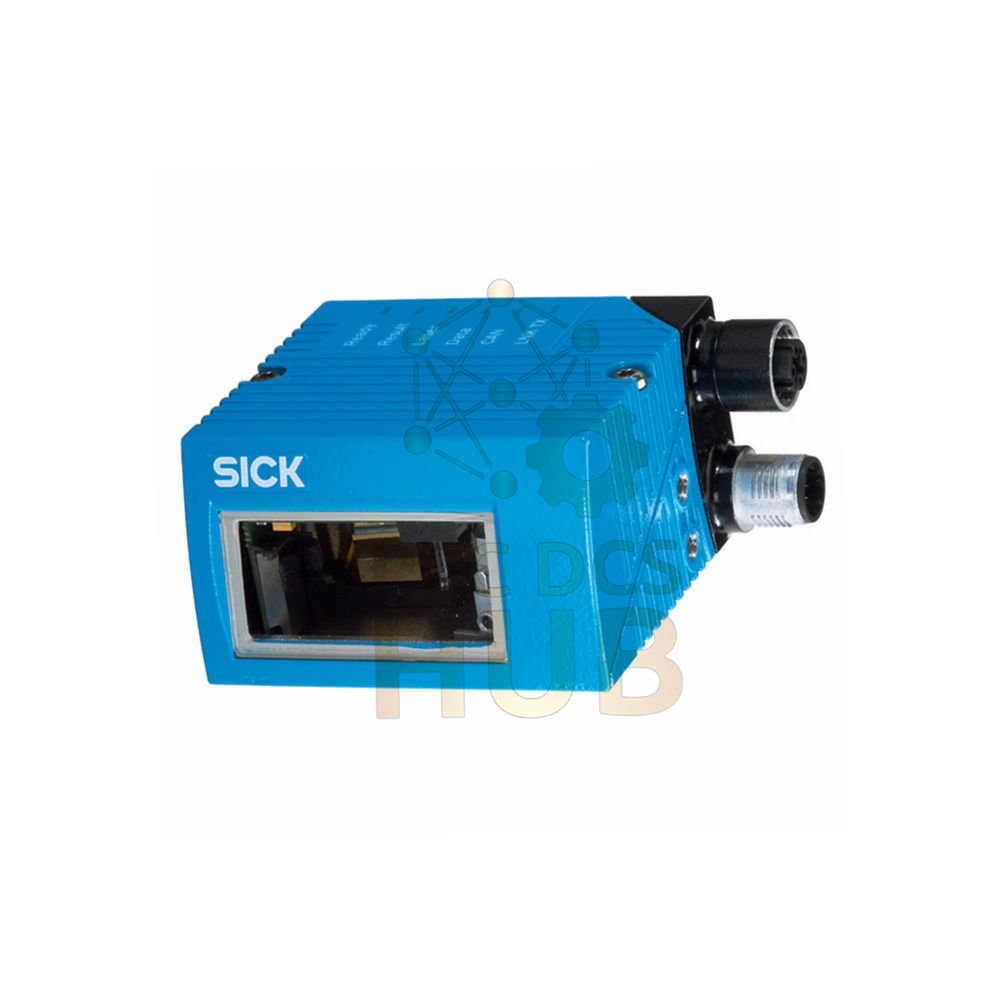

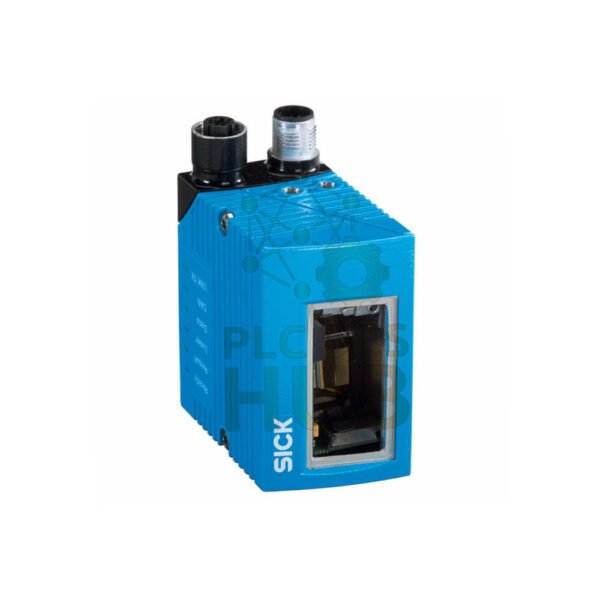

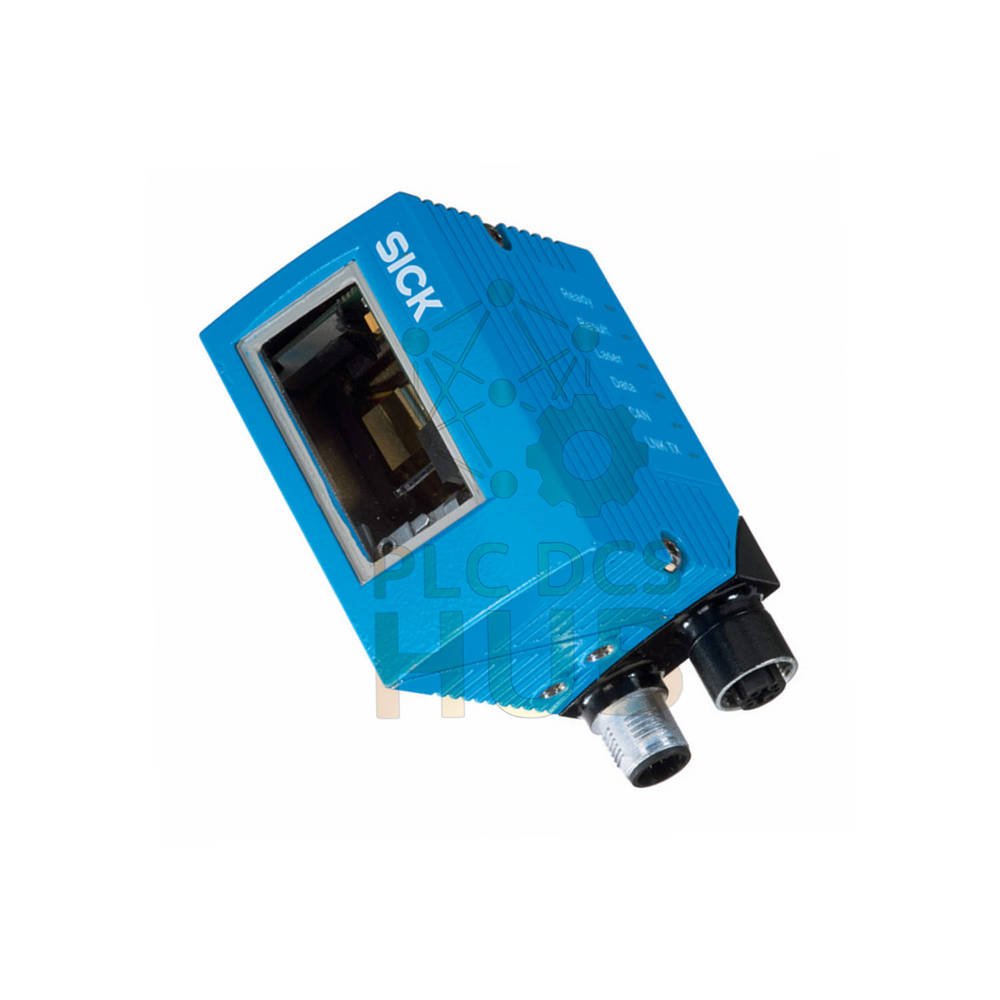

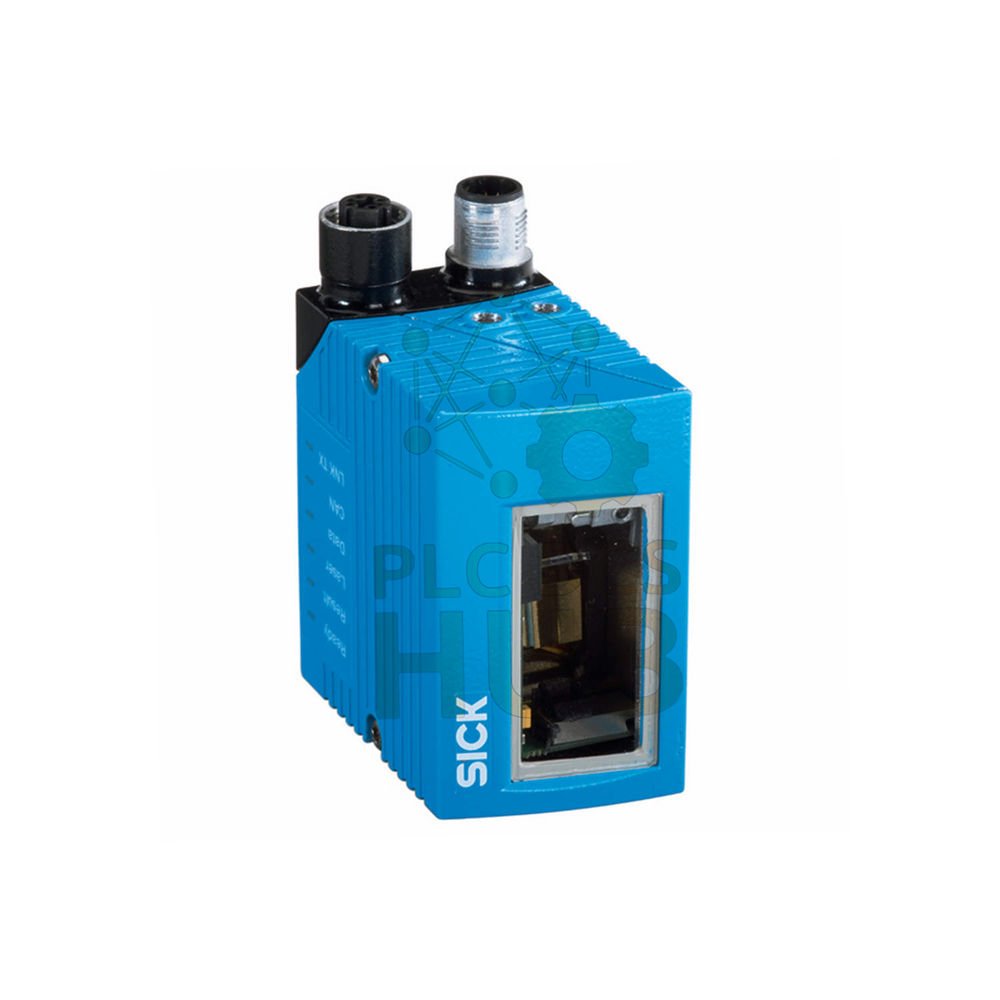

• SICK CLV620-0120 is a fixed mount barcode scanner.
• It belongs to the CLV62x mid-range family.
• This scanner has a front reading field and fixed focus.
• It uses a visible red laser (655 nm) as the light source.
• Laser class 2 ensures safe operation for everyday use.

Key Specifications

• Brand: SICK
• Model: CLV620-0120
• Version: Mid Range
• Connection Type: Ethernet
• Sensor Type: Line scanner
• Optical Focus: Fixed focus
• Aperture Angle: ≤ 50°
• Reading Distance: 60 mm to 365 mm
• Scanning Frequency: 400 Hz to 1,200 Hz
• Code Resolution: 0.2 mm to 1 mm
• Supply Voltage: 10 V DC to 30 V DC
• Power Consumption: 4.5 W
• Housing Material: Aluminum die cast
• Housing Color: Light blue (RAL 5012)
• Window Material: Glass
• Enclosure Rating: IP65
• Protection Class: III (VDE 0106/IEC 1010-1)
• Weight: 205 g (without cable)
• Dimensions (L x W x H): 61 mm x 66 mm x 38 mm
• MTBF: 100,000 hours
• MTTF (Laser diode): 40,000 hours

Model Suffix Breakdown (Tree Structure)

• CLV620-0120 : Complete model code
  • CLV620 : Product series (Fixed mount barcode scanner)
    • 0 : Mid Range version
    • 1 : Ethernet connection type
    • 20 : Front reading field, line scanner, fixed focus

Readable Code Types

• 1D Codes only (not 2D)
• Code 39, Code 128, Code 93, Codabar
• GS1-128 / EAN 128, UPC / GTIN / EAN
• Interleaved 2 of 5, Pharmacode, GS1 DataBar
• Telepen, MSI/Plessey
• Code printing process: Label (printed codes)
• Print ratio: 2:1 to 3:1
• Codes per scan: 1 to 20 (standard), 1 to 6 (SMART620)
• Codes per reading interval: 1 to 50 (auto-discriminating)
• Characters per reading interval: 1,500 (max)
• Multiple readings: 1 to 99 times
• Barcode print contrast (PCS): ≥ 60%

Interfaces & Communication

• Ethernet: TCP/IP (10/100 MBit/s) for data and service
• PROFINET: Single Port (Dual Port via CDF600-2 module)
• EtherNet/IP™: Supported (10/100 MBit/s)
• EtherCAT®: Via external CDF600 fieldbus module
• Serial: RS-232, RS-422, RS-485 (2,400 to 115.2 kBaud)
• CAN: SICK CAN sensor network (20 kbit/s to 1 Mbit/s)
• CANopen: Supported (20 kbit/s to 1 Mbit/s)
• PROFIBUS DP: Via external CDF600-2 module
• Digital Inputs: 3 (2 via CMC600 in CDB620/CDM420)
• Digital Outputs: 2 (via optional CMC600)
• Reading pulse: Digital inputs, serial, auto pulse, CAN
• Indicators: 6 LEDs (Ready, Result, Laser, Data, CAN, LNK TX) + buzzer
• Configuration Software: SOPAS ET

Physical Connections

• Connection type: 2 x M12 cylindrical connectors
• 12-pin male connector and 4-pin female connector
• Both on a swivel connector for flexible mounting
• Compatible with Versamax control systems

Environmental & Operating Conditions

• Operating Temperature: 0°C to +40°C
• Storage Temperature: –20°C to +70°C
• Humidity: 90% (non-condensing)
• Ambient Light Immunity: 2,000 lx on barcode
• EMC Compliance: EN 61000-6-3 / EN 61000-6-2
• Vibration Resistance: EN 60068-2-6
• Shock Resistance: EN 60068-2-27

Installation & Maintenance

• Mounting: Use swivel connectors for flexible positioning. Keep the glass window clean.
• Setup Ease: Configure with SOPAS ET software via Ethernet or serial connection.
• Maintenance: Clean the glass window with a soft, lint-free cloth. No regular calibration needed.
• LED Indicators: Six LEDs show device status at a glance (Ready, Result, Laser, Data, CAN, LNK TX).
• Acoustic Feedback: Buzzer confirms good reads (can be turned off).

Certifications & Standards

• Laser Class 2 (IEC 60825-1:2014)
• IP65 (DIN 40 050)
• Protection Class III (VDE 0106/IEC 1010-1)
• EMC: EN 61000-6-3 / EN 61000-6-2
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27

Package Contents & Warranty

• Package Includes: 1 x CLV620-0120 scanner (without connecting cable), quick start guide.
• Warranty: 12 months factory warranty from delivery date.
• Shipping: FedEx, UPS, DHL express delivery worldwide.

Professional FAQ (5 Questions)

• What is the reading distance of CLV620-0120? The scanner reads codes from 60 mm to 365 mm away from the front window.
• Can this scanner read 2D codes (QR codes)? No. CLV620-0120 reads only 1D barcodes (linear codes).
• Does the scanner include a connecting cable? No. The cable is sold separately. You need an M12 cable for power and data.
• Experience tip: How to improve read rates? Keep the glass window clean. Ensure barcode contrast is above 60%. Avoid direct sunlight on the code.
• Buying guide: Which interface should I choose? Use Ethernet (CLV620-0120) for new PLC systems. Use serial (other models) for legacy machines.
