Description
Product Overview

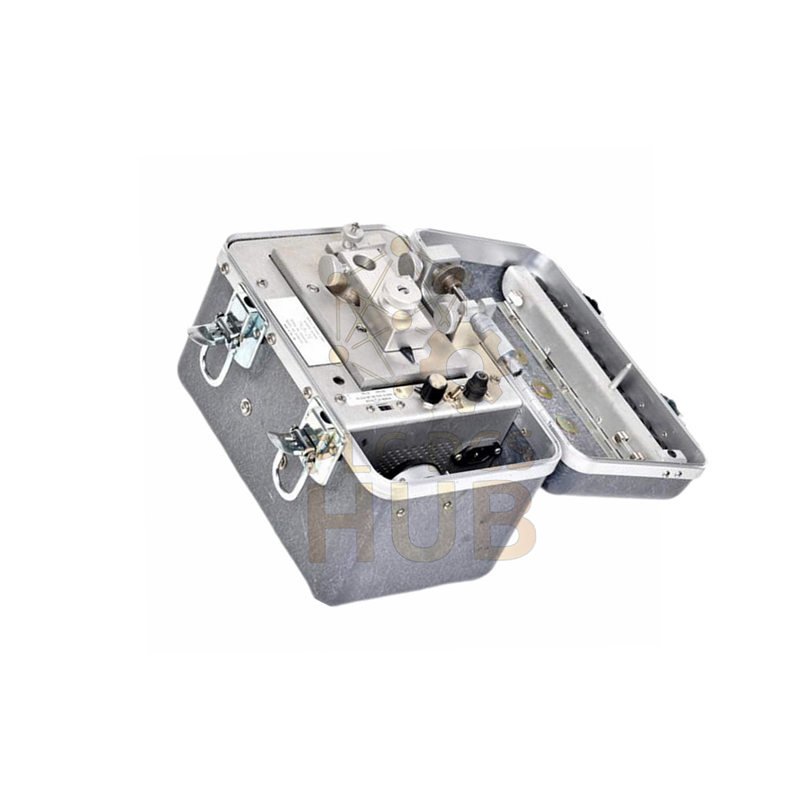

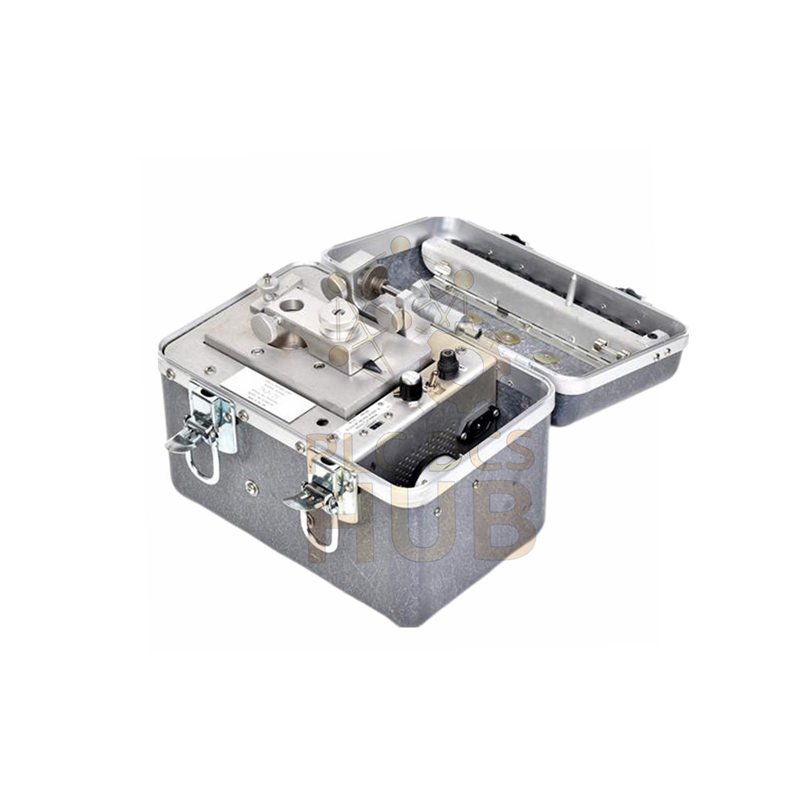

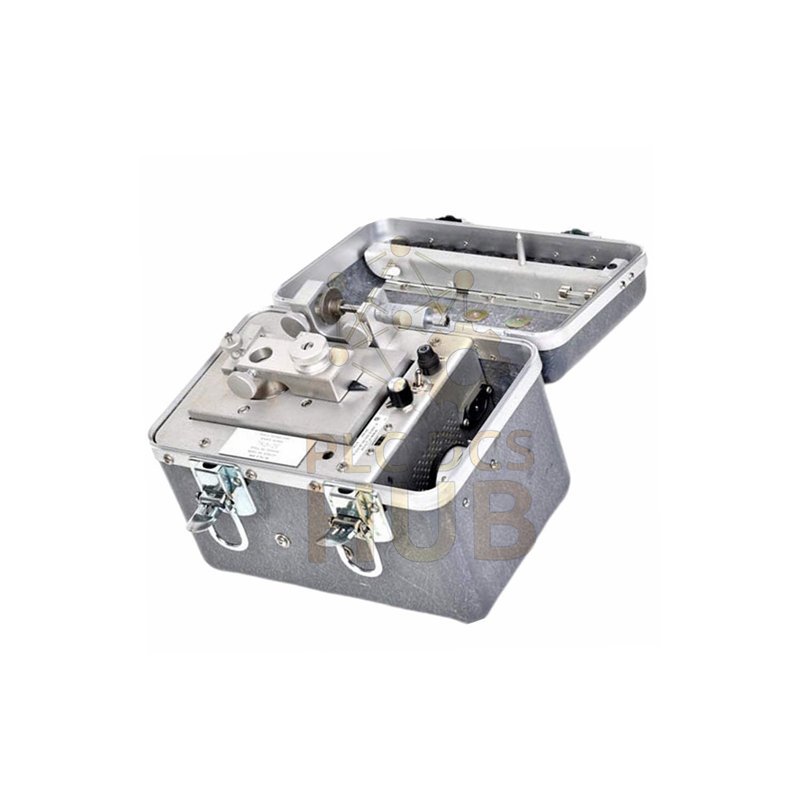

Bently Nevada TK3-2E Calibration Instrument is a portable test solution. It confirms probe health.
The unit helps engineers trust their readings.
It supports both vibration and position checks.
It is widely used in maintenance labs.
Key Advantages
- Fast verification without machine shutdown
- Mechanical signal output with known values
- No oscilloscope required
- High repeatability for routine tests
- Field and workshop ready
Functional Design
- Spindle micrometer simulates shaft position
- Motor-driven wobble plate creates vibration
- Swing-arm holder secures proximity probes
- Dial micrometer reads actual motion
Technical Data
- Brand: Bently Nevada
- Model: TK3-2E Calibration Instrument
- Series: TK Calibration Series
- Instrument Type: Mechanical vibration and position simulator
- Vibration Amplitude: 50 to 254 µm peak-to-peak
- Equivalent Range: 2 to 10 mils peak-to-peak
- Electric Speed: Up to 10,000 cpm
- Air Drive Speed: Up to 5,000 cpm
- Speed Stability: ±25 percent tolerance
- Position Resolution: Micron-level mechanical control
- Repeat Accuracy: Suitable for trend checks
Power & Utilities
- Input Voltage: 95 to 125 Vac
- High Voltage Option: 190 to 250 Vac
- Frequency: 50 or 60 Hz
- Current: 1 A minimum
- Air Supply: Up to 90 psi
Material & Build
- Target Button: Hardened alloy steel
- Wobble Plate: Wear-resistant steel
- Frame: Rigid metal structure
- Surface Finish: Industrial protective coating
Physical Information
- Height: 215 mm
- Width: 184 mm
- Depth: 285 mm
- Weight: 5.9 kg
Typical Use Scenarios
- Monitor acceptance testing
- Probe system verification
- Maintenance training
- Shutdown inspection preparation
- Workshop calibration checks
Selection Guidance
- Choose TK3-2 for mechanical signal validation
- Ideal for proximity-based systems
- Best for Bently Nevada monitor users
Professional FAQ
Is the TK3-2 suitable for routine maintenance?
Yes. It supports repeat checks during planned outages.
Can it test both vibration and position?
Yes. One unit covers both functions.
Does speed accuracy affect results?
No. Amplitude is the main reference.
Is air drive required?
No. Electric drive works alone.
Who should buy the TK3-2?
Users responsible for monitor reliability.
Packaging & Warranty
- Protective industrial packaging
- Factory-tested before shipment
- Warranty: 12 months
