TR Electronic CEV58M SSI Encoder | 33-Bit Programmable

Description

Product Overview

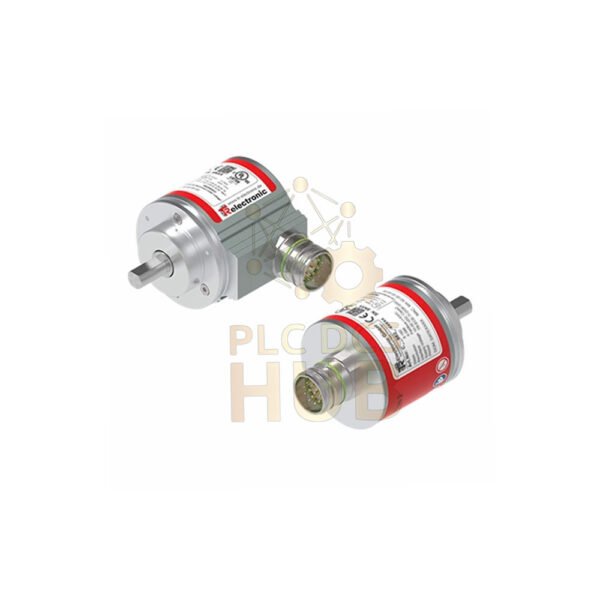

TR Electronic CEV58M-SSI-1-D-1 is a high-precision rotary encoder. Specifically, this device combines single-turn and multi-turn measurement in one unit. Therefore, you get absolute position over many rotations without any need for homing.

For example, it offers 33-bit total resolution with up to 32768 steps per turn. Moreover, the encoder handles up to 256000 revolutions.

Furthermore, this encoder runs on 24 VDC (11 to 27 VDC range). Consequently, it draws only 80 mA when unloaded. As a result, the unit weighs between 0.3 and 0.5 kg.

Key Features

• SSI interface with 80 to 1000 kHz clock frequency
• Programmable resolution and output format
• Maximum mechanical speed of 12000 rpm
• IP65 protection against dust and water jets
• 8 programmable push-pull outputs
• Short-circuit proof on all programmable outputs

Technical Specifications

Electrical Data

• Brand: TR Electronic
• Model: CEV58M-SSI-1-D-1
• Nominal voltage: 24 VDC
• Voltage range: 11 to 27 VDC
• Nominal current: 80 mA (unloaded)
• UL/CSA approval: Complies with NEC Class 2

Resolution & Output

• Device type: Single-Turn and Multi-Turn combined
• Total resolution: up to 33 Bit
• Steps per revolution: up to 32768
• Revolutions: up to 256000
• Output capacity: up to 27 Bit

SSI Interface

• SSI-Clock input: Optocoupler isolated
• SSI-Data output: RS-422, 2-wire
• Clock frequency range: 80 to 1000 kHz
• SSI-Mono time: 20 µs typical

Incremental Interface (Optional)

• Square wave signals: K1± and K2±
• Pulses per turn: 1024 or 2048
• Output driver: TTL RS-422 at 5 VDC

Performance Data

• Internal cycle time: 250 µs
• Maximum mechanical speed: 12000 rpm
• Angular acceleration: up to 100000 rad/s²
• Moment of inertia: 2.5E-6 kg m² typical
• Start-up torque at 20°C: 2 Ncm

Mechanical Specifications

• Shaft diameter options: 6 mm, 8 mm, 10 mm, 12 mm, or 3/8 inch
• Shaft load (axial): up to 50 N
• Shaft load (radial): up to 100 N
• Bearing life: ≥ 3.9E+10 revolutions
• At 6000 rpm and 60°C with 60% shaft load

Environmental Ratings

• Working temperature: 0 to +60°C (standard)
• Optional range: -20 to +70°C
• Storage temperature: -30 to +80°C (dry)
• Relative humidity: 98%, non-condensing
• Protection class: IP65 standard
• Vibration resistance: ≤ 100 m/s² (sine, 50-2000 Hz)
• Shock resistance: ≤ 1000 m/s² (half sine, 11 ms)
• Immunity: DIN EN 61000-6-2
• Emissions: DIN EN 61000-6-3

Programmable Functions

• Resolution adjustable via software
• Output code and format configurable
• Counting direction selectable
• Preset value programmable
• Limit switch settings adjustable
• Error signal configuration
• Parity check selectable
• Overspeed monitoring available
• Programming tool: TR-Soft TRWinProg

External Inputs & Outputs

• F/R input: Controls counting direction
• Preset input: For electronic adjustment
• Logic level: “0” below +2V, “1” at supply voltage
• Number of outputs: 8 programmable
• Output stages: Push-pull
• Output level: Supply voltage, up to 50 mA
• Short-circuit proof: Yes

Movement Status Signals

• Movement status indicator available
• Direction signal output
• Error signal for diagnostics
• Parity check for data integrity

Installation Guide

• First, mount the encoder on a clean, flat surface.
• Then, use flexible couplings to avoid shaft misalignment.
• Next, connect SSI clock and data lines with shielded cables.
• Also, keep cables away from high voltage sources.
• After that, tighten the mounting flange screws evenly.
• Finally, do not exceed the specified shaft loads.

Commissioning & Maintenance

• First, download TRWinProg software from TR Electronic.
• Next, connect via SSI interface to set parameters.
• Then, program resolution, counting direction, and preset values.
• After programming, test the encoder at low speed first.
• For maintenance, check shaft alignment every 6 months.
• Also, clean the housing with a dry cloth only.
• Finally, no lubrication is needed for standard use.

Compatibility

• This encoder works with any SSI master controller.
• For instance, it is compatible with Siemens, Rockwell, and Beckhoff PLCs.
• Additionally, optional incremental outputs provide dual feedback.
• Finally, use TRWinProg on Windows-based computers for programming.

Certifications

• CE marked for European markets
• UL/CSA approved per NEC Class 2
• IP65 tested for harsh environments
• Complies with DIN EN 61000-6-2 and -6-3

Package Contents

• TR Electronic CEV58M-SSI-1-D-1 encoder (1 unit)
• Mounting flange with screws
• Sealing ring for IP65 protection
• Quick start guide
• TRWinProg software download link

Warranty & Shipping

We offer a 12-month warranty from the shipment date. Specifically, this covers manufacturing defects only. However, normal wear and misuse are not included.

We ship worldwide via FedEx, UPS, and DHL. Therefore, express delivery takes 3 to 7 business days. Furthermore, we provide tracking numbers within 24 hours.

Typical Applications

• Precision positioning on CNC machines
• Speed control for conveyor systems
• Length measurement on cut-to-length lines
• Robot joint angle feedback
• Printing press registration control
• Packaging machine indexing

Diagnostic Capabilities

• Built-in error signal output for fault detection
• Parity check verifies data transmission integrity
• Movement status signal shows shaft rotation
• Overspeed monitoring triggers alerts
• TRWinProg displays real-time position data

Frequently Asked Questions (FAQ)

1. What does “Single-/Multi-Turn” mean for this encoder?

Single-turn measures position within one full rotation (360°). However, multi-turn counts total revolutions up to 256000 turns. Therefore, this combination gives you absolute position over many rotations.

2. Can I use this encoder at temperatures below 0°C?

Yes, but you need the optional -20°C to +70°C version. Specifically, the standard version works from 0°C to +60°C only. Therefore, check your part number or ask us for the low-temperature option.

3. How do I set the resolution and other parameters?

First, download TRWinProg software from TR Electronic. Next, connect the encoder to your computer via SSI. Then, the software shows all programmable settings. Finally, save your configuration to the encoder’s memory.

4. What happens if I exceed the maximum shaft load?

Unfortunately, the bearing life will decrease significantly. As a result, you may see premature wear or binding. Therefore, always stay within 50 N axial and 100 N radial loads. Also, use flexible couplings to reduce stress.

5. Is this encoder short-circuit proof on all outputs?

Yes, the 8 programmable push-pull outputs have short-circuit protection. However, the SSI data output and power input do not have this protection. Therefore, double-check your wiring before powering on.

6. Which shaft diameter option should I choose?

First, match your existing coupling or motor shaft. Available sizes include: 6 mm, 8 mm, 10 mm, 12 mm, and 3/8 inch. Therefore, measure your shaft carefully. Then, choose the same size for a direct fit.

7. Can I get both SSI and incremental outputs on one encoder?

Yes, the incremental interface is an optional feature. Consequently, you get square wave signals (K1±, K2±) along with SSI data. However, specify this option when ordering if you need both outputs.

Selection Guide

• Choose CEV58M-SSI-1-D-1 when you need absolute SSI feedback with high resolution.
• Pick this model for single-turn and multi-turn measurement in one device.
• Select the standard temperature version (0 to +60°C) for indoor factory use.
• However, order the optional -20 to +70°C version for cold storage or outdoor applications.
• Additionally, add the incremental output option if you need speed feedback and position data.
• For shaft sizes, match your existing coupling exactly to avoid adapter costs.
• Finally, avoid this encoder if you need higher than 12000 rpm or Profibus/EtherCAT interfaces.
