Description
Product Overview

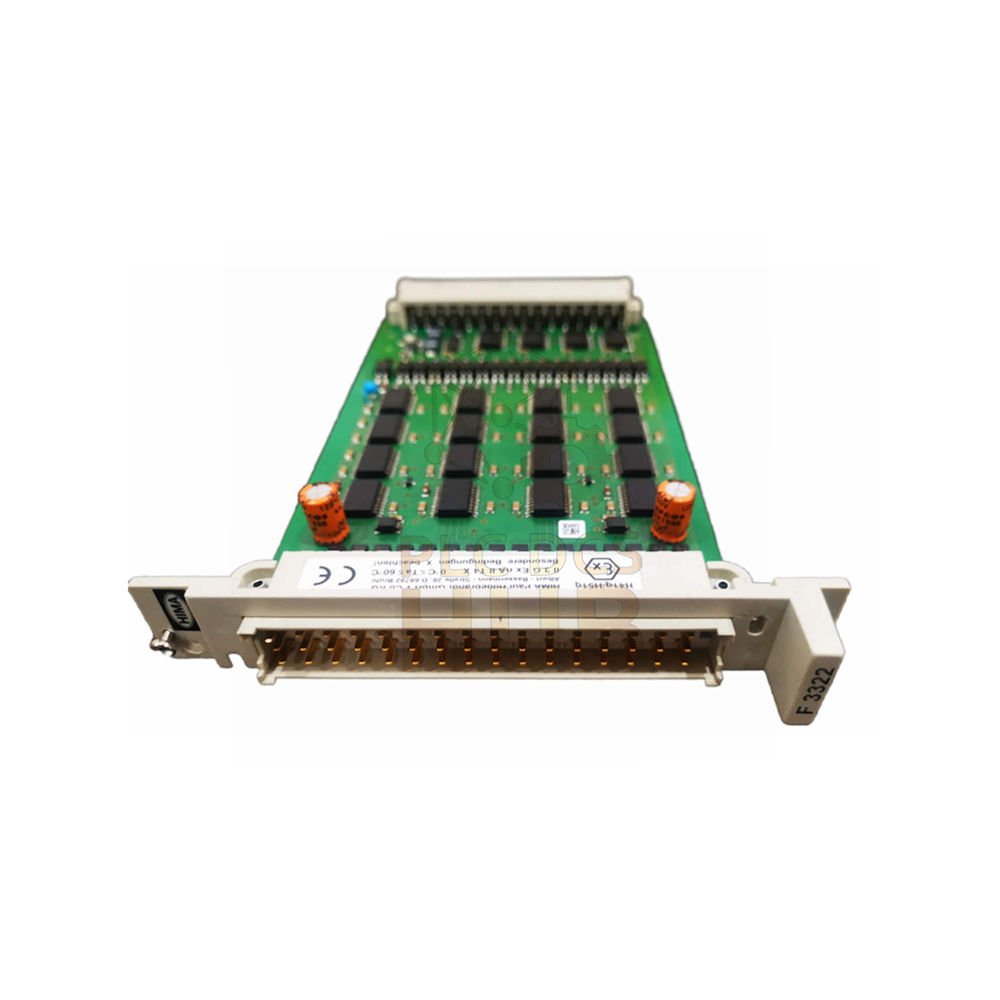

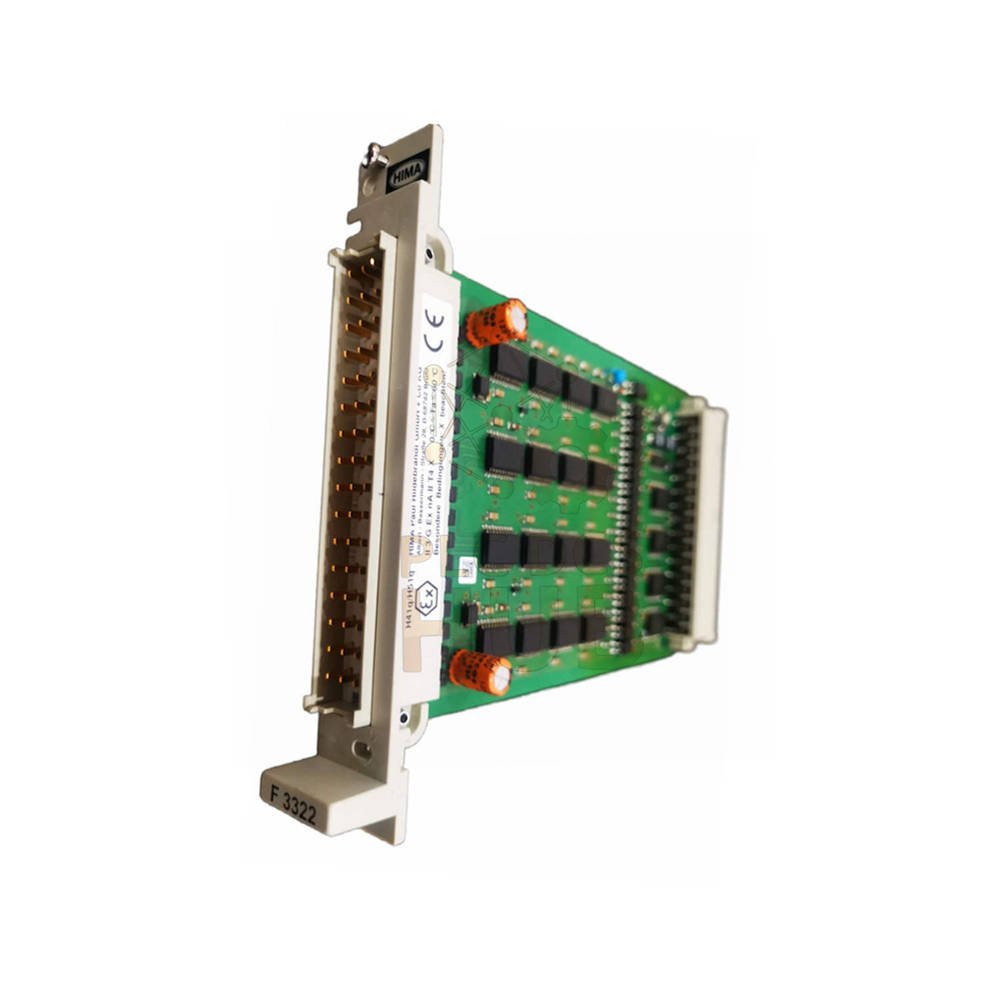

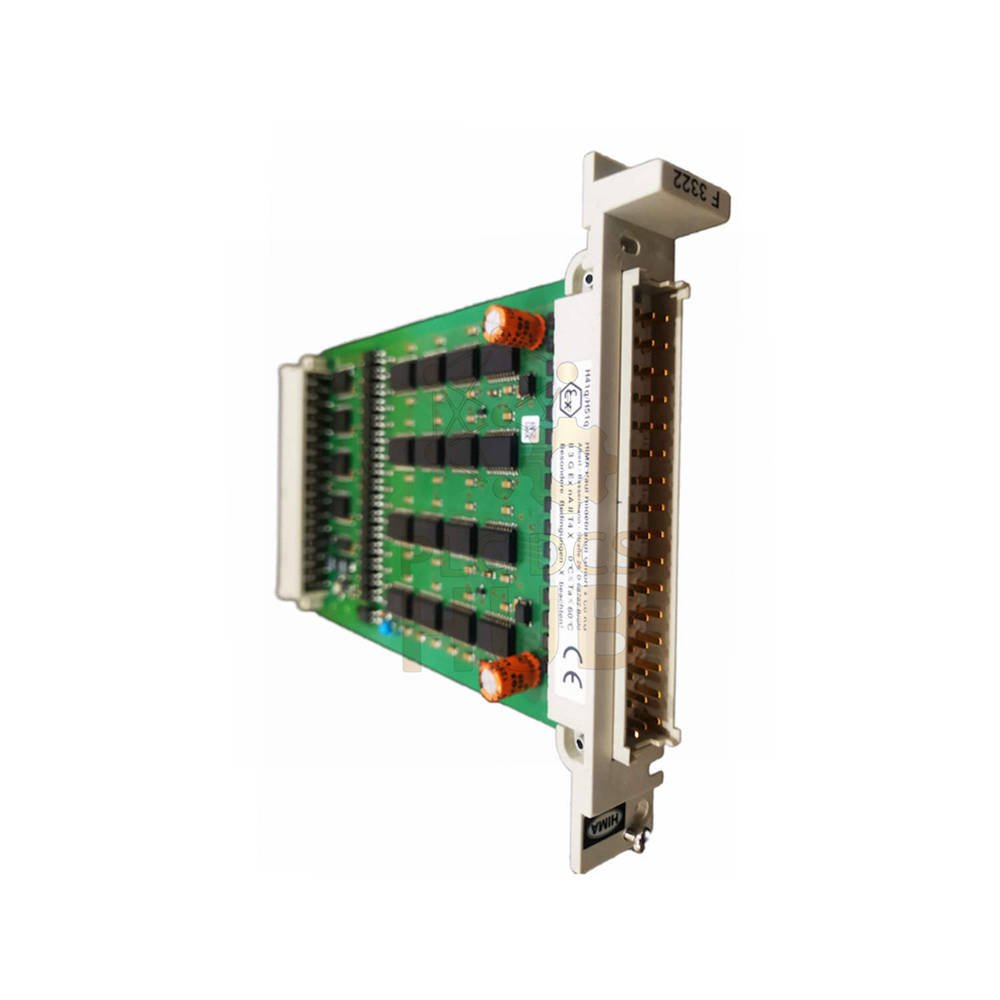

The HIMA F3322 is a 16-fold output module. It works with resistive or inductive loads up to 500 mA (12W). You can also connect lamps up to 12W. The module has safety isolation for your protection. If the L- supply breaks, there is no output signal. This keeps your system safe.
Key Features at a Glance
- Outputs: 16 channels
- Load Type: Resistive or inductive
- Max Load Current: 500 mA per channel
- Max Lamp Power: 12W
- Safety Feature: Safety isolation included
- Fault Behavior: No output when L- supply breaks
- Short Circuit Protection: Outputs are short-circuit proof
- Current Limiter Trip Point: > 550 mA
- Space Required: 4 TE
Technical Data
- Operating Voltage (5V DC): 110 mA
- Operating Voltage (24V DC): 150 mA (plus load current)
- Fusing in IO rack: Standard 4 A slow blow fuse
Important Planning Rules
- Only 10 output modules with full load per IO subrack
- Maximum simultaneous output load: 8 A (half of 16 x 0.5 A)
- This protects your power supply and system
Warranty & Shipping
- 12 months warranty from delivery date
- Covers manufacturing defects only
- Shipping partners: FedEx, UPS, DHL
- Tracking provided for every order
Professional FAQ
Can I use all 16 outputs at full 500mA at the same time?
No. The total load must not exceed 8A simultaneously. That equals half of 16 x 0.5A.
What happens if the L- supply wire breaks?
The module stops all output signals immediately. This is a designed safety feature.
From field experience, how do I avoid overloading the IO subrack?
Install no more than 10 F3322 modules per subrack. Always check your total 8A limit.
What should I check before buying this module?
Confirm you have a free 4TE slot. Verify your IO subrack has standard 4A slow fuse. Calculate your total load across all outputs.
Is this module compatible with safety PLC systems?
Yes. The safety isolation and break detection make it suitable for safety applications. Always follow the planning hints.
Selection Guide
- Need 16 outputs with isolation? Choose HIMA F3322
- Running lamps up to 12W? This module works well
- Worried about short circuits? Outputs are short-circuit proof
- Plan to use many outputs? Respect the 8A total load limit
- Check your IO subrack has 4A slow fuse before installing
Technical Summary Tree
- HIMA F3322 – 16-fold output module
- Load capacity
- Resistive / inductive: 500 mA (12W)
- Lamp connection: up to 12W
- Protection features
- Safety isolation
- Short-circuit proof outputs
- Current limiter > 550 mA
- Failure mode
- No output signal if L- supply breaks
- Power consumption
- 5V DC: 110 mA
- 24V DC: 150 mA plus load
- Installation
- Space: 4 TE
- Fusing: 4A slow (standard in IO rack)
- Load capacity
Typical Applications
- Control small motors and solenoids (inductive loads)
- Switch indicator lamps (up to 12W)
- Safety PLC output for Versamax compatible systems
- Industrial automation needing channel isolation
