Description
Product Introduction

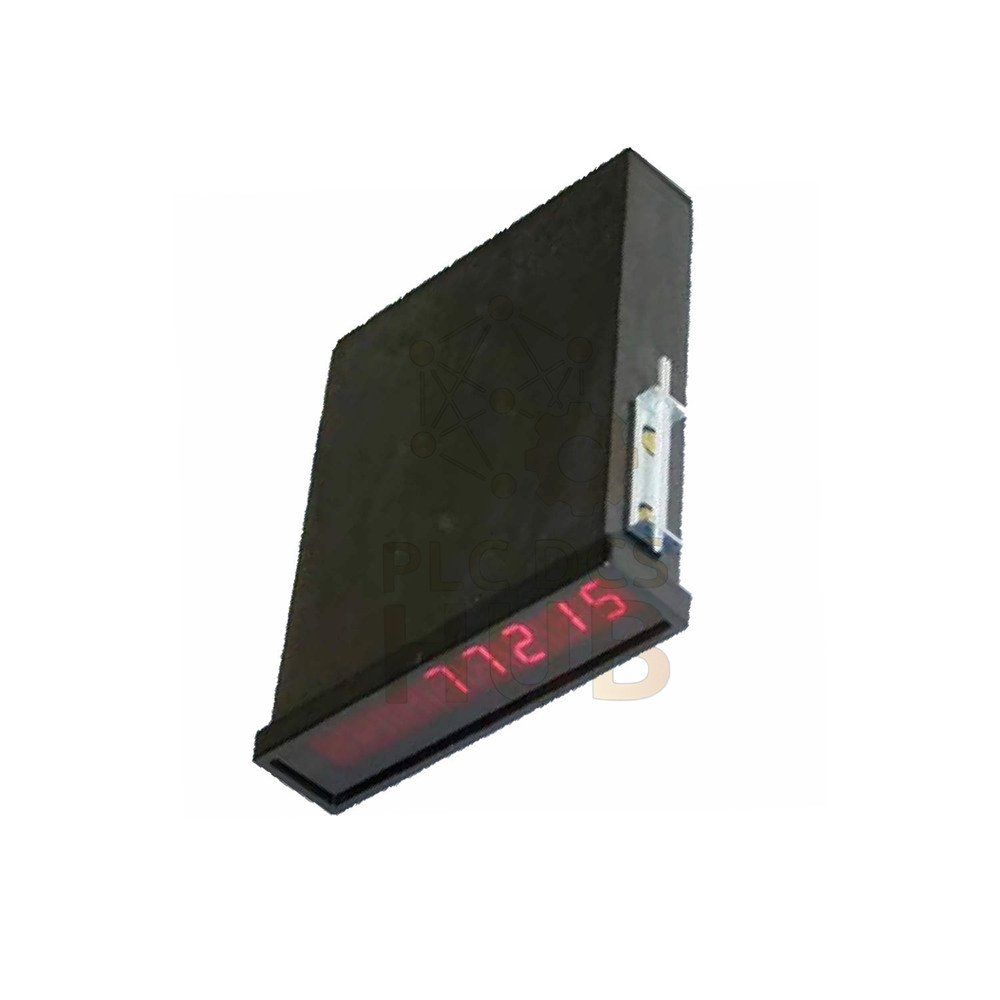

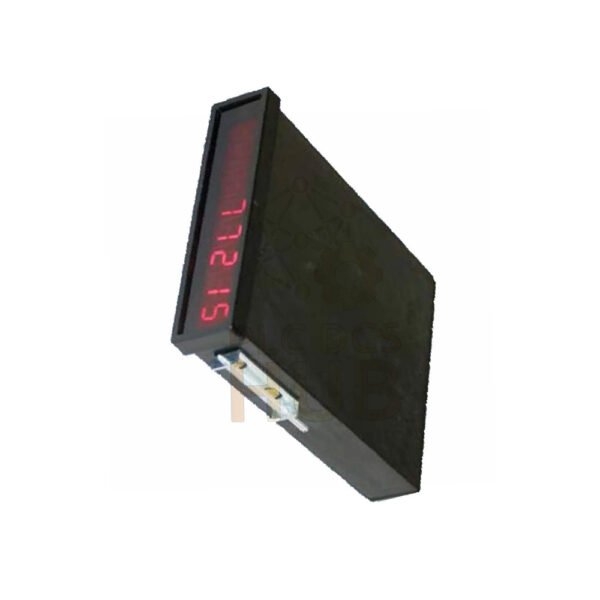

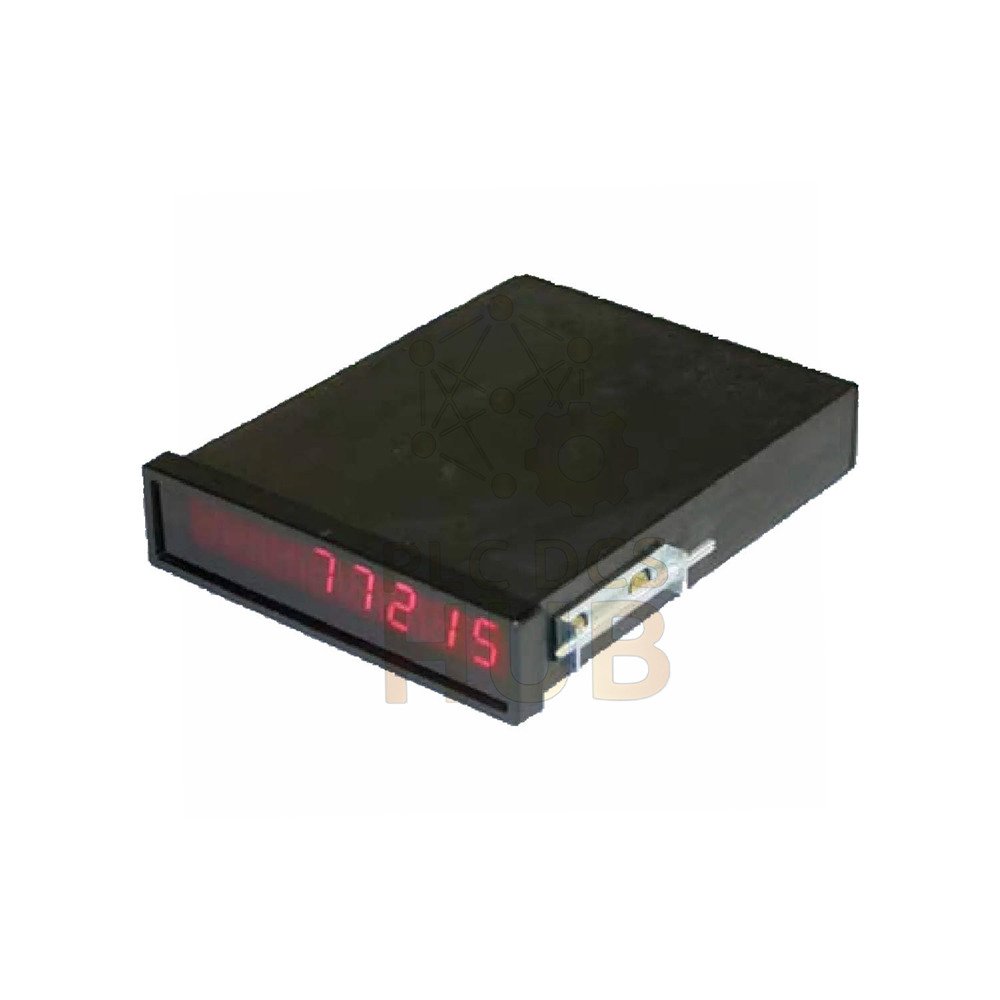

The TR Electronic TAmini 485-80020 is a flexible display unit. It mounts on any front panel. This device works as SSI Master, Slave, or Monitor. You can program it via USB interface using TRWinProg software. The 8-digit LED display shows clear numbers. It fits many industrial automation tasks.
Why Choose This Display
- Three operating modes – Master, Slave, or Monitor
- Easy programming via USB or RS485
- Works with TRWinProg, EprogW32, LTProg, and LLB protocols
- Cascade several slave displays together
- Compact size fits tight spaces
Technical Specifications
- Brand: TR Electronic
- Model: TAmini 485-80020
- Order Number: 485-80020
- Series: TAmini
- Type: Master/Slave Display Unit
- Display Type: 7-segment LED
- Display Digits: 8 digits
- Digit Height: 10 mm
- Supply Voltage: 11 to 30 V DC
- Current (no load): Less than 350 mA
- Working Temperature: 0°C to +60°C
- Protection Class: IP43 (DIN EN 60529)
- Housing: Impact-resistant plastic
- Weight: 0.2 kg typical
SSI Interface Details
- Frequency range: 100 kHz to 750 kHz
- SSI code options: Gray or Binary
- Data bits: 12 to 31 bits
- Mono time: Greater than 20 µs
- Switchable between Master, Slave, and Monitor
Device Communication Protocols
- RS485: TRWinProg, EprogW32, LTProg
- RS422: LLB protocol
- USB: TRWinProg (Windows compatible)
- Alternative programming via USB/RS485 adapter
Display Parameters & Settings
- Decimal point: Shift 0 to 7 digits
- Leading zeros: Show or hide them
- Output format: Decimal (+/-), HEX, or Binary
- Refresh time: 50 ms to 2000 ms
- Display capacity: Up to 26 bits
- Units: mm or Inch
- Offset adjustment: Independent display offset
- Scaling: User defined scaling
- Count direction: User preset
- Voltage warning: Level preset for supply
Dimensions & Mounting
- Housing (WxHxD): 96 x 24 x 120 mm (no connector)
- With connector: 92.5 x 21.5 x 167 mm
- Front panel thickness: Up to 4 mm
- Mounts into standard front panel cutout
- Fits panels with limited depth
Installation & Setup Tips
- Use USB cable for quick first-time setup
- Download TRWinProg from TR Electronic website
- Set SSI mode before connecting to your system
- Test with a 3300 XL 11 mm Proximity Probes for position feedback
- Check voltage warning level to protect the unit
Diagnostic Capabilities
- Monitors supply voltage level in real time
- Shows warning when voltage drops too low
- Displays count direction for motion systems
- LED digits remain readable in low light
- Programmable refresh rate for slow or fast signals
Typical Applications
- Length measuring systems for cut-to-length machines
- Position readout for linear slides and actuators
- Speed display for conveyors and rollers
- Master clock display for factory networks
- Cascaded slave displays on large production lines
- Works with SSI encoders from most brands
Package Contents
- TAmini 485-80020 display unit (1 piece)
- Mounting clips for front panel
- Connector kit (if included)
- Quick reference card
- 12-month warranty certificate
Warranty & Shipping
- 12-month warranty covers manufacturing defects
- Free technical support during warranty period
- Fast shipping via FedEx, UPS, or DHL
- Worldwide delivery with online tracking
- Questions? WhatsApp +86 158 8020 0923
FAQ – Experience & Selection Guide
- Can I connect this display directly to any SSI encoder?
- Yes, if the encoder uses 100-750 kHz SSI. Set the TAmini to Slave mode first. Match data bits and Gray/Binary code with encoder specs. Many users forget to set the mono time correctly.
- What happens if I exceed 60°C operating temperature?
- The LED display becomes dim. Internal circuits may drift. We saw units fail at 70°C after 100 hours. Keep it below 60°C. Add a small fan in hot panels.
- How do I choose between Master and Slave mode?
- Use Master mode when the TAmini reads an encoder directly. Use Slave mode when a PLC or host device sends SSI data. For monitoring traffic between a master and slave, choose Monitor mode. Start with Master mode for simple setups.
- Is the TRWinProg software free?
- Yes, TR Electronic offers TRWinProg for free. Download it from their support site. The USB cable is sold separately. A generic USB mini cable works fine.
- Can I cascade more than two slave displays?
- Yes, you can cascade many TAmini slaves. Each slave reads the SSI signal and passes it forward. We tested 8 slaves in one line with no signal loss. Keep total cable length under 50 meters.
- Does the 12-month warranty cover accidental damage?
- No, the warranty covers only defects from normal use. Water damage or reverse polarity voids the warranty. Use a fuse on the power line. Check polarity twice before turning on.
