Description

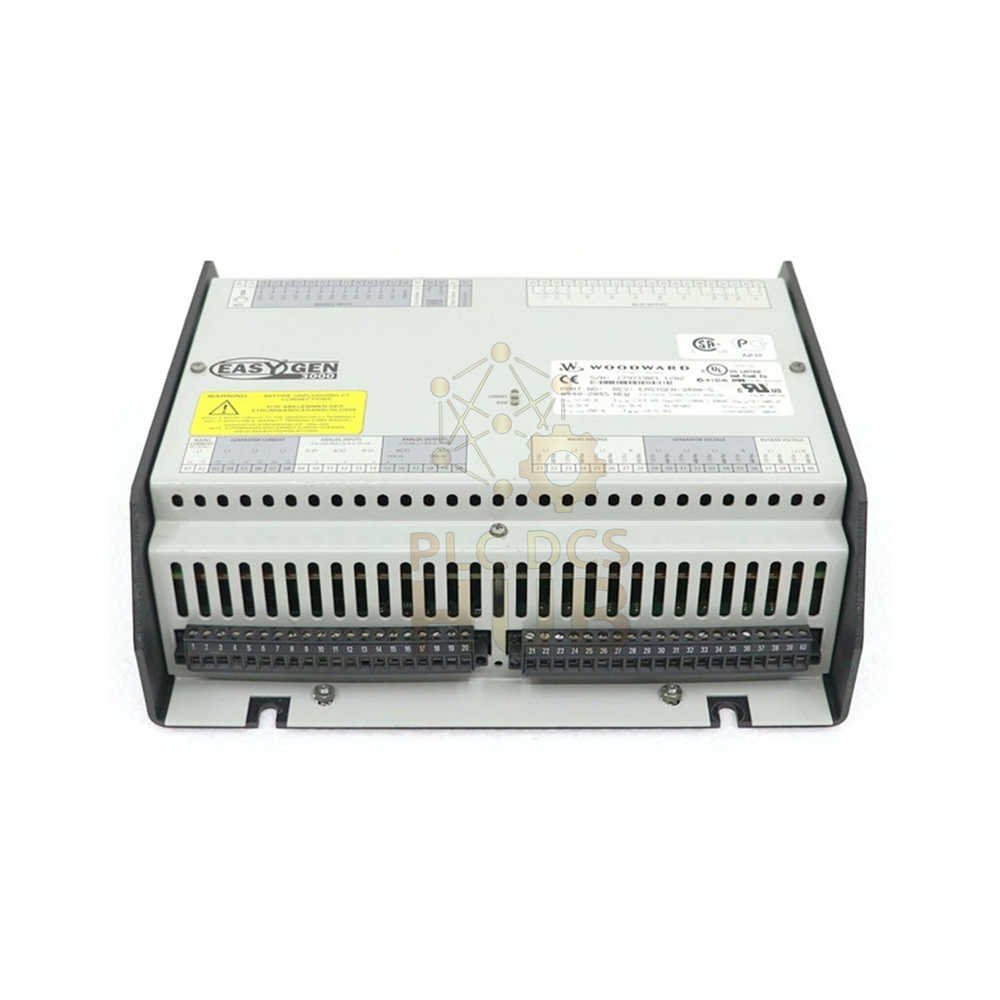

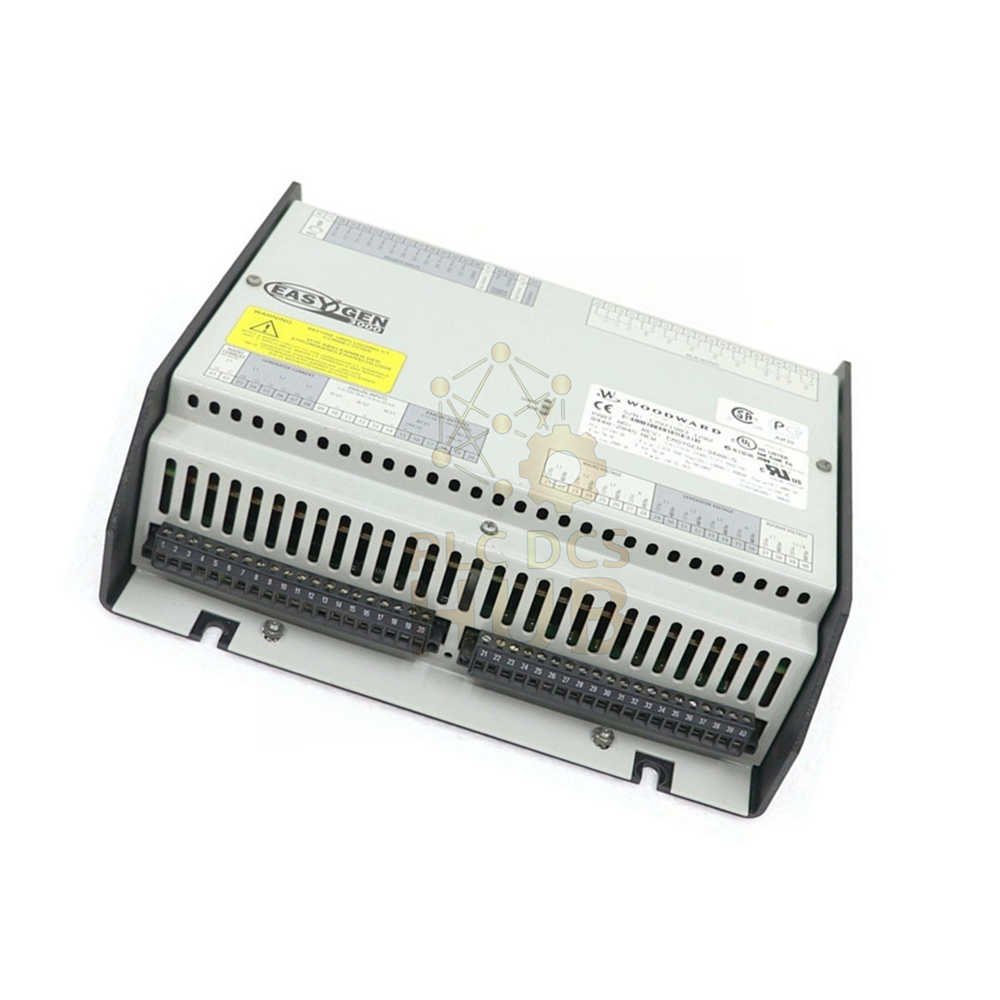

Product Description – Woodward 8440-2045
The Woodward 8440-2045 comes from the easYgen-3000 series. Its alternate part number is easYgen-3400-5 Marine. This unit uses an aluminum housing. It handles severe environments well. It is an affordable single-operation genset control system. You can use it alone as a stand-alone emergency generator.
Key Technical Specifications
- Manufacturer: Woodward
- Model: 8440-2045
- Series: easYgen-3000 / easYgen-3400-5 Marine
- Accuracy Class: 0.5
- Analog Input Resolution: 16 Bit
- Power Supply: 12/24 Vdc (operating range 8 – 40 Vdc)
- Max Power Consumption: 17 watts
- Power Setting Range: 0.5 – 99,999.9 kW / kvar
- Front Panel Size: 282W x 216H x 96D mm
Supported ECU & Engine Protocols
This controller supports many engine ECUs directly:
- MTU ADEC
- Special Scania S6
- CAT ADEM
- Deutz EMR2
- MAN MFR / EDC7 & SaCos
- SISI EEM
- Woodward E3
- Cummins
- Volvo EMS2 & EDC4
Key Features
- Aluminum housing for harsh environments
- Multi-language support (13 languages)
- Remote panel connection ready
- Stand-alone emergency generator mode
- Adjustable vector groups for transformers
- Configurable voltages for easy synchronization
- Expansion boards: Phoenix Contact IL or Woodward IDK 1 series
Supported Languages
- English, German, Spanish, French, Italian
- Portuguese, Japanese, Chinese, Russian, Turkish
- Polish, Slovakian, Finnish, Swedish
Compatibility Note
This marine genset controller works well with Modicon Quantum PLC systems for power management.
Warranty & Shipping
- 12-month warranty from shipment date
- Covers factory defects only
- Shipping: FedEx, UPS, DHL
- Express delivery worldwide
- Tracking provided within 24 hours
What’s in the Box
- Woodward 8440-2045 controller – 1 unit
- Terminal connectors – 1 set
- Quick start guide – 1 copy
- (Cables and software sold separately)
Professional FAQ – Woodward 8440-2045
-
- Q: What makes the Marine version different?
- A: It has an aluminum housing for salt spray and vibration resistance.
-
- Q: Can I run this on 24V only?
- A: Yes. The unit accepts 8 to 40 Vdc, so 12V or 24V both work.
-
- Q: How do I connect to a remote panel?
- A: Use the dedicated remote communication port. Follow the wiring guide in the manual.
-
- Q: What if my engine ECU is not listed?
- A: Contact Woodward support. Some ECUs need a custom CAN profile.
- Q: Can I use this for island mode with two gensets?
- A: Yes. Use master/slave mode with another easYgen-3400 Marine unit.
Buyer’s Guide – Choose the Right easYgen-3400 Marine
- Confirm your engine ECU is on the support list above.
- Check supply voltage: 8-40 Vdc works for most marine battery systems.
- Need multi-language? This unit includes 13 languages.
- For severe marine environments, aluminum housing is required.
- Ask about 12-month warranty before ordering.
- Choose FedEx, UPS, or DHL for fast delivery.
- If you need a local display, the 8440-2045 has no screen. Use remote panel.
Typical Applications
- Marine generator sets (ships, offshore platforms)
- Stand-alone emergency power for harbors
- Remote island power stations
- Industrial genset control with ECU engines
- Harsh environment power generation
