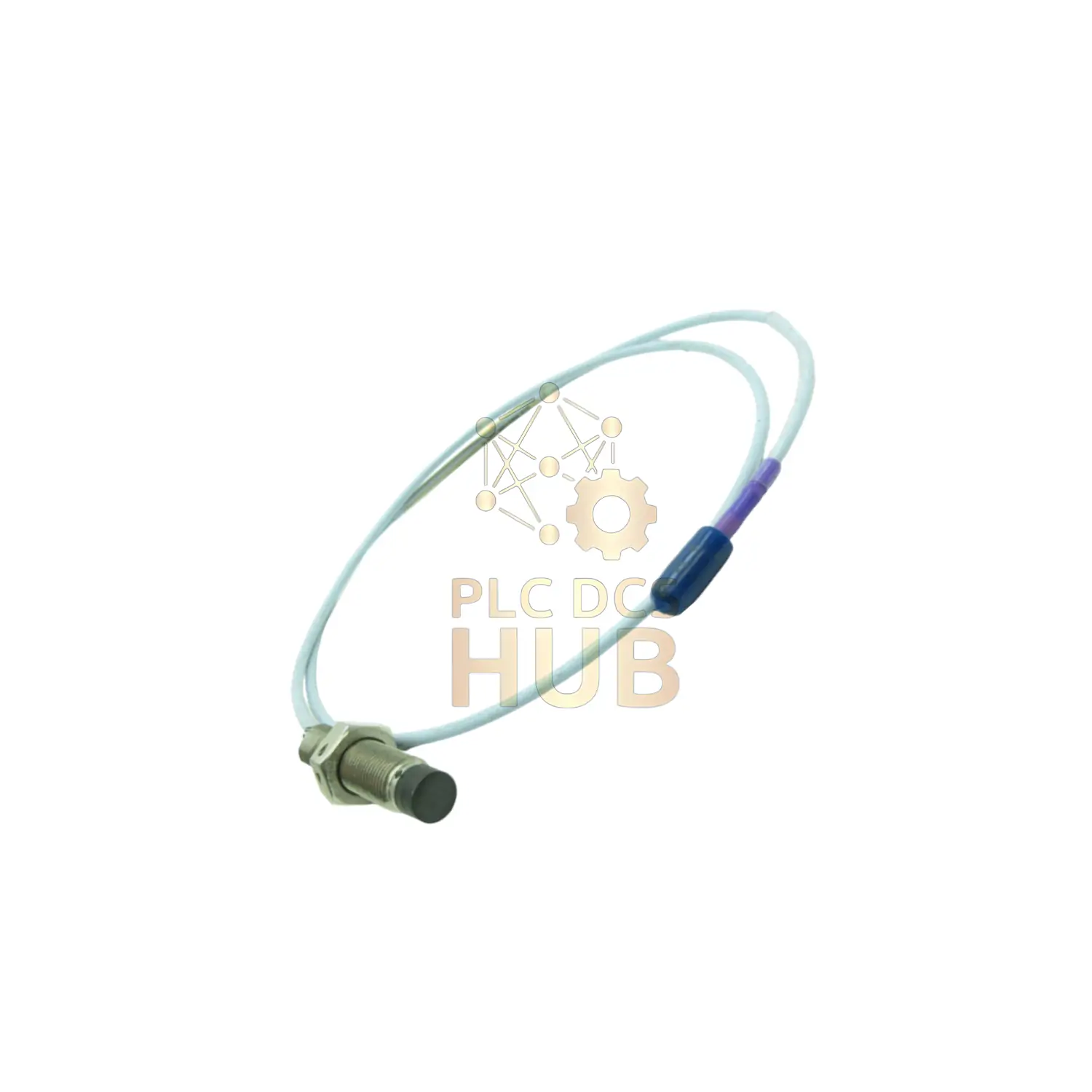

Bently Nevada 5m Armored Proximity Probe
Product Overview
Part Number: 330707-00-20-50-02-00
Heavy-duty 11mm probe with stainless steel armor and 5m cable. Made in USA for tough industrial use.
Part Number Meaning
Each section tells about the probe:
- 330707: 11mm probe with 1/2-20 thread + armor
- 00: No unthreaded section
- 20: 2.0 inch case length
- 50: 5.0 meter cable
- 02: ClickLoc connector
- 00: No special approvals
Key Specifications
Electrical Data
- Cable resistance: 7.2Ω ±0.8Ω
- Cable type: 75Ω triaxial
- For 5m Proximitor Sensors only
Physical Data
- Thread: 1/2-20 UNF
- Max thread use: 0.750 inch
- Case material: Stainless steel
- Weight: 0.17 kg
Environment Data
- Temp range: -51°C to +177°C
- Min safe temp: -34°C
- Bend radius: 25.4 mm min
Installation Notes
- Mount torque: 15.2 N•m max
- Connector torque: Finger tight
- Seal: Viton O-ring
- Pressure test: Available on request
System Compatibility
Works with Bently Nevada 3300 XL systems. Requires 5m Proximitor Sensor.
Certification
Made in USA. Optional Certificate of Origin (COO).
Shipping Details
Sent via FedEx/UPS/DHL. Covered by 12-month maker warranty.
Frequently Asked Questions
Q: Is this probe armored?
A: Yes, stainless steel armor
Q: Cable length options?
A: 1m, 5m or 9m available
Q: Minimum temperature?
A: Do not install below -34°C
Q: Thread size?
A: 1/2-20 UNF
