Allen-Bradley 1746-OV32: 32-Channel DC Sinking Output Module
Powerful & Compact Control

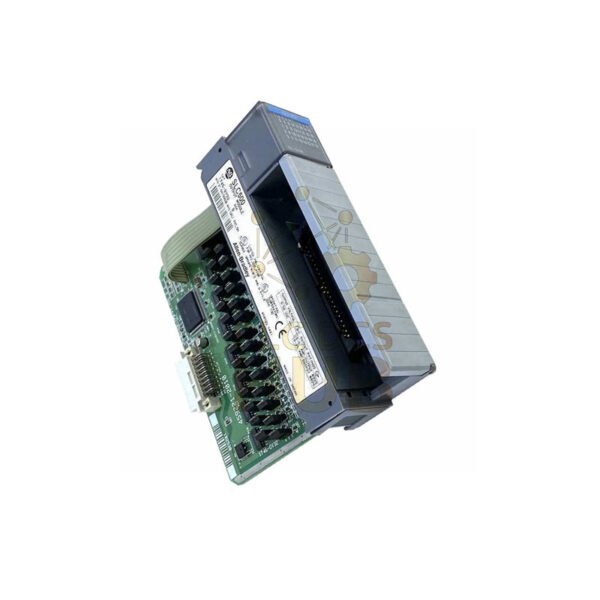

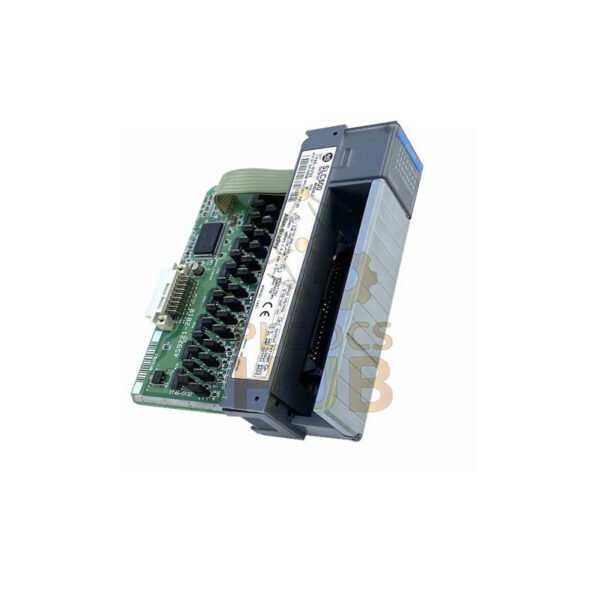

The Allen-Bradley 1746-OV32 packs 32 outputs into one slot. This SLC 500 module controls 24VDC devices with ease. It is a sinking output module for flexible wiring. The 1746-OV32 is perfect for high-density applications.
Detailed Technical Specifications
Brand: Allen-Bradley
Model: 1746-OV32
Type: 32-Point Sinking Output
Voltage Range: 5-50V DC
Nominal Voltage: 24V DC
Current per Point (30°C/60°C): 0.5A / 0.25A
Surge Current: 1.0A for 10ms
Total Module Current: 8A
On Delay: 0.1 ms
Off Delay: 1.0 ms
Backplane Power: 5V DC, 190 mA
Isolation Voltage: 1500V AC
Heat Dissipation: 6.45 W max
Connector: 40-pin female
Our 12 Month Promise
We guarantee this 1746-OV32 module for one full year. If it fails, we fix or replace it. No hassle. We ship quickly worldwide using FedEx, UPS, and DHL.
Get Your Installation Guide
- Learn wiring with the 40-pin connector.
- See how to use DIN rail terminal blocks.
- Understand heat and current limits.
- Find programming examples for 32 points.
Download SLC 500 Hardware Manual Here
Common Technical Questions
- What does “sinking output” mean?
It means the module provides a path to ground. You supply positive voltage to your device. The module completes the circuit to negative. - Does this module have built-in fuses?
No. It does not have internal electronic protection. You must use external fuses to protect each output circuit. - How are the 32 outputs grouped?
They are in two groups of 16. Each group can have its own common connection for wiring flexibility. - Can I use this with a 12V system?
Yes. The wide 5-50V DC range means it works with 12V, 24V, and other DC voltages. - What connector do I need to wire it?
You need a 1746-NC3 connector or a 1492-IFM40xx DIN rail terminal block for easier wiring.
