Description

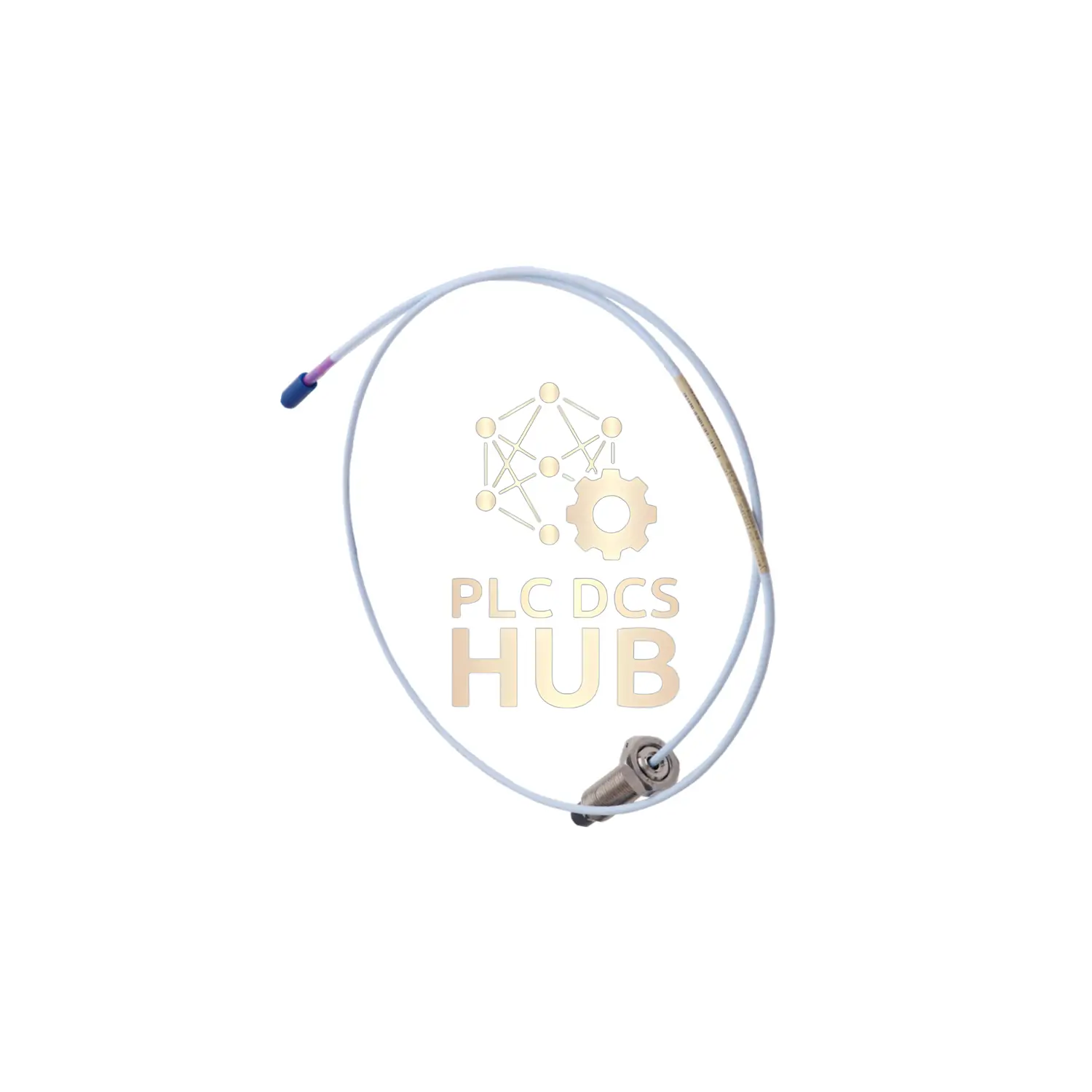

Bently Nevada 3300 XL Proximity Probe: Precision Vibration Monitoring
Monitor critical machinery health with industrial-grade precision. This 11mm proximity probe delivers reliable vibration data in extreme conditions. Made in USA with global certifications.
Key Features & Benefits
- Extreme Temperature Range: Operates from -51°C to +177°C (-60°F to +351°F)
- 9-meter FluidLoc cable with chemical-resistant FEP insulation
- PPS probe tip & 304 SST case for corrosion resistance
- Miniature ClickLoc connector for secure quick installation
- Multiple international agency approvals
Complete Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Proximity Probe
- Full Part No: 330708-00-24-90-12-05
- Suffix Breakdown:
– 00: 0″ unthreaded length
– 24: 2.4″ case length
– 90: 9m (29.5 ft) cable
– 12: Mini ClickLoc connector
– 05: Multiple approvals - Electrical Data:
• Output Signal: 75 Ω triaxial
• Probe Resistance: 8.5 ± 1.1 ohms (9m cable)
• Insulation: Fluoroethylene propylene (FEP) - Mechanical Data:
• Probe Tip: Polyphenylene sulfide (PPS)
• Case: AISI 304 Stainless Steel
• Thread: 5/8-18 UNF
• Min. Bend Radius: 25.4mm (1.0 in)
Installation Guide
- Torque Limits:
– Max: 45.2 N•m (400 in•lb)
– Recommended: 15.2 N•m (133 in•lb) - Max Thread Engagement: 0.938 in (23.8mm)
- Connector Torque: Finger tight + max 0.565 N•m (5 in•lb)
- Warning: Temperatures below -34°C may damage seals
What’s Included
- 3300 XL Probe with 9m cable
- Miniature ClickLoc connector
- Certificate of Origin (COO available)
- 12-month manufacturer warranty
Shipping & Delivery
• Weight: 0.17 kg
• Global shipping via FedEx, UPS, DHL
• Typical dispatch: 24-48 hours
FAQ
Q: Is this probe pressure-rated?
A: Seals handle differential pressure but not pressure-tested by default. Contact for custom testing.
Q: Can I use this in explosive environments?
A: Yes, multiple agency approvals (suffix 05) cover hazardous areas.
Q: What connector type is included?
A: Miniature coaxial ClickLoc with FluidLoc cable (option 12).
Need installation details? Download the full technical manual:
