Description
Overview

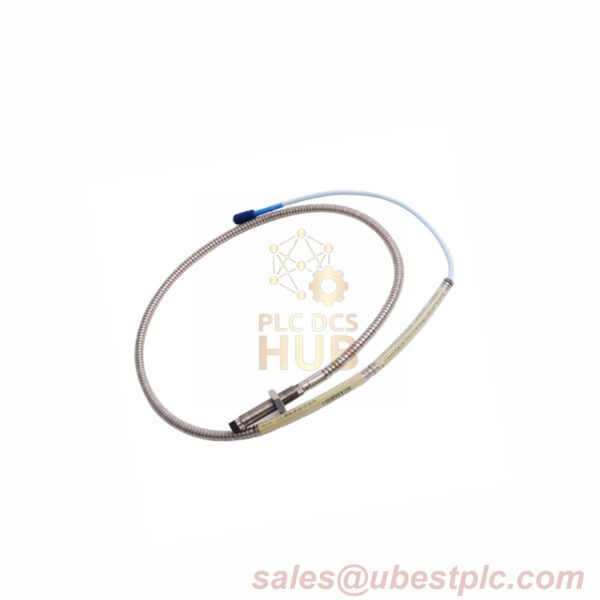

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model 330104-04-10-05-01-00) provides reliable vibration and positional monitoring for industrial applications. Engineered with a 100 mm stainless steel case (AISI 303/304) and a 40 mm unthreaded section, this probe excels in compact installations. Featuring a ClickLoc connector with a protective sleeve and no required agency certifications, it prioritizes flexibility and ease of integration. Designed for stability, the probe operates within a -17.5 Vdc to -26 Vdc range and withstands altitudes up to 2000 meters, ensuring consistent performance in diverse environments.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330104-04-10-05-01-00 |
| Suffix Breakdown | – 04: 40 mm unthreaded length – 10: 100 mm case length – 05: 0.5 m cable – 01: ClickLoc connector with protector – 00: No agency approvals |
| Materials | Case: AISI 303/304 SST Tip: PPS Seal: Viton® O-ring |
| Electrical | Input Voltage: -17.5 to -26 Vdc Current Consumption: 12 mA max Output Noise: <10 mV RMS Signal Bandwidth: 0.1 Hz – 15 kHz (±1 dB) |
| Mechanical | Cable Flexibility: 500+ bend cycles Thread Type: M10 x 1 with armored jacket Maximum Cable Pull Force: 50 N |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
