Product Description

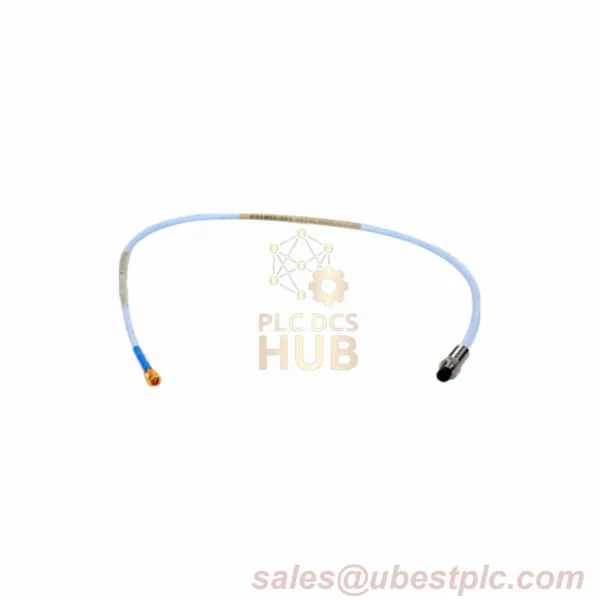

The Bently Nevada 330104-01-08-50-01-CN is a rugged 3300 XL 8 mm Proximity Probe engineered for industrial vibration and position monitoring. Featuring an M10x1 threaded stainless steel case with 10 mm unthreaded length and a Polyphenylene Sulfide (PPS) tip, this probe delivers reliability in extreme conditions. It includes a 5-meter standard cable with a Miniature Coaxial ClickLoc connector and protector, designed exclusively for 5-meter Proximitor sensors. Sealed with a Viton® O-ring, it ensures resistance to pressure differentials.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- Product No.: 330104-01-08-50-01-CN
- (Suffix breakdown: 01=10mm Unthreaded Length, 08=80mm Case Length, 50=5m Cable, 01=ClickLoc Connector with Protector, CN=Country Approval)
- Measurement Range: Optimized for 1.27 mm (50 mils) gap with AISI 4140 steel targets.
- Linearity: ±1.5% of full scale within 0.25–2.5 mm range.
- Frequency Response: 0–10 kHz (±3 dB).
- Output Signal: -24 Vdc power supply; 50 Ω output impedance.
- Operating Voltage: -17.5 Vdc to -26 Vdc (non-incendive), -23 Vdc to -26 Vdc (barrier use).
- Temperature Range: -55°C to +232°C (T1) for EPL Ga/Gc; +120°C continuous at probe tip.
Installation Guidelines
- Mount with M10x1 thread (max torque 15 Nm).
- Ensure cable bending radius ≥50 mm to prevent damage.
Compatibility
- Works exclusively with 5-meter 3300 XL Proximitor sensors.
- Requires AISI 4140 steel targets for calibrated accuracy.
Certifications
- Country-Specific Approval (CN): Complies with local hazardous area standards.
- ATEX/IECEx: Ex ia IIC T1-T5 Ga (Zone 0), Ex ec nA IIC T1-T5 Gc (Zone 2).
Application Examples
- Oil & Gas: Pump shaft alignment monitoring.
- Mining Equipment: Gearbox vibration analysis.
- Steel Manufacturing: Roller bearing health assessment.
Contact Information
For technical support or orders: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
