Description
Overview

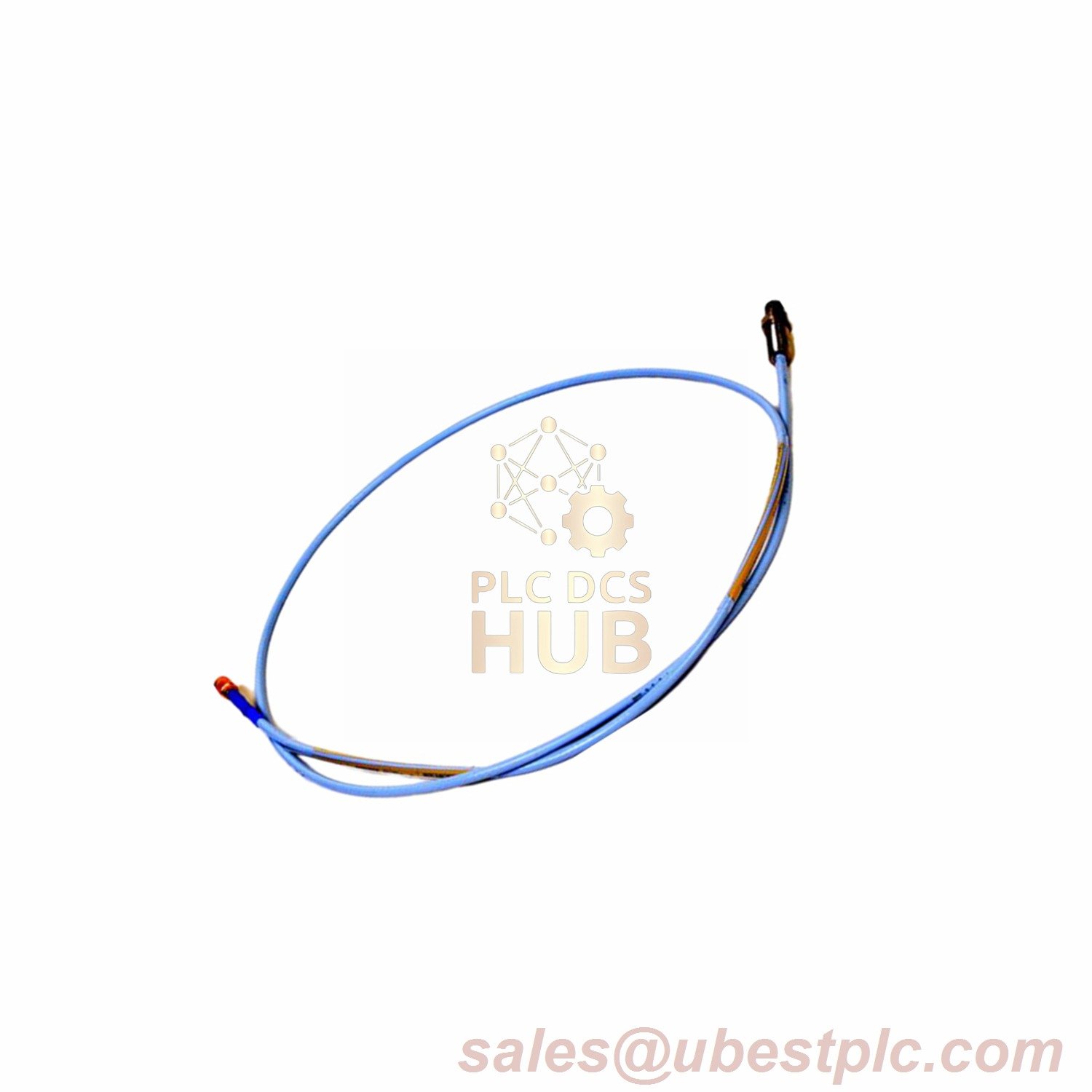

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model 330104-02-08-05-01-00) is engineered for precise vibration and positional monitoring in space-constrained industrial applications. With a compact 80 mm stainless steel case (AISI 303/304) and a 20 mm unthreaded section, this probe excels in installations requiring minimal clearance. The ClickLoc connector with a protective sleeve ensures reliable connectivity, while its lack of agency certifications simplifies deployment in non-regulated environments. Optimized for stability, the probe operates within a -17.5 Vdc to -26 Vdc range and maintains accuracy at altitudes up to 2000 meters, even under harsh operational conditions.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330104-02-08-05-01-00 |
| Suffix Breakdown | – 02: 20 mm unthreaded length – 08: 80 mm case length – 05: 0.5 m cable – 01: ClickLoc connector with protector – 00: No agency approvals |
| Materials | Case: AISI 303/304 SST Tip: PPS Seal: Viton® O-ring |
| Electrical | Input Voltage: -17.5 to -26 Vdc Dielectric Strength: 500 V AC (1 min) Output Linearity: ±0.8% FS Phase Shift: <3° (1–10 kHz) |
| Mechanical | Cable Material: Fluoropolymer-coated Thread Torque: 10 N·m max Impact Resistance: 100 g (6 ms) Radial Shaft Runout Tolerance: ±0.02 mm |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
