Product Overview

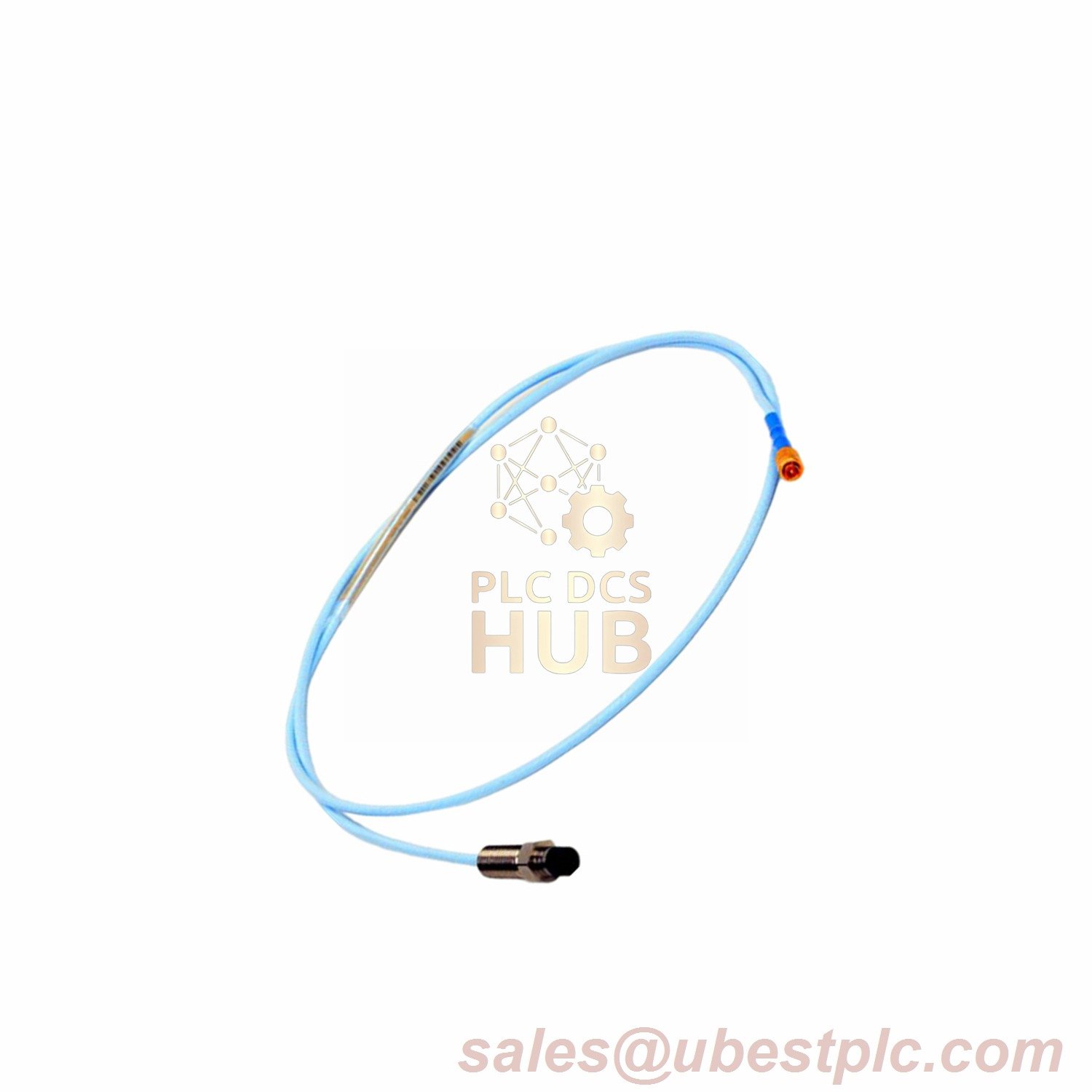

The Bently Nevada 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe is engineered for precision and adaptability in global industrial applications. Featuring an 80 mm fully threaded stainless steel case and a 1.0-meter cable, it excels in installations requiring extended reach and space efficiency. Certified for country-specific compliance, this probe integrates a Viton® O-ring for pressure sealing and a PPS tip for chemical resistance, ensuring reliability in demanding environments.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- 330104-00-08-10-02-CN Suffix Breakdown:
- 00: Fully threaded (0 mm unthreaded length)
- 08: 80 mm overall case length
- 10: 1.0-meter cable (3.3 feet)
- 02: Miniature ClickLoc connector (standard coaxial)
- CN: Country-specific certifications (e.g., CCC, KC, BSMI)
- Electrical:
- DC Resistance: 7.60 ± 0.30 Ω (center to outer conductor)
- Power Range: -25 Vdc to -35 Vdc (-28 Vdc nominal with barriers)
- Output Impedance: 80 Ω
- Sensitivity: <0.5 mV/V (ultra-stable output under voltage shifts)
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
