Product Overview

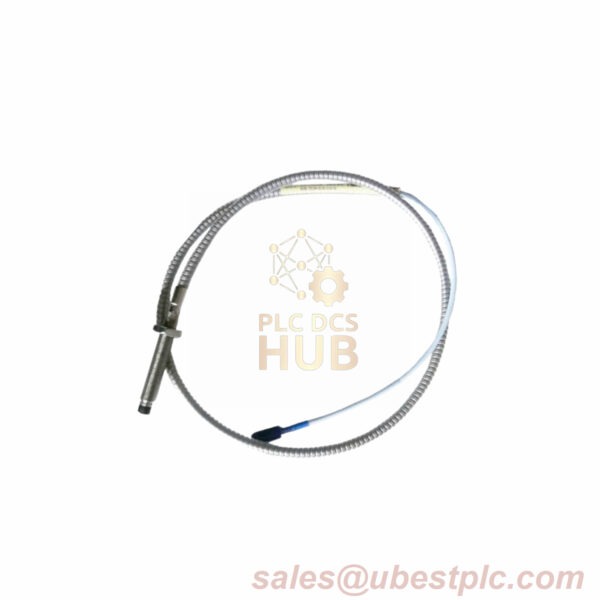

The Bently Nevada 330104-00-13-05-02-00 3300 XL 8 mm Proximity Probe ensures precise machinery health monitoring in demanding industrial environments. Built with a fully threaded M10x1 design and reinforced armor, it guarantees secure installation and resistance to mechanical stress. The Polyphenylene sulfide (PPS) tip and Viton® O-ring sealing enhance reliability in high-vibration or corrosive settings. Ideal for compact spaces, this probe features a streamlined 130 mm case length and a ClickLoc connector for effortless integration.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- 330104-00-13-05-02-00 Suffix Breakdown:
- 00: Fully threaded (0 mm unthreaded)
- 13: 130 mm overall case length
- 05: 0.5-meter cable (1.6 feet)
- 02: Miniature coaxial ClickLoc connector (no protector)
- 00: No agency certifications required
- Electrical:
- DC Resistance: 7.45 ± 0.30 Ω (center to outer conductor)
- Power Supply: -18 Vdc to -28 Vdc (-22 Vdc to -28 Vdc with barriers)
- Output Impedance: 55 Ω
- Sensitivity: <1.8 mV/V (output fluctuation per input change)
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
