Description

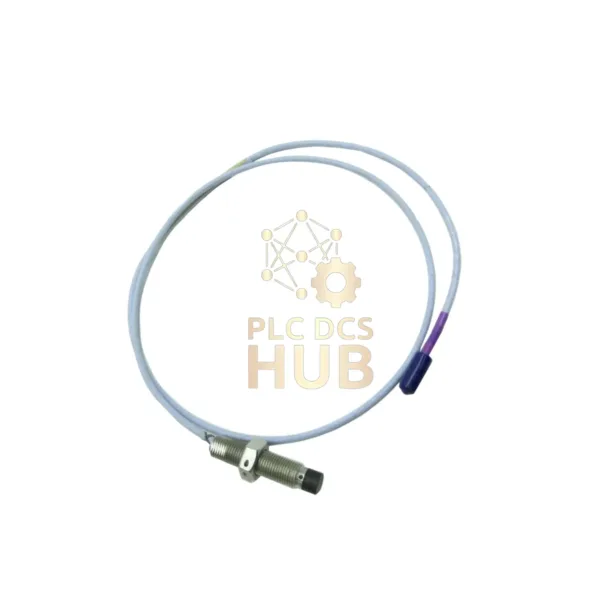

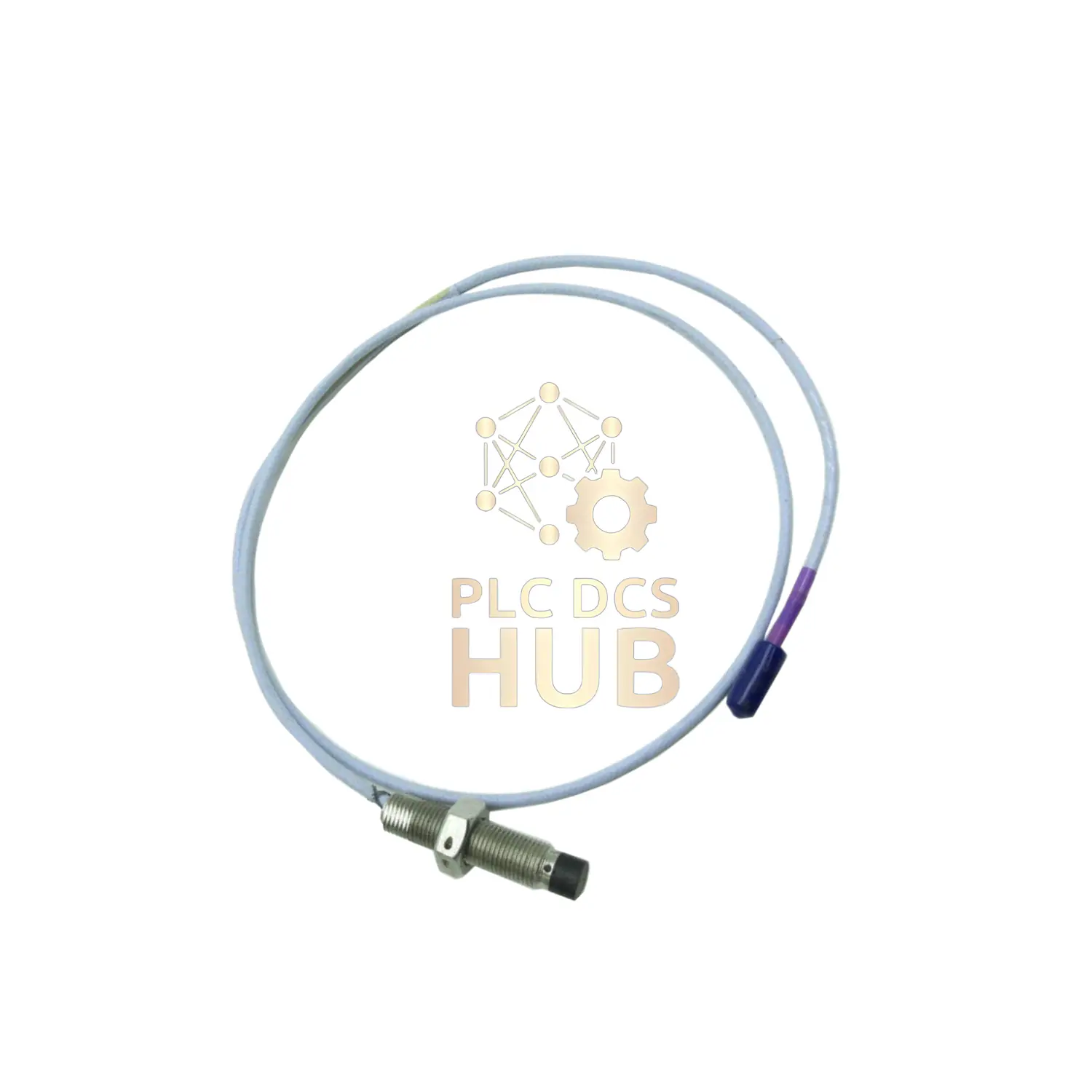

Bently Nevada 3300 XL Probe – 9m Cable with Connector Protector
Product Configuration Details
Full Part Number: 330708-00-24-90-11-05
- Model Base: 330708 (11mm Probe)
- Thread Type: 5/8-18 UNF (no armor)
- Case Length: 24 = 2.4 inches
- Cable Length: 90 = 9.0 meters
- Connector: 11 = ClickLoc with protector
- Certifications: 05 = Multiple approvals
Key Technical Specifications
- Cable Resistance: 8.5Ω ±1.1 at 9m length
- Thread Engagement: 0.938 inch maximum
- Installation Torque: 15.2 N•m (133 in•lb)
- Bend Radius: 25.4mm minimum
- Temperature Range: -51°C to +177°C
- Seal Material: Viton O-ring design
- Conductor Type: 75Ω triaxial cable
- Shipping Weight: 0.17kg
Installation Guidelines
- Apply maximum 15.2 N•m torque during mounting
- Maintain minimum 25.4mm cable bend radius
- Keep storage temperature above -34°C
- Connect using finger-tight force (0.565 N•m max)
- Do not pressure test before installation
Quality & Support
- Manufactured in USA facility
- Optional Certificate of Origin available
- 12-month factory warranty included
Shipping Information
- FedEx International Priority (1-3 days)
- UPS Worldwide Express (2-5 days)
- DHL Express Worldwide (3-6 days)
Frequently Asked Questions
Q: What is the advantage of 9m cable length?
A: Allows remote sensor placement in large industrial equipment.
Q: Does the connector protector offer real benefits?
A: Yes, prevents disconnection in high-vibration environments.
Q: Can this measure small diameter shafts?
A: Minimum 8.9mm diameter when properly calibrated.
Q: Is pressure testing available for this model?
A: Custom testing can be arranged through our design department.
Q: What makes this different from shorter cables?
A: Longer cables require different resistance calibration (8.5Ω vs 5.9Ω).
