330904-00-15-05-11-05 Bently Nevada 3300 NSv Probe

Description

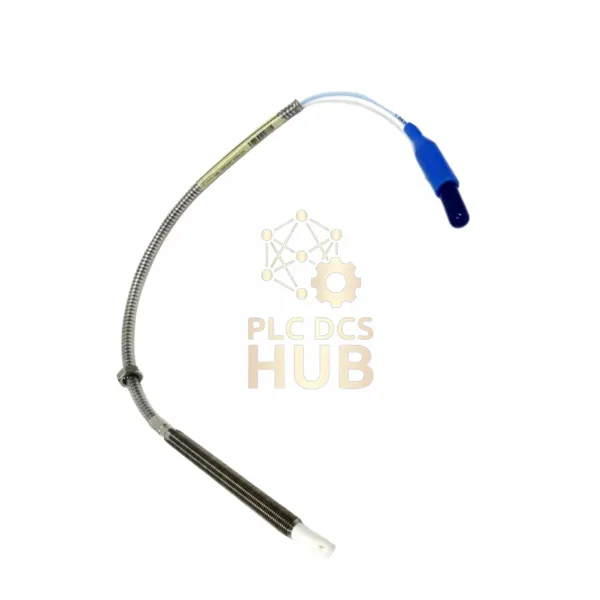

Bently Nevada 3300 NSv Short-Range Proximity Probe

Product Details

New factory-sealed proximity sensor (Part 330904-00-15-05-11-05). Features armored M8X1 thread design with connector protector for extra safety. Direct upgrade for 3300 RAM systems.

Complete Specifications

• Brand: Bently Nevada
• Full Model Code:
  • -00: 0mm unthreaded length
  • -15: 150mm case length
  • -05: 0.5 meter cable
  • -11: ClickLoc connector with protector
  • -05: Multiple safety approvals
• Measurement Range: 0.25mm to 1.75mm
• Accuracy: ±0.06mm deviation
• Electrical Resistance: 4.0Ω ±0.5Ω
• Cable Type: FEP-insulated coaxial

Key Performance Data

• Temperature Limits: -62°F to +351°F operation
• Response Speed: 0-10,000 Hz frequency
• Bend Radius: Minimum 1.0 inch
• Cable Capacitance: 21.3 pF per foot
• Thread Engagement: Max 12mm depth

Setup Instructions

• Set gap to 1.0 mm (0.04 inches)
• Hand-tighten only (5 in-lb max torque)
• Use shielded triad cable for field wiring

Certifications & Approvals

Meets multiple international safety standards (Option 05).

What’s Included

• New probe in original packaging
• 12-month warranty

Global Shipping

Fast delivery via FedEx, UPS, or DHL.

Frequently Asked Questions

Q: What’s different about the -11 connector option?
A: Includes protective cover for the ClickLoc connector

Q: Can this measure shafts under 13mm?
A: Yes, but requires smaller gap setting

Q: Maximum wiring distance?
A: 1000 feet with shielded cable

Q: Pressure rating?
A: Viton seal handles moderate pressure
