Description
Quick Product Insight

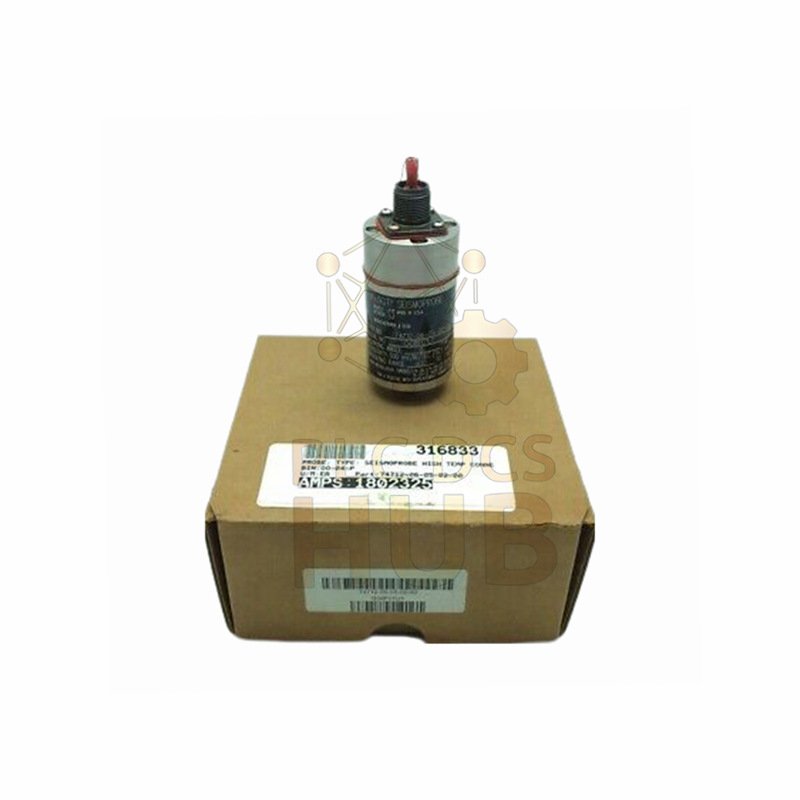

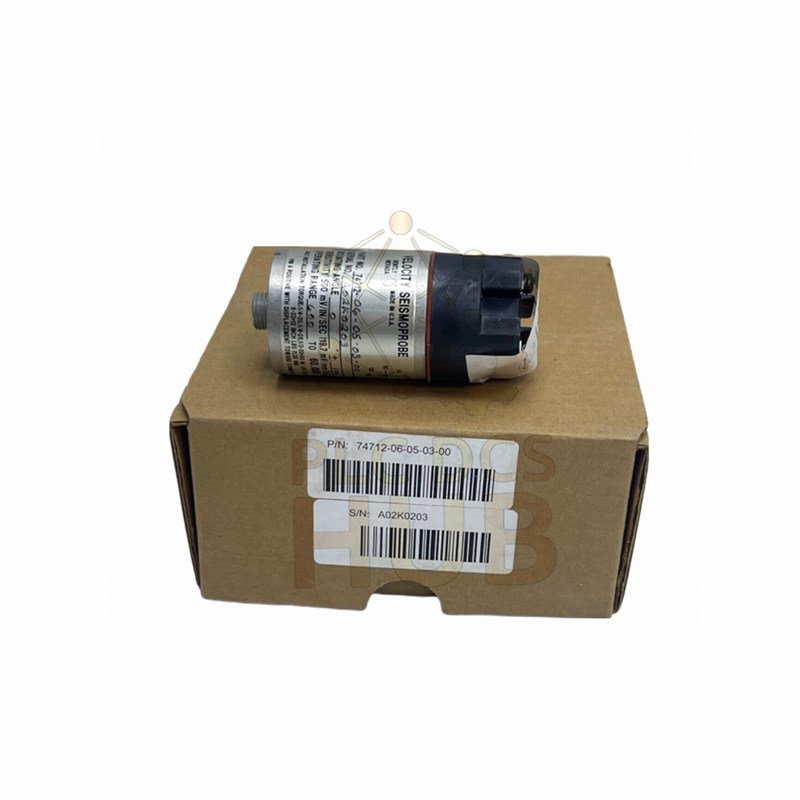

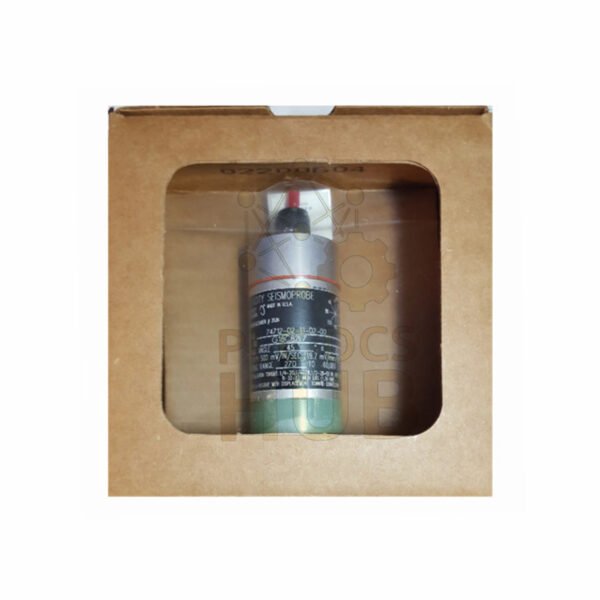

The Bently Nevada
74712-06-05-04-01
belongs to the 74712 high-temperature transducer line.
It delivers clean signals in extreme heat.
It supports long-term machine protection.
And it fits demanding industrial layouts.
Key Value Points
- Certified build option for regulated sites.
- Side-mounted connector saves vertical space.
- Wide angle tolerance suits varied mounting.
- High heat endurance for severe zones.
- Rugged metal body resists vibration.
Configuration Breakdown
- Mounting Angle: 0 ±100 degrees
- Minimum Speed: 10 Hz, 600 cpm
- Stud Size: 1/2 in 20 UNF-3A
- Connector Style: Side mount
- Agency Option: Certified version available
Extended Technical Data
- Brand: Bently Nevada
- Series: 74712 High-Temperature Series
- Model: 74712-06-05-04-01
- Sensor Type: Two-wire transducer
- Origin: U.S.A
- Operating Temperature: -29°C to +204°C
- Storage Temperature: -40°C to +85°C
- Loop Supply: 18 to 32 VDC
- Output Range: 4 to 20 mA
- Frequency Response: 10 Hz to 6 kHz
- Sensitivity: 95 mV/g typical
- Linearity: ±2% full scale
- Noise Level: Less than 1% RMS
- Response Time: Below 15 ms
Physical Profile
- Height: 82 mm standard
- Typical Height: 102 mm
- Diameter: 41 mm
- Housing: Stainless steel
- Weight: Approx. 0.45 kg
Installation Tips
- Use clean threads for secure mounting.
- Check angle range before tightening.
- Route cable away from hot edges.
- Verify loop voltage at the cabinet.
System Fit
- Interfaces with Bently Nevada monitors.
- Supports two-wire vibration inputs.
- Ideal for hot process equipment.
Packaging and Warranty
- Protective industrial packaging.
- One transducer per shipment.
- 12-month warranty included.
- Delivery via FedEx, UPS, or DHL.
Typical Installations
- Gas turbine casings.
- Steam turbine hot zones.
- High-speed compressors.
- Petrochemical rotating assets.
- Heavy-duty process fans.
FAQ
- Why choose a side connector?
- It helps when top clearance is limited.
- Is this model better for higher speeds?
- Yes. It supports higher minimum frequency.
- How do I confirm mounting fit?
- Check stud size and angle option code.
- Does certification matter?
- Yes. Some sites require approved sensors.
- When should I select this version?
- Choose it for hot areas with space limits.
