Description

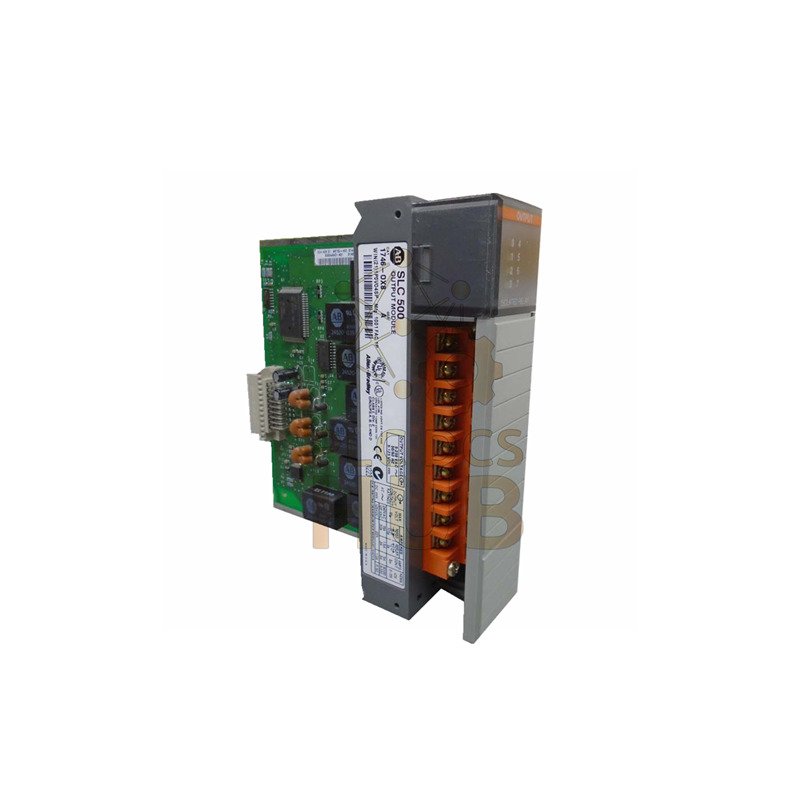

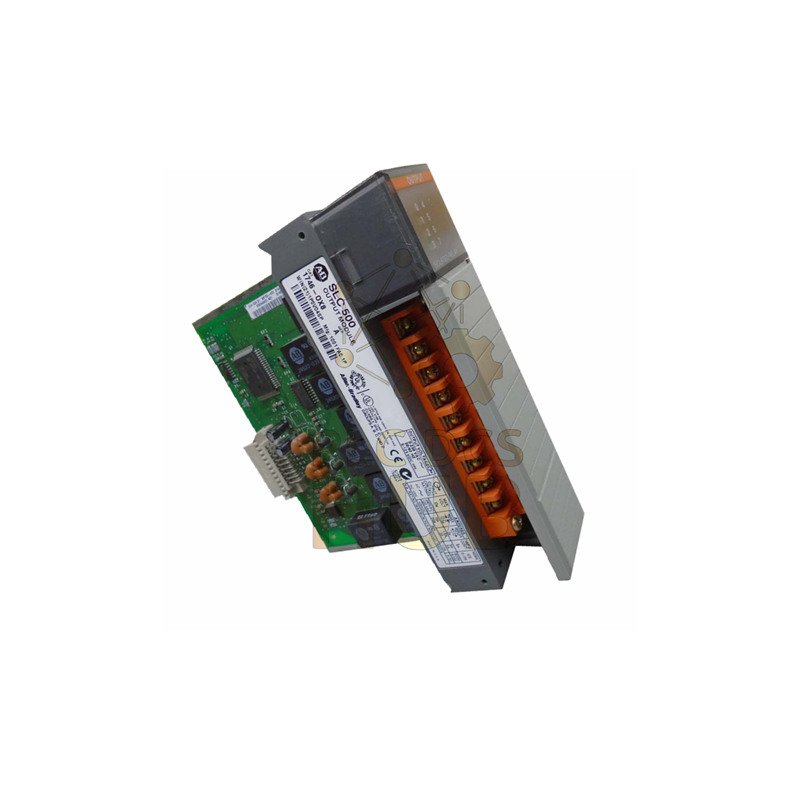

Allen-Bradley 1746-OX8 Isolated Relay Output Module

The Allen-Bradley 1746-OX8 delivers superior isolation for demanding applications. This 8-channel relay module provides individual isolation for each output, handling high-current loads with exceptional reliability. Perfect for applications requiring complete electrical separation between channels.

Key Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1746-OX8 (SLC 500 Series)
• Module Type: Isolated Relay Contact Output
• Number of Outputs: 8 Normally Open Relay Channels
• Isolation: Individual isolation for each output channel
• Voltage Range: 5-265V AC or 5-125V DC
• Contact Rating (120V AC): 3A output, 30A make/break
• Contact Rating (24V DC): 1.2A output
• Maximum Capacity: 3600VA make, 360VA break
• Switching Speed: 10ms ON/OFF delay
• Backplane Current: 85mA @ 5V DC, 90mA @ 24V DC
• Power Dissipation: 8.60W Total
• Isolation Voltage: 1500V between field and logic
• Operating Temperature: 0° to 60° C (32° to 140° F)
• Storage Temperature: -40° to 85° C (-40° to 185° F)
• Operating Shock: 10g rating

Package Contents

• One (1) 1746-OX8 module
• Installation documentation
• All necessary mounting hardware

Shipping Options

• Fast worldwide shipping via FedEx
• Reliable delivery through UPS
• International shipping with DHL
• All items carefully packaged for protection

Warranty Coverage

• 12-month warranty included
• Covers all material and workmanship defects
• Quick support for any issues
• Easy warranty claim process

Frequently Asked Questions

• Q: What does “individually isolated” mean for this module?
  A: Each output channel has complete electrical separation from others, allowing different voltages on each channel.
• Q: Can I use this module for motor starting applications?
  A: Yes, the 30A make/break capacity at 120V AC makes it suitable for motor starting.
• Q: What is the maximum load I can connect to one output?
  A: Each output handles up to 3A at 120V AC or 1.2A at 24V DC continuously.
• Q: Do I need external suppression for inductive loads?
  A: Yes, we recommend external suppression for inductive loads to protect relay contacts.
• Q: How many modules can I install in one chassis?
  A: You can install as many as your chassis has available slots and power capacity.

Download User Manual

• Get complete installation guide
• Find detailed wiring diagrams
• Learn programming examples
• Download here: SLC 500 Hardware Manual
