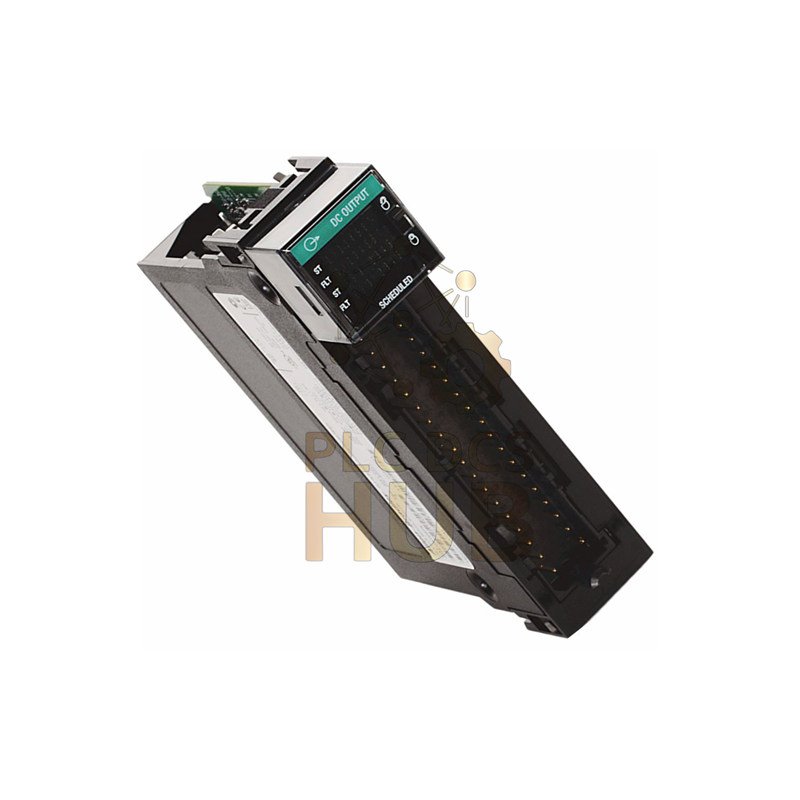

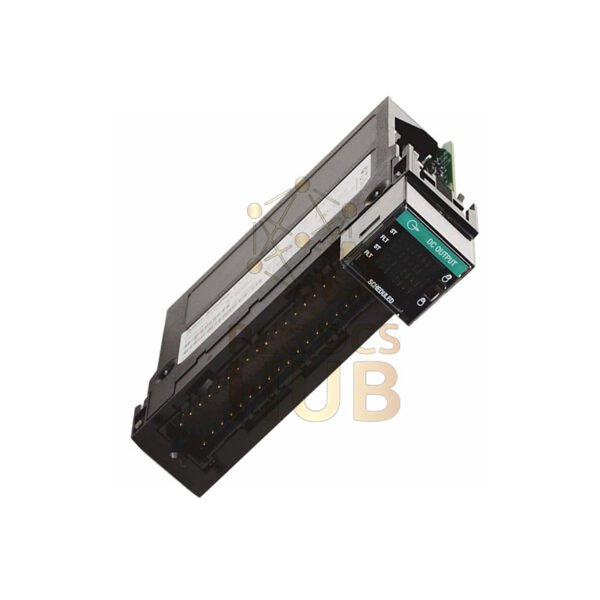

Allen-Bradley 1756-OB16IEF: Super Fast Isolated Output Module
Meet the 1756-OB16IEF, a top-tier ControlLogix output module. It delivers high-speed, isolated outputs for precise peer-to-peer control. Perfect for advanced motion and control tasks. Get 16 outputs in one compact module.
Want all the details? Get the complete specification sheet to see everything this module can do.
- Download the full datasheet here: 1756-ControlLogix-IO-Modules-Specifications.pdf
Technical Specifications: 1756-OB16IEF
Brand & Model: Allen-Bradley 1756-OB16IEF
Type: DC Output Module (16 Points)
Voltage Range: 10 – 30V DC
Current per Point: 2.0A @ 30°C | 1.0A @ 60°C
Total Module Current: 8.0A @ 30°C | 4.0A @ 60°C
Surge Current: 4A for 10ms (per point)
On-State Voltage Drop: 0.2V DC @ 1A
Response Time: Less than 25 microseconds
PWM Cycle Time: 1 ms minimum
Isolation: 250V Continuous
Backplane Power: 5.1V @ 350 mA
Power Dissipation: 3.6 Watts
Frequently Asked Questions
Q: What does ‘electronically fused’ mean?
A: Each output has its own electronic protection. This prevents damage from short circuits.
Q: Can I use this for PWM control?
A: Yes! The 1756-OB16IEF module is designed for PWM applications.
Q: What is the minimum load current?
A: The minimum load current is 1 mA per point.
Q: How do I set the fault mode?
A: You can configure the fault mode (Hold, Last State, On, Off) and its duration in the software.
Q: Is this module isolated?
A: Yes, it offers 250V of continuous isolation for safety and noise reduction.
