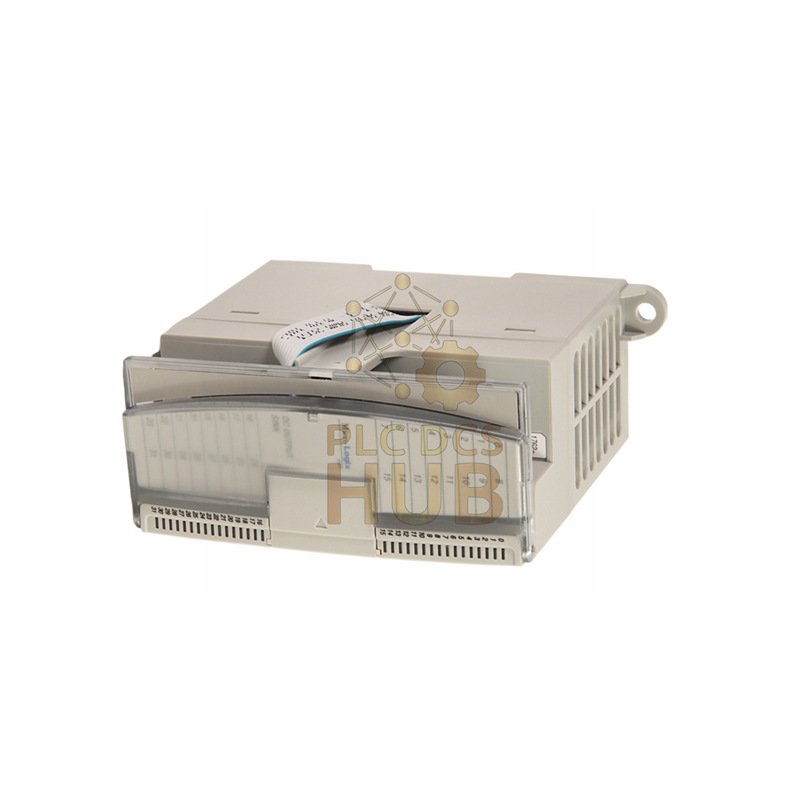

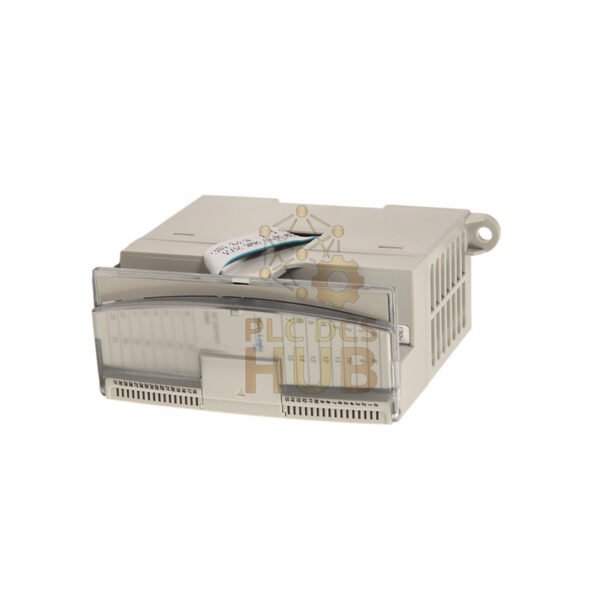

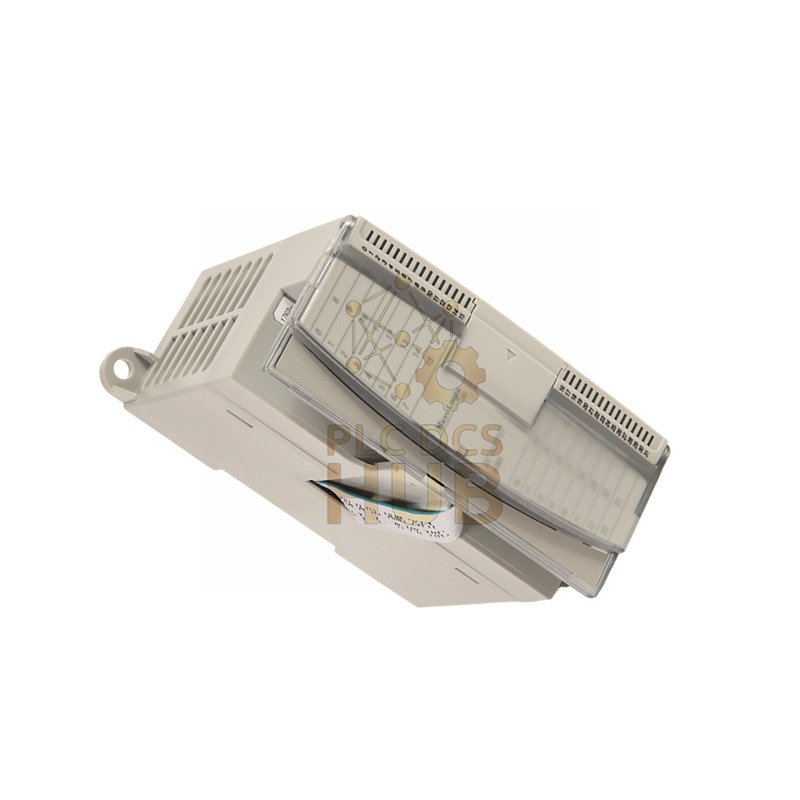

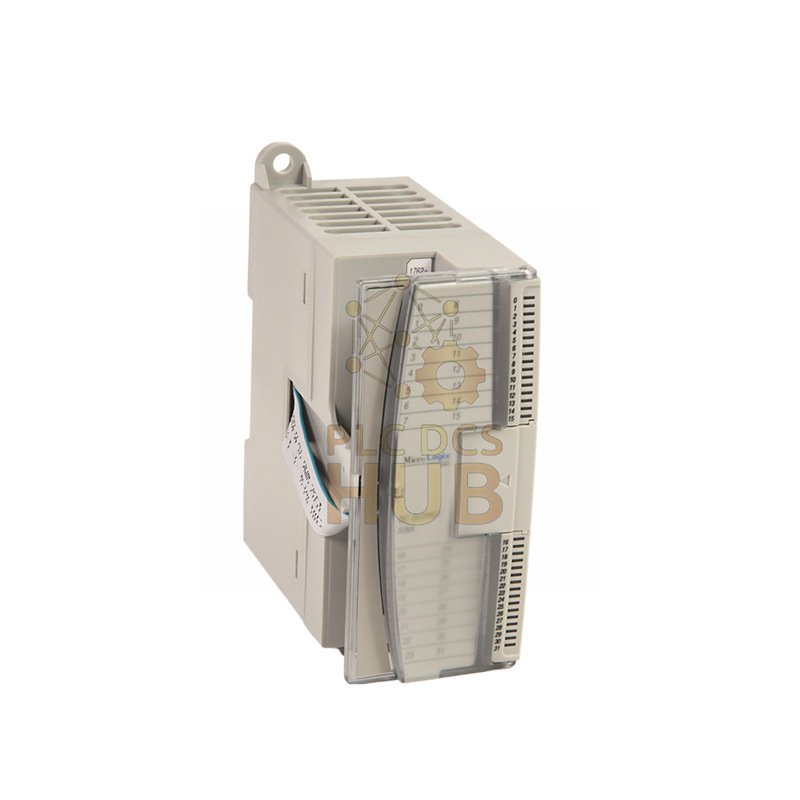

Allen-Bradley 1762-OW16: 16-Channel Relay Output Module
This powerful relay output module adds flexibility to your MicroLogix system. The 1762-OW16 handles both AC and DC loads with ease. Perfect for controlling motors, lights, and industrial devices.
- 16 relay outputs for maximum switching
- AC and DC compatible for versatile applications
- Works with MicroLogix 1100, 1200, 1400 controllers
- Robust design for industrial environments
Technical Specifications
| Brand | Allen-Bradley |
| Model | 1762-OW16 |
| Series | MicroLogix 1762 |
| Module Type | 16-Channel Relay Output |
| Output Channels | 16 relay contacts |
| Voltage Range (AC) | 5-265V AC |
| Voltage Range (DC) | 5-125V DC |
| Current per Point | 2.5A continuous |
| Current per Common | 8A continuous |
| Total Module Current | 16A continuous |
| Switching Delay | 10 ms |
| Isolated Groups | 2 groups (8 points each) |
| Power Consumption | 140 mA @ 5V DC, 180 mA @ 24V DC |
| Heat Dissipation | 6.1 Watts |
| Weight | 0.63 pounds |
| Dimensions | 90 x 40.4 x 87 mm |
| Enclosure Rating | IP20 |
Warranty & Shipping
We provide a 12-month warranty. Ships worldwide via FedEx, UPS, or DHL.
Frequently Asked Questions
- What types of loads can this module control?
It can control both AC (5-265V) and DC (5-125V) loads including motors, lights, and solenoids. - How are the outputs grouped?
Outputs are divided into 2 isolated groups of 8 points each for flexible wiring. - What is the maximum current per output?
Each output can handle 2.5A continuous current. - Do I need surge protection?
Yes, surge suppressors are recommended for inductive loads to extend relay life. - How many modules can I connect?
Up to 4 with MicroLogix 1100, 6 with MicroLogix 1200, and 7 with MicroLogix 1500.
