Bently Nevada 330102-22-58-10-02-00 3300 XL 8 mm Probe | PPS Tip

Description

Product Introduction

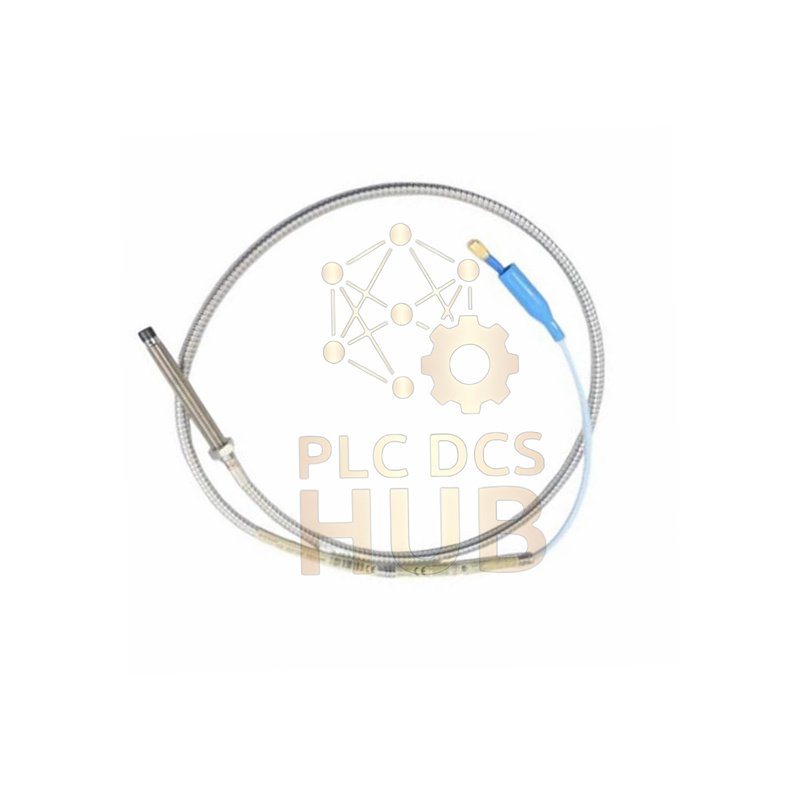

• Bently Nevada 330102-22-58-10-02-00 is a 3300 XL 8 mm Proximity Probe.
• It measures radial vibration and position in rotating machinery.
• This probe uses a Polyphenylene sulfide (PPS) tip for durability.
• The case is AISI 303 or 304 stainless steel (SST).
• It includes 3/8-24 UNF thread with armor for tough environments.
• For 11 mm Proximity Probes, check our 3300 XL 11 mm Proximity Probes.

Technical Specifications

• Brand: Bently Nevada.
• Model Number: 330102-22-58-10-02-00.
• Probe Type: 3300 XL 8 mm Proximity Probe.
• Unthreaded Length: 2.2 inches (Option 22).
• Overall Case Length: 5.8 inches (Option 58).
• Total Length: 1.0 meter (3.3 feet, Option 10).
• Connector: Miniature coaxial ClickLoc (Option 02).
• Linear Range: 2 mm (80 mils) from 0.25 to 2.3 mm.
• Recommended Gap (Radial Vibration): -9 Vdc (~1.27 mm / 50 mils).
• Probe DC Resistance (1.0m): 7.59 ± 0.50 Ω.
• Field Wiring Length: Max 305 meters (1000 feet) to sensor.
• Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG).
• Linear Output Voltage: Approximately -1 to -17 Vdc.
• Thread Size: 3/8-24 UNF.
• Max Thread Engagement: 0.563 inch.
• Probe Weight: 323 g/m (11.4 oz).

Environmental & Temperature Ratings

• Standard Temp Range: -52°C to +177°C (-62°F to +350°F).
• Extended Temp Tip Range: -52°C to +218°C (-62°F to +425°F).
• Extended Cable/Connector Range: -51°C to +260°C (-60°F to +500°F).
• Pressure Seal Limit: Avoid below -34°C (-30°F) to prevent seal failure.
• Humidity Tolerance: <3% scale factor change at 93% humidity (56 days, IEC 68-2-3).

Certifications & Safety

• Intrinsic Safety (ia): Class I, Zone 0 AEx/Ex ia IIC T5…T1 Ga.
• Non-incendive (nA/ec): Class I, Zone 2 AEx/Ex nA IIC T5…T1 Gc.
• Divisions: Class I, Div 2; Class II, III for E, F, G.
• Agency Approval Option: 00 = Not required.
• Seal Material: Viton O-ring for differential pressure.

Installation & Compatibility

• Use 3-conductor shielded triad cable for field wiring.
• Works with 3300 XL Proximitor Sensor and monitors.
• Check frequency response rolloff for long cables (Figures 10, 12).
• No pressure test before shipping. Contact custom design if needed.
• Compatible with intrinsic safety zener barriers (drawing 141092).
• Also works with galvanic isolators or non-incendive circuits (drawing 140979).

Maintenance & Serviceability

• No special tools required for setup.
• Use standard gap setting (-9 Vdc) for radial vibration.
• Probe resists humidity and wide temperature shifts.
• Inspect O-ring seal if exposed to extreme cold.

Typical Applications & Diagnostics

• Monitor compressors, turbines, pumps, and fans.
• Detect shaft vibration, runout, and bearing wear.
• Provide 2 mm linear range for precise diagnostics.
• Diagnose misalignment or unbalance in real time.

Package List & Warranty

• 1 x 3300 XL 8 mm Probe (330102-22-58-10-02-00).
• Warranty: 12 months from purchase date.
• Fast shipping via FedEx, UPS, or DHL.

FAQ – Frequently Asked Questions

• What is the linear range?

  2 mm (80 mils) from 0.25 mm to 2.3 mm gap.

• What is the recommended gap setting?

  -9 Vdc, about 1.27 mm (50 mils) from target.

• Can I use this probe in high humidity?

  Yes. It passes 93% humidity test for 56 days.

• What happens below -34°C?

  The pressure seal may fail early. Avoid extreme cold.

• Do you test pressure seals before shipping?

  No. Contact custom design for a pressure test.

• What cable type is best for field wiring?

  Use 3-conductor shielded triad cable, 16-24 AWG, tinned.

• Is this probe intrinsically safe?

  Yes, with zener barriers (Class I, Zone 0, Ex ia IIC).

• What is the maximum field wiring length?

  305 meters (1000 feet) to the Proximitor sensor.

Experience-Based Tips

• For cold environments below -30°F, use extended temperature range probes.
• Always verify thread engagement below 0.563 inch to avoid damage.
• Use a ClickLoc connector for secure, fast installation.
• If you see signal noise, shorten field wiring or use better shielding.

Buying Guide – How to Select Correctly

• Match unthreaded length (22) to your mounting hole depth.
• Choose total length (10 = 1m) based on distance to Proximitor.
• Select connector (02 = ClickLoc) for easy locking.
• Pick agency approval (00) if no certification needed.
• For temperatures above +177°C, order extended range option.
• Need metric thread or longer range? See 11 mm probe series.
