Description

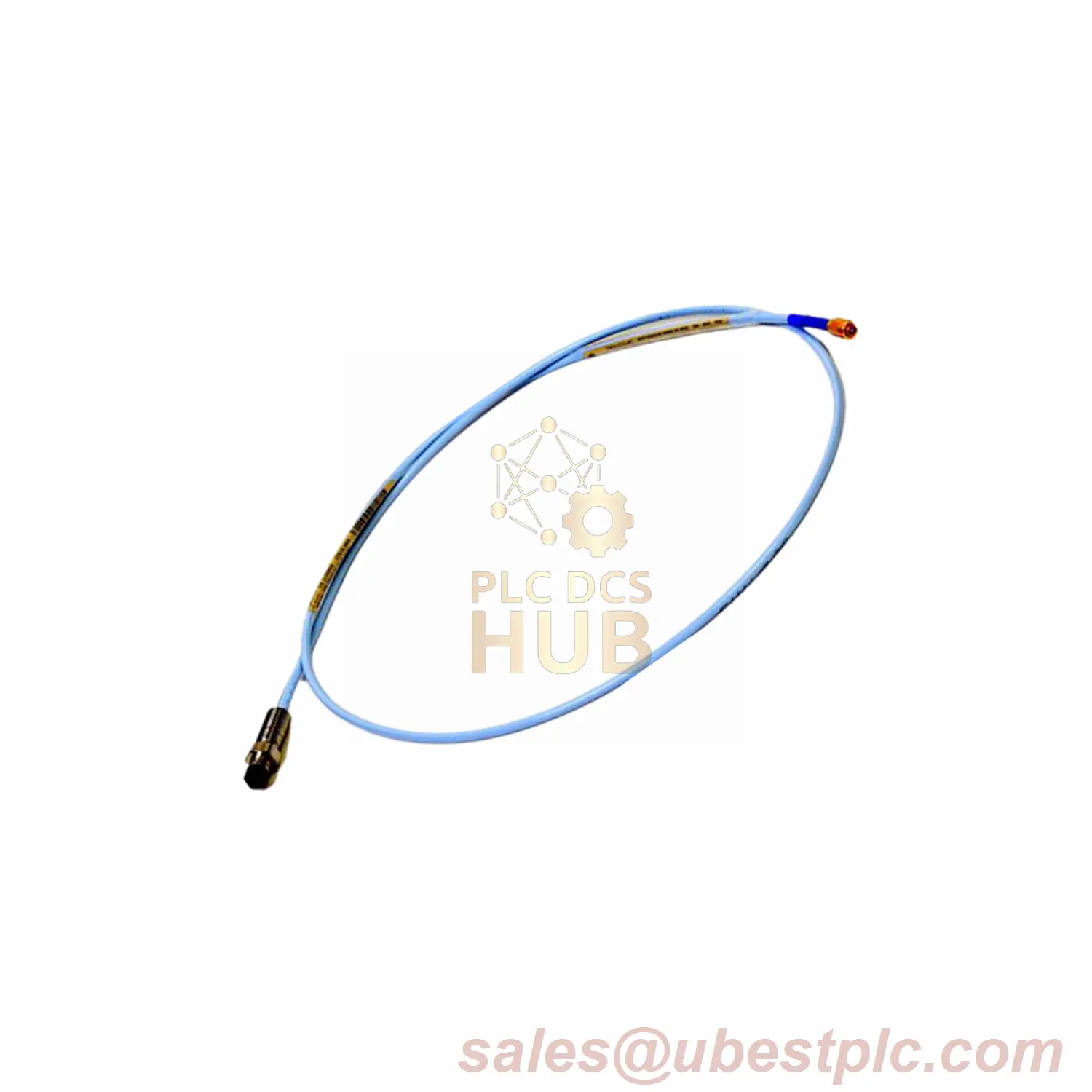

Bently Nevada 3300 XL 8 mm Proximity Probe
Premium non-contact vibration and displacement monitoring for industrial machinery. Designed with 8 mm sensing technology, 330104-00-08-50-02-00 ensures precise measurement in harsh environments.
Key Technical Data
- Brand: Bently Nevada
- Model: 330104-00-08-50-02-00
- Suffix Breakdown:
- 00 (Unthreaded Length), 08 (80mm Case), 50 (5.0m Cable), 02 (Miniature Coaxial Connector), 00 (No Agency Approval)
- Measurement Range: Optimized for 1.27 mm (50 mils) gap with AISI 4140 steel targets.
- Accuracy: ±0.50 Ω DC resistance tolerance.
- Output Signal: Linear voltage via 50 Ω resistance output.
- Operating Temperature: -55°C to +232°C (Probe), +18°C to +27°C (System).
- Probe Resistance: 8.73 ±0.50 Ω (5.0m cable).
- Materials: PPS tip, AISI 303/304 stainless steel case, Viton® O-ring seal.
Installation & Compatibility
- Mounting: M10 x 1 thread with 80mm unthreaded case length.
- Sealing: Withstands differential pressure via Viton® O-ring.
- Compatibility: Requires 5-meter 3300 XL Proximitor sensor; not interchangeable with other cable lengths.
Certifications
- ATEX/IECEx: Class I Zone 0 (AEx/Ex ia IIC T1-T5), Zone 2 (AEx/Ex nA/ec IIC T1-T5).
- Hazardous Areas: Groups A-G compliant.
Typical Applications
- Case Study: Turbine shaft displacement monitoring in power plants.
- Use Cases: Compressors, pumps, generators requiring intrinsically safe vibration analysis.
Contact: For technical queries or pricing, email sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
