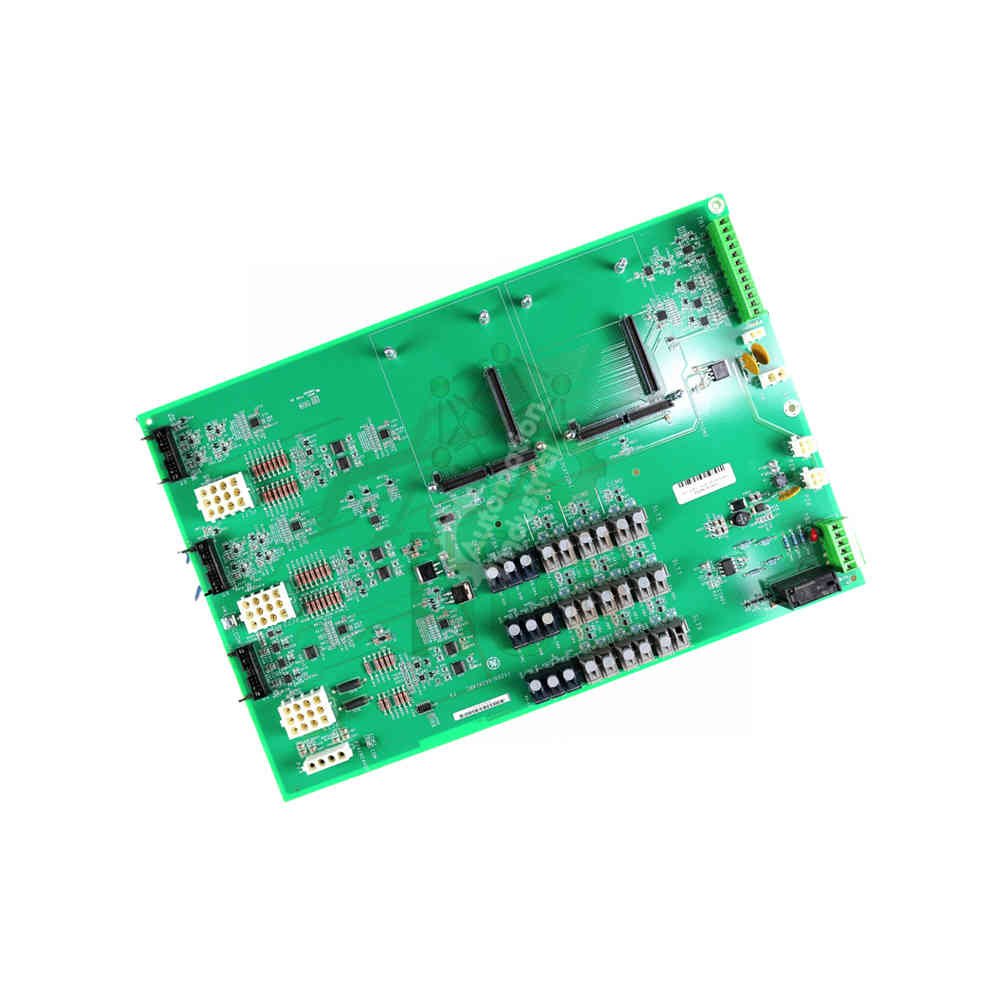

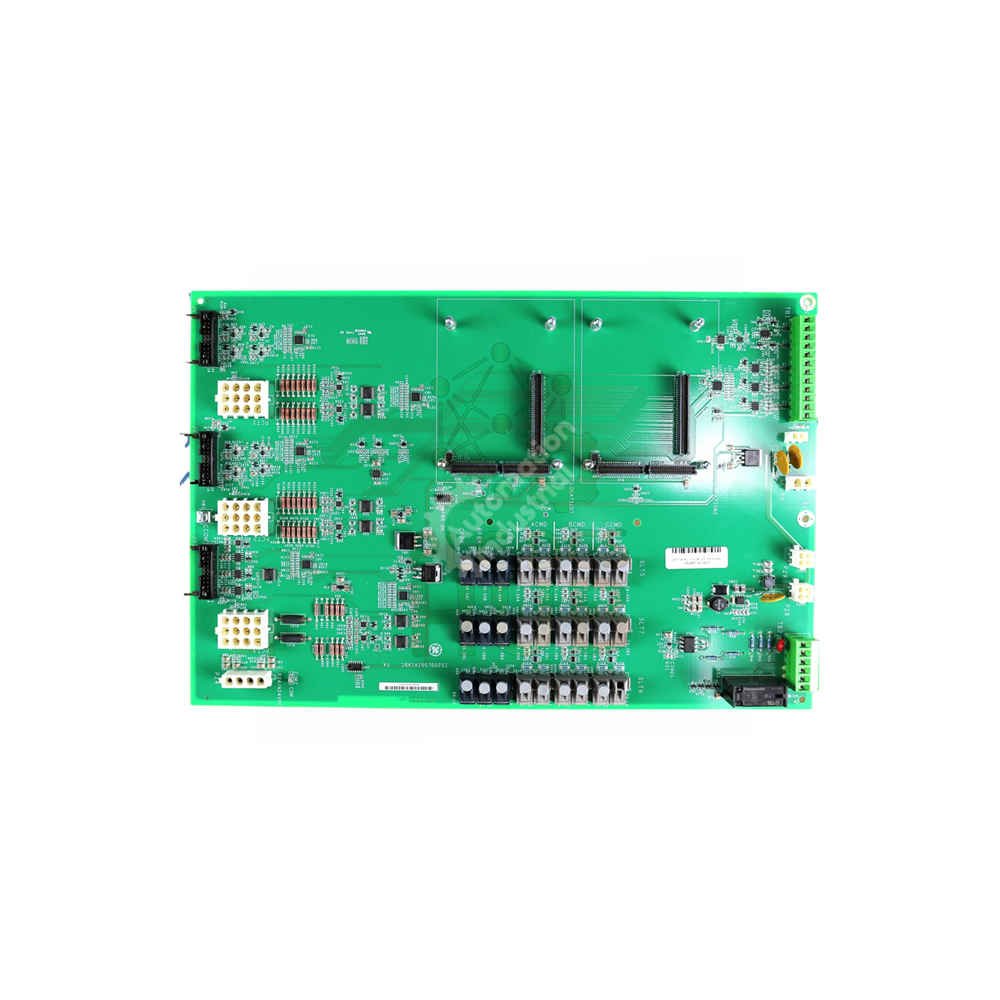

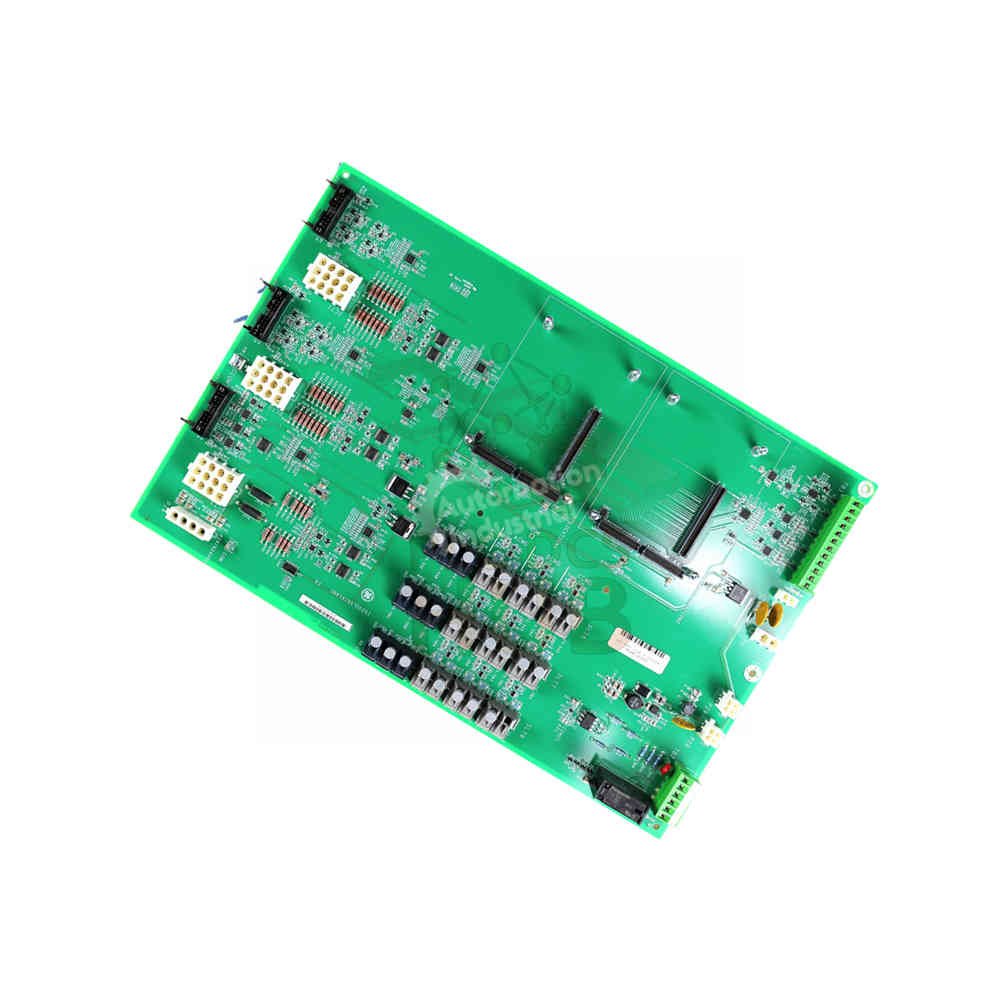

GE IS200LSGIH1A EX2100e Static Starter Gating Interface Card

Description

Product Overview

The General Electric IS200LSGIH1A is a Static Starter Control Gating Interface for the EX2100e excitation system. It connects the UCSB controller to power conversion bridges. Its main job is to provide instantaneous overcurrent protection without needing the controller. During a fault, it opens the 52SS relay to cut power and protect your system.

This board works with three FGPA boards to control six thyristors on each bridge. It receives 28V DC from the main supply and distributes power to the UCSB, LSTB board, and 8-port switch. The IS200LSGIH1A also passes ±24V DC to the FCSA board to power LEMs. A copper wire connects to a 12-pin plug for signal transfer between the FCSA and LSGI.

Use the GEH-6373 Load Commutated Inverter User’s Manual for installation and daughterboard setup.

Technical Specifications

• Brand: General Electric (GE)
• Model Number: IS200LSGIH1A
• Series: EX2100e
• Function: Static Starter Control Gating Interface
• Input Voltage: 28 V DC
• Power Transfer: ±24 V DC from main supply to FCSA board
• Communication: Works with 3 FGPA boards
• Seismic Rating: Zone 4 per Section 2312
• Country of Origin: USA (Salem, VA)
• Product Type: PCB
• Manual Reference: GEH-6373

Key Performance Features

• Overcurrent Protection: Opens 52SS relay in <10ms to safeguard bridges.
• Measurement Range: Analog outputs from 0 to 10 V.
• Frequency Response: High-speed sampling for precise SCR control.
• Resolution: Advanced algorithms for digital variable generation.
• Temperature Range: Designed for industrial control cabinets (0 to 60°C).
• Environmental Tolerance: Withstands typical power plant humidity and vibration.
• Noise Immunity: Robust design resists EMI from power bridges.

Installation & Mechanical Data

• Mounting: Uses four standoffs per section for daughterboards.
• Connectors: Three vertical pin connectors with locking clips.
• Augat Connectors: Four rear connectors hold ICs, diodes, resistors, capacitors.
• Wiring: 12-pin plug for FCSA signal using copper wire.
• Clearance: Allow space for daughterboard attachments.
• Tools needed: Standard screwdriver and anti-static wrist strap.

Debugging & Maintenance Ease

• LED indicators: Not specified but typical GE boards show power and fault status.
• Diagnostic data: LSGI receives SCR voltage from FHVA card via FGPA.
• Software tool: Use ToolboxST for EX2100e control software setup.
• Component editor: Control blocks show signal flow for easy tuning.
• Preventive care: Check 12-pin plug and vertical connectors annually.
• Firmware updates: Managed through UCSB controller via ToolboxST.

Compatibility

• Works with: UCSB controller, FCSA board, FHVA card, LSTB board, 8-port switch.
• FPGA boards: Three FGPA boards for thyristor control.
• Software: EX2100e control software loaded via ToolboxST.
• Daughterboards: Attach to standoffs for extra I/O functions.
• System options: Redundant Control with Simplex Bridge or EX2100e Control WBU.
• Probes compatibility: Use with 3300 XL 11 mm Proximity Probes for speed sensing.

Certifications & Standards

• Seismic certification: Zone 4 per IBC 2312.
• Quality standard: Manufactured in GE’s Salem, VA facility (USA).
• Safety: Overcurrent protection meets GE internal specs.
• Environmental: Designed for industrial power plants.

Packaging & Delivery

• Packaging: Anti-static bag with foam padding in a cardboard box.
• Warranty: 12-month warranty against defects.
• Shipping carriers: FedEx, UPS, DHL express services.
• Delivery time: Typically 3-7 business days worldwide.
• Invoice: Digital invoice sent via email.

Typical Applications

• Static starter for synchronous motors and generators.
• EX2100e excitation control retrofits for steam, gas, or hydro turbines.
• Bridge protection in power conversion systems.
• Redundant control setups with N+1 bridge redundancy.
• Industrial automation requiring precise speed regulation.

Diagnostic Capabilities

• Real-time SCR monitoring: FGPA collects voltage data from FHVA card.
• Overcurrent detection: Independent circuit opens 52SS without delay.
• Signal health: ±24V DC power transfer confirms FCSA communication.
• Transfer status: Bidirectional bumpless transfer for redundant bridges.
• Alerts: System flags open fuses or misoperation before forced outage.

FAQ – Frequently Asked Questions

What is the main function of IS200LSGIH1A?
It provides overcurrent protection and gating interface between UCSB and power bridges.

What voltage does this board need?
It needs 28V DC from the main power supply.

Can I use it without daughterboards?
Yes. The board works stand-alone but supports daughterboards for more I/O.

How do I know if the board is faulty?
Check the 12-pin plug voltage (±24V DC). Also monitor SCR data from FGPA.

Which manual covers installation?
Use GEH-6373 Load Commutated Inverter User’s Manual.

How fast does overcurrent protection work?
It opens the 52SS relay immediately, independent of controller scan time.

经验性问答: What fails often on this board?
Most issues come from loose 12-pin copper wire or damaged Augat connector pins. Always secure locking clips.

选购指导: Which redundancy option fits my budget?
Choose Redundant Control, Simplex Bridge for low cost and higher MTBFO. Pick EX2100e Control WBU if you need N+1 power bridge redundancy without a second PCM.

选购指导: Do I need the FHVA card?
Yes for full SCR voltage monitoring. The LSGI receives data from FGPA which gets it from FHVA.

Can I ship this board internationally?
Yes. We use FedEx, UPS, DHL with tracking and insurance.

What is the warranty period?
12 months from invoice date covering manufacturing defects.
