Description
Overview

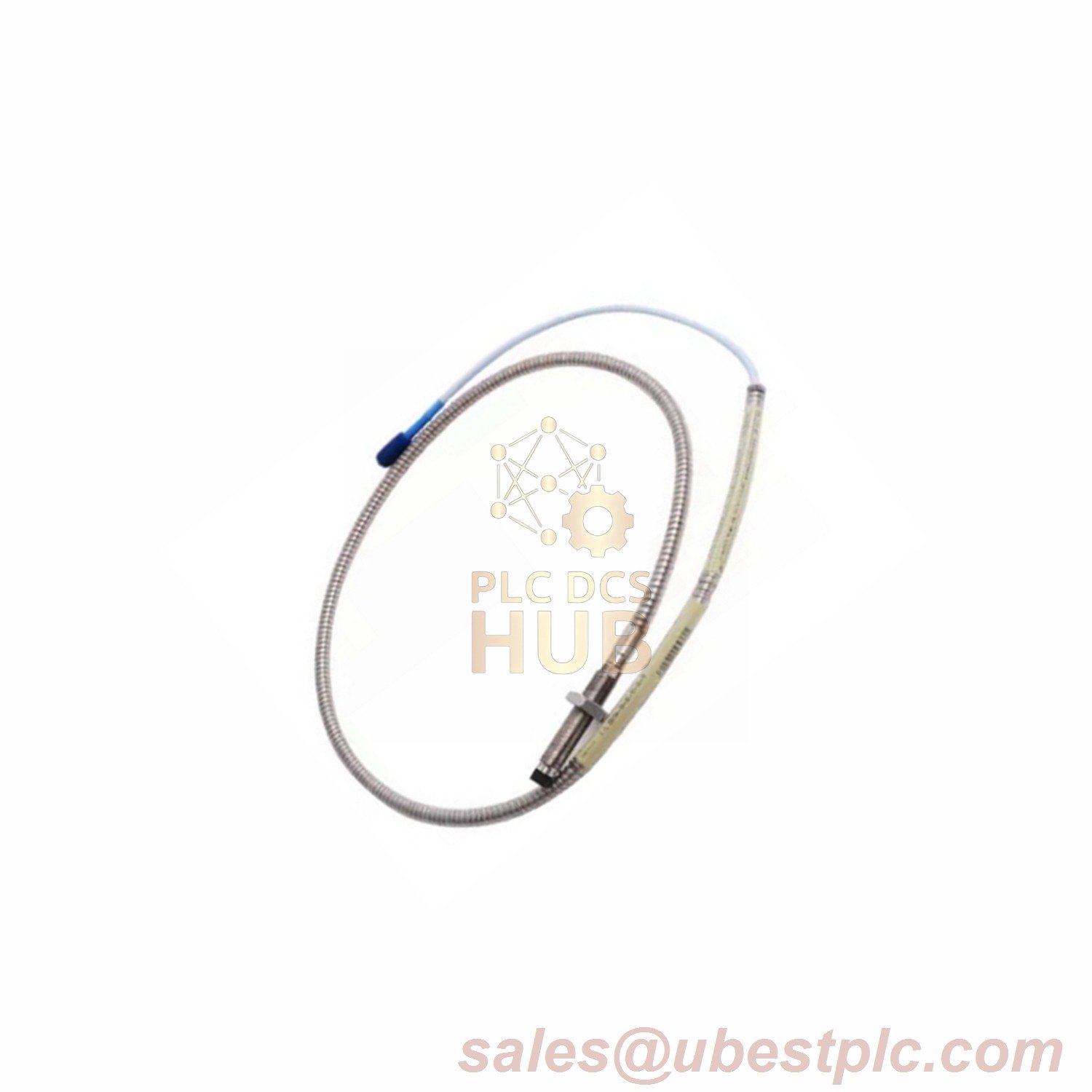

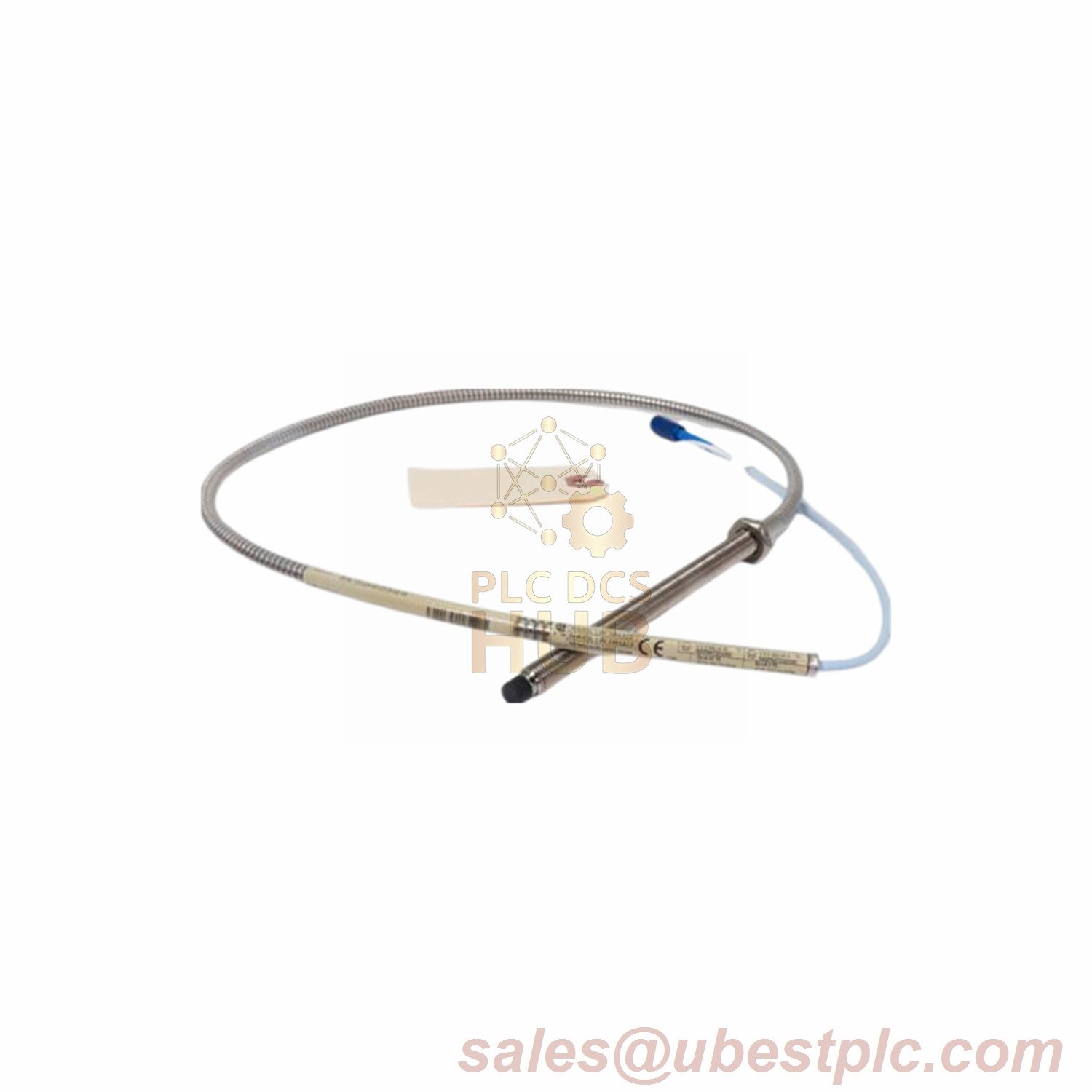

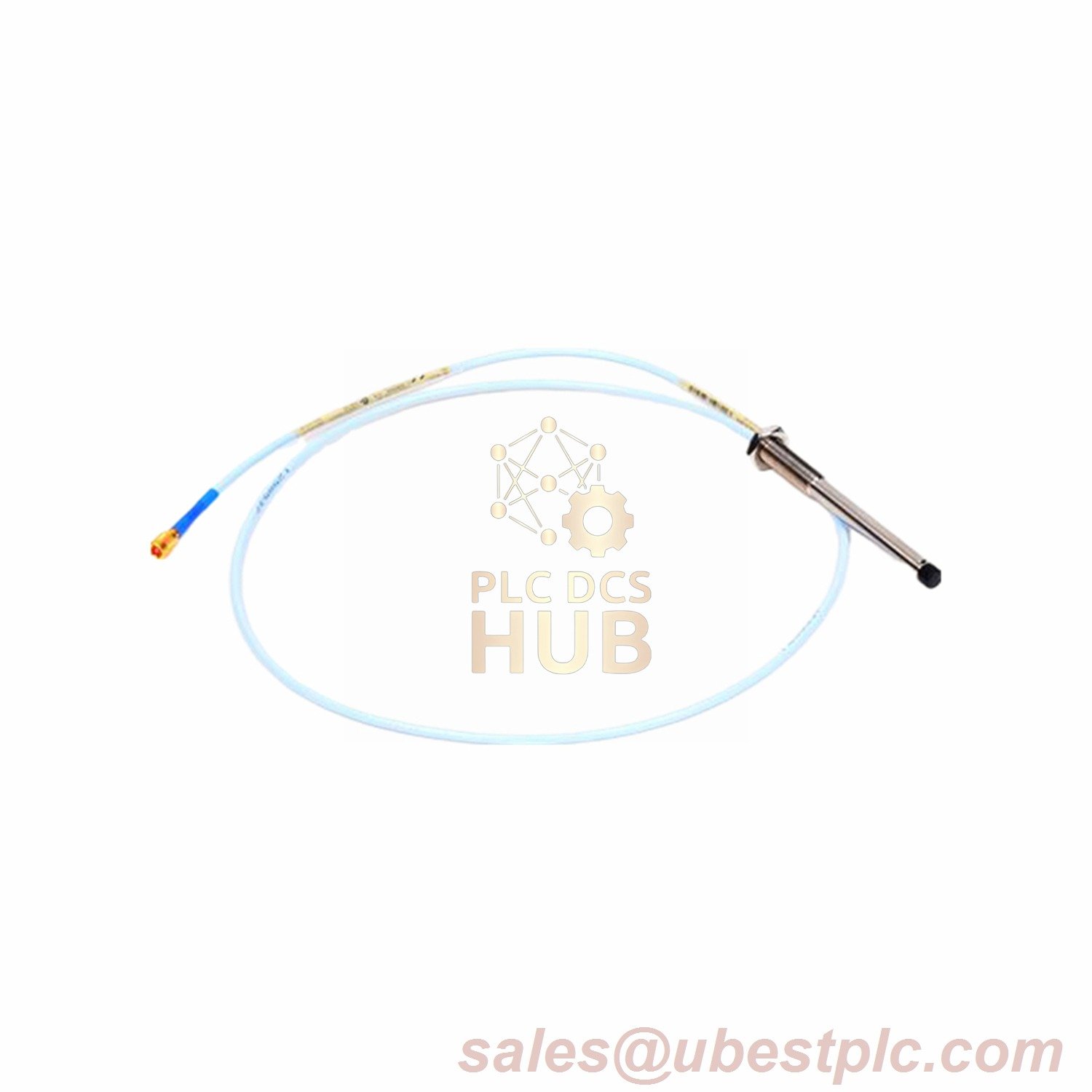

The Bently Nevada 330103-00-04-15-02-CN proximity probe delivers precise radial vibration monitoring in compact industrial installations. Featuring a 40 mm stainless steel case and 1.5 m cable with a ClickLoc™ connector, this 8 mm sensor operates reliably in extreme temperatures (-52°C to +218°C). Designed for space-constrained applications, it complies with country-specific safety standards and integrates seamlessly into hazardous area systems via ATEX/IECEx certifications.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330103-00-04-15-02-CN |
| Suffix Decoding | 00: 0 mm unthreaded length
04: 40 mm case length 15: 1.5 m cable 02: ClickLoc™ connector CN: Country-specific approvals |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| Thread Engagement | M10×1 (max 15 mm) |
| Linear Range | 0.25–2.3 mm (10–90 mils) / -1 to -17 Vdc |
| Gap Setting | -9 Vdc ≈1.27 mm (50 mils) |
| DC Resistance (RPROBE) | 7.73 Ω ±0.5 @1.5 m |
| Temperature Range | Standard: -52°C to +177°C Extended: -52°C to +218°C (tip), -51°C to +260°C (cable) |
| Humidity Tolerance | <3% ASF change @93% RH (IEC 68-2-3) |
| Compliance | Intrinsic Safety: AEx/Ex ia IIC T1-T5 Nonincendive: AEx/Ex nA/ec IIC T1-T5 Country-Specific: Custom certifications (e.g., CN) |
Contact Information
For custom pressure testing or hazardous area certifications:
Email: sales@ubestplc.com
