Description
Quick Overview

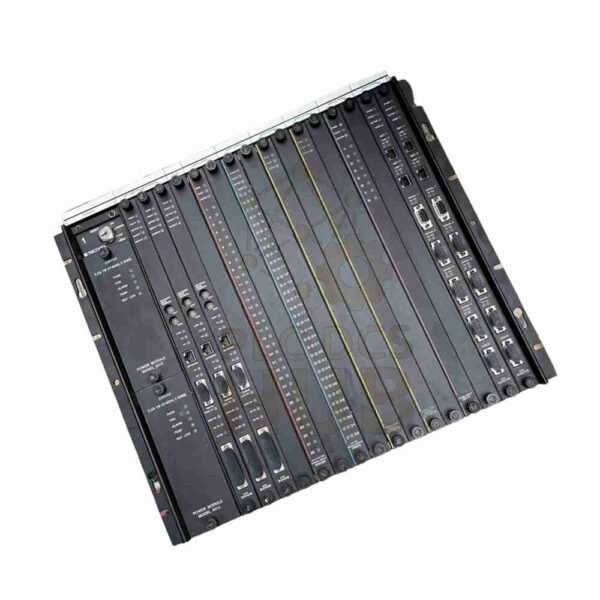

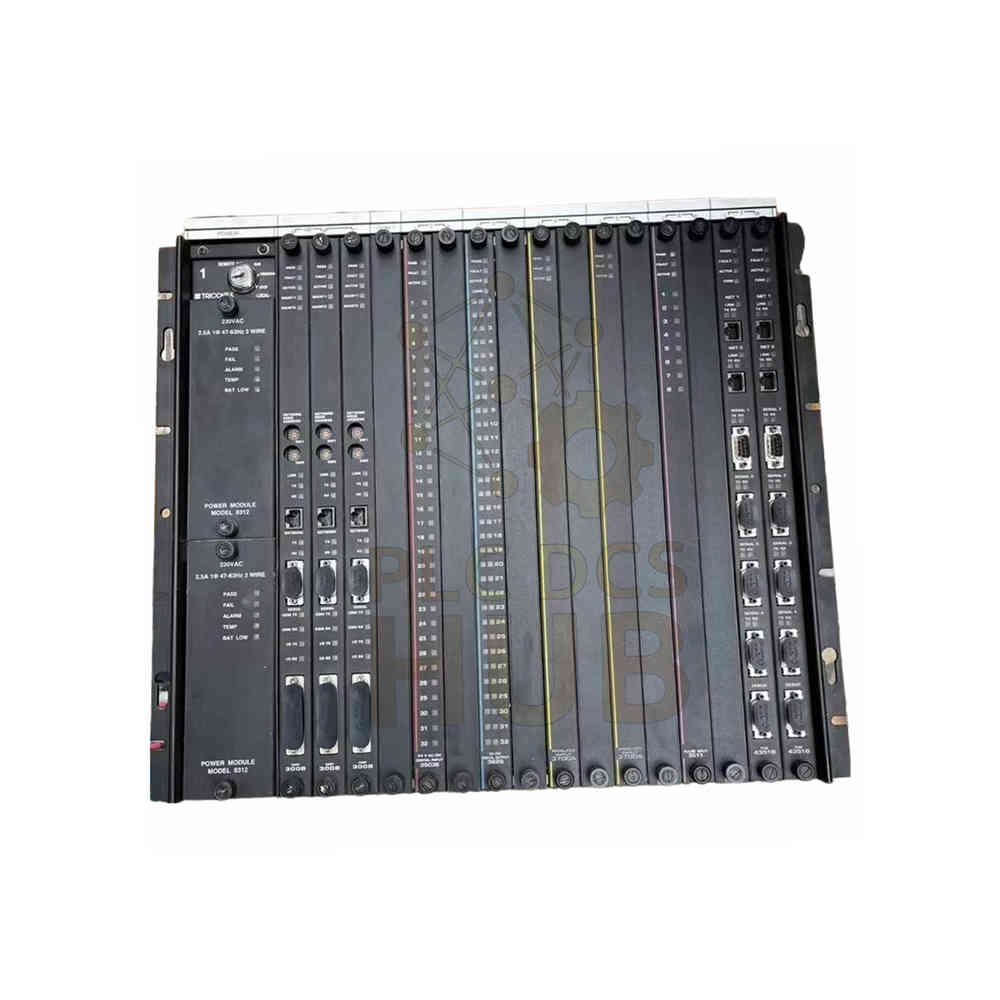

The Triconex 3720 is a high-density TMR analog input module. It reads 64 single-ended voltage or current signals. The module updates all points in just 10 ms. You can choose 12-bit or 14-bit resolution. Each point is fully isolated from others. This design stops faults from spreading. The module works with Modicon Quantum systems using a Tricon chassis.
Key Feature Tree
TMR Architecture
Three independent voting channels
Mid-value selection per scan
No single failure stops operation
Input Specifications
64 single-ended points
Voltage: 0-5 VDC (plus 6% overrange)
Current: 0-20 mA (needs 250 Ω shunt)
Fully isolated points
Speed & Accuracy
Update rate: 10 ms (fastest in series)
Resolution: 12 or 14 bits (programmable)
Accuracy: <0.15% of full scale (0-60°C)
Protection Features
Overrange protection: 150 VDC / 115 VAC continuous
Leg-to-leg isolation: 420 kΩ typical
Power-off resistance: 140 kΩ typical
Diagnostic LEDs
PASS: Module is healthy
FAULT: Channel failure detected
ACTIVE: Running in TMR mode
FIELD: Field wiring issue
Color code: Yellow
Detailed Spec Sheet
Model: Triconex 3720
Type: Triple Modular Redundant (TMR) analog input
Input points: 64, single-ended
Isolation: Yes (each point isolated)
Voltage range: 0-5 VDC, plus 6% overrange
Current range: 0-20 mA (plus 6%) with 250 Ω shunt
Update rate: 10 ms
Resolution: 12 bits or 14 bits (user selectable)
Accuracy: <0.15% of full scale (0°C to 60°C)
Input resistance (load): 10 MΩ DC minimum
Power-off resistance: 140 kΩ DC typical
Leg-to-leg isolation: 420 kΩ typical
Normal mode rejection:
-3 dB at 8 Hz
-17 dB at 60 Hz
-23 dB at 120 Hz
Overrange protection: 150 VDC / 115 VAC continuous
Diagnostic indicators: PASS, FAULT, ACTIVE, FIELD
Color code: Yellow
Installation Notes
Mounts in standard Tricon chassis
Requires external termination panel (sold separately)
Mechanical keying prevents wrong insertion
Hot spare ready for online replacement
Diagnostic Capabilities
Each channel runs self-checks continuously
A failed diagnostic lights the FAULT LED
FIELD LED indicates external wiring problems
Module works with up to two bad channels
No need to stop the controller for repairs
Typical Use Cases
Large turbine monitoring (64 points)
Oil and gas wellhead control
Chemical reactor analog inputs
Power plant analog data logging
Safety instrumented systems (SIS)
Warranty & Shipping
Warranty: 12 months (parts and labor)
Shipping carriers: FedEx, UPS, DHL
Worldwide tracking included
Professional FAQ
Q1: What is the main difference between Triconex 3720 and 3700 series?
A: The 3720 has 64 points (vs 32) and runs faster at 10 ms. It also has fully isolated points and programmable resolution.
Q2: Can I mix 0-5V and 0-20mA sensors on the same module?
A: Yes. Use a 250 Ω shunt resistor for each current loop. All other channels stay as voltage inputs.
Q3: The FIELD LED is on but the FAULT LED is off. What does this mean?
A: The module is healthy. The FIELD LED points to a wiring problem outside the module. Check your field cables and sensor connections.
Q4: How do I choose between 12-bit and 14-bit resolution?
A: Use 12 bits for faster response in safety loops. Use 14 bits for better accuracy in slow process measurements. You can change this setting online.
Q5: Does the 3720 support hot spare like the 3700 series?
A: Yes. Hot spare works the same way. Replace a failed unit while the system runs. No shutdown needed.
经验性问答 (Field Experience Q&A)
Q: We have 60 thermocouples. Can the 3720 read them directly?
A: No. The 3720 reads only voltage (0-5V) or current (0-20mA). Add external signal conditioners for thermocouples.
Q: One channel drifts slowly over time. Others are stable. What should we check?
A: First, swap the field wiring to another channel. If the drift moves, replace the field transmitter. If it stays, replace the module.
选购指导 (Selection Guide)
Need 32 points or slower speed? Pick Triconex 3700 (55 ms update)
Need 64 points and 10 ms speed? Pick Triconex 3720
Need full isolation between every point? Pick Triconex 3720
For SIL 2 or SIL 3 safety loops, always use TMR mode
Order the external termination panel separately
Packaging List
One Triconex 3720 analog input module
Mechanical keying insert
Quick start guide (printed)
Anti-static bag
