Description
Overview

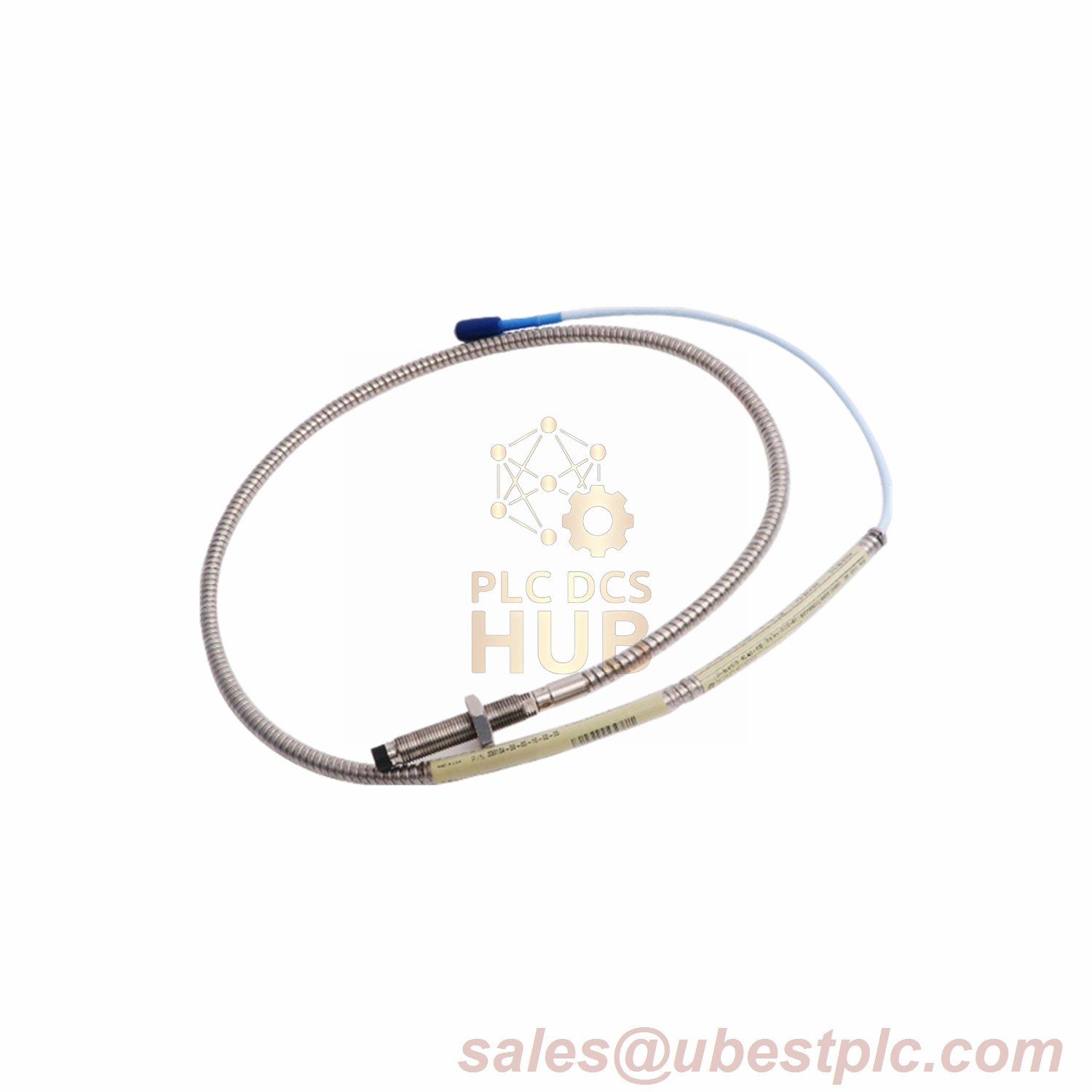

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model 330104-00-02-10-02-00) is designed for precision vibration and position monitoring in applications demanding ultra-compact dimensions. Featuring a minimal 20 mm stainless steel case (AISI 303/304) and a fully threaded design, this probe integrates seamlessly into tight spaces. Its extended 1.0-meter cable with a ClickLoc connector ensures flexible routing, while the absence of agency approvals streamlines deployment in non-regulated environments.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330104-00-02-10-02-00 |
| Suffix Breakdown | – 00: 0 mm unthreaded length – 02: 20 mm case length – 10: 1.0 m cable – 02: ClickLoc connector (standard) – 00: No agency approvals |
| Materials | Case: AISI 303/304 SST Tip: PPS Seal: Viton® O-ring |
| Electrical | Input Voltage: -17.5 to -26 Vdc DC Resistance (1.0 m): 7.59±0.5 Ω Common-Mode Rejection: >80 dB @ 60 Hz Surge Protection: ±1 kV (IEC 61000-4-5) |
| Mechanical | Cable Bend Radius: 25 mm (min) Connector Durability: 500+ mating cycles Axial Load Capacity: 30 N max |
| Environmental | Operating Humidity: 5–95% non-condensing Salt Spray Resistance: 96 hrs (ASTM B117) Ozone Resistance: 0.1 ppm (IEC 60068-2-60) |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
