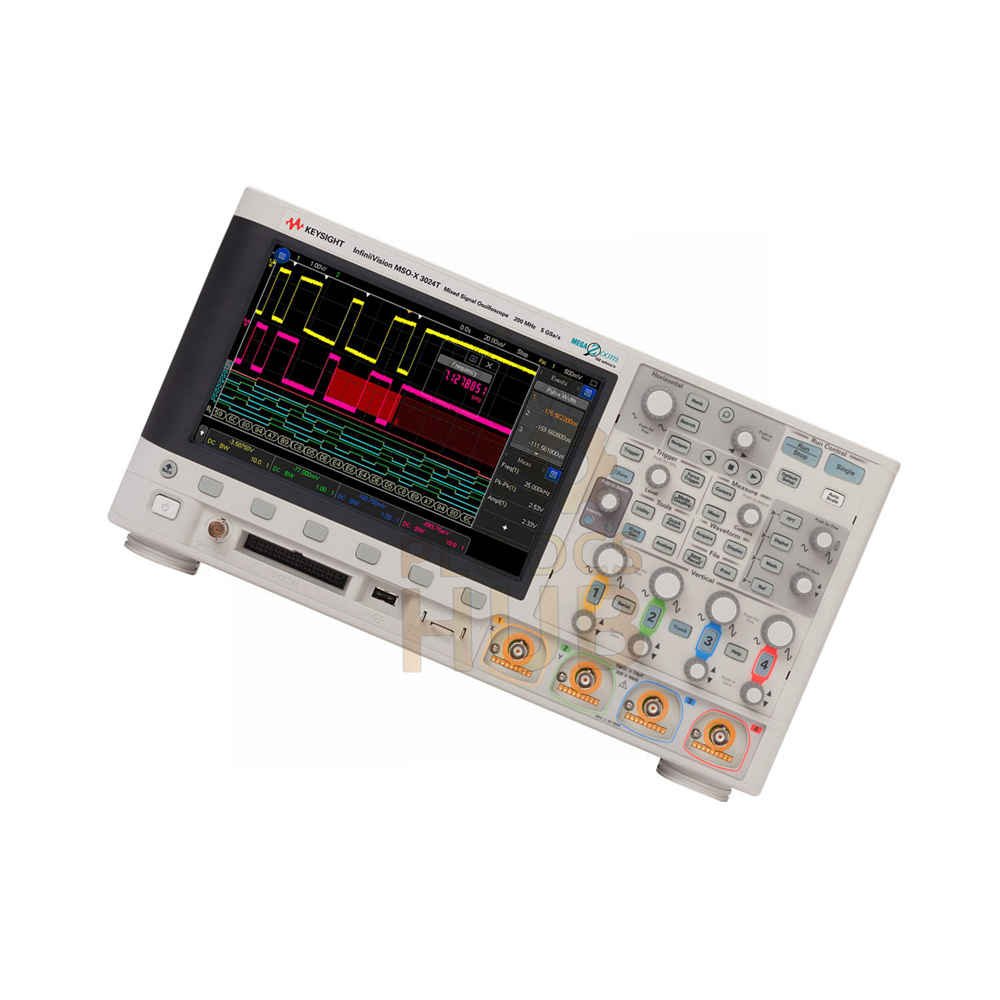

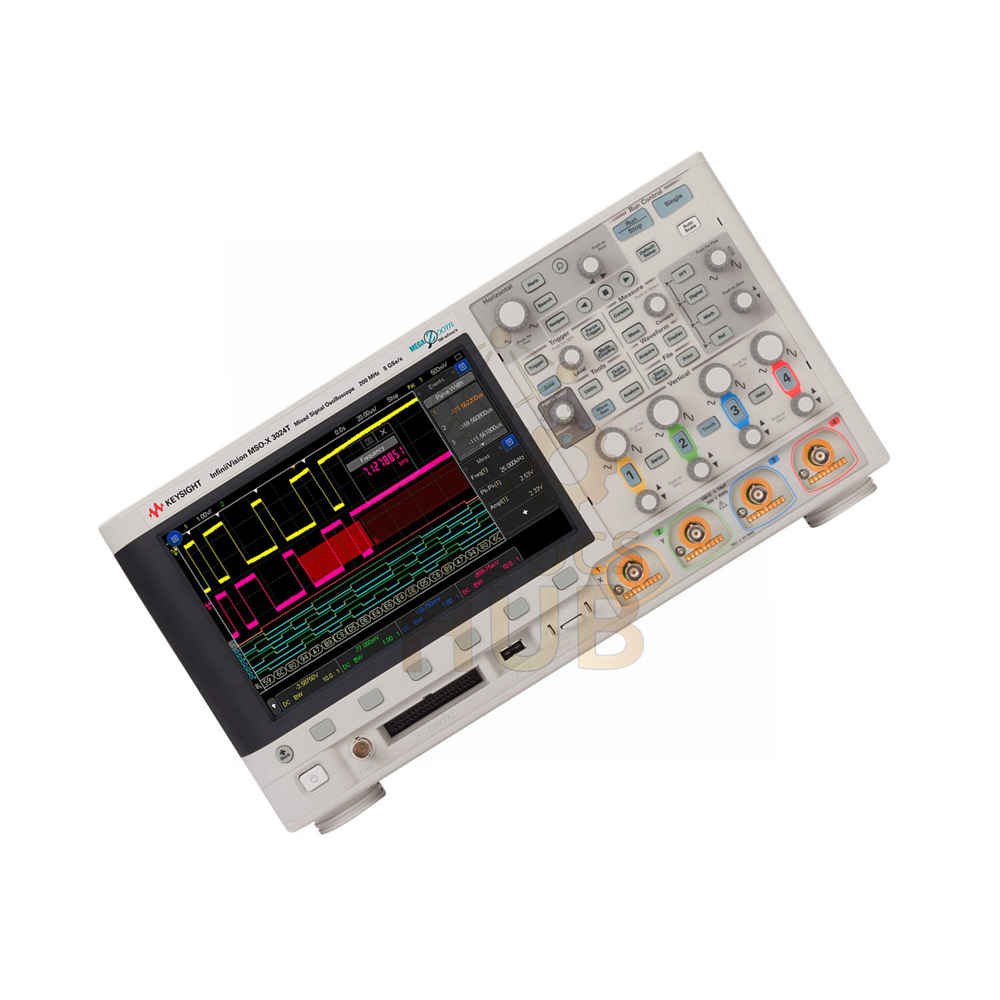

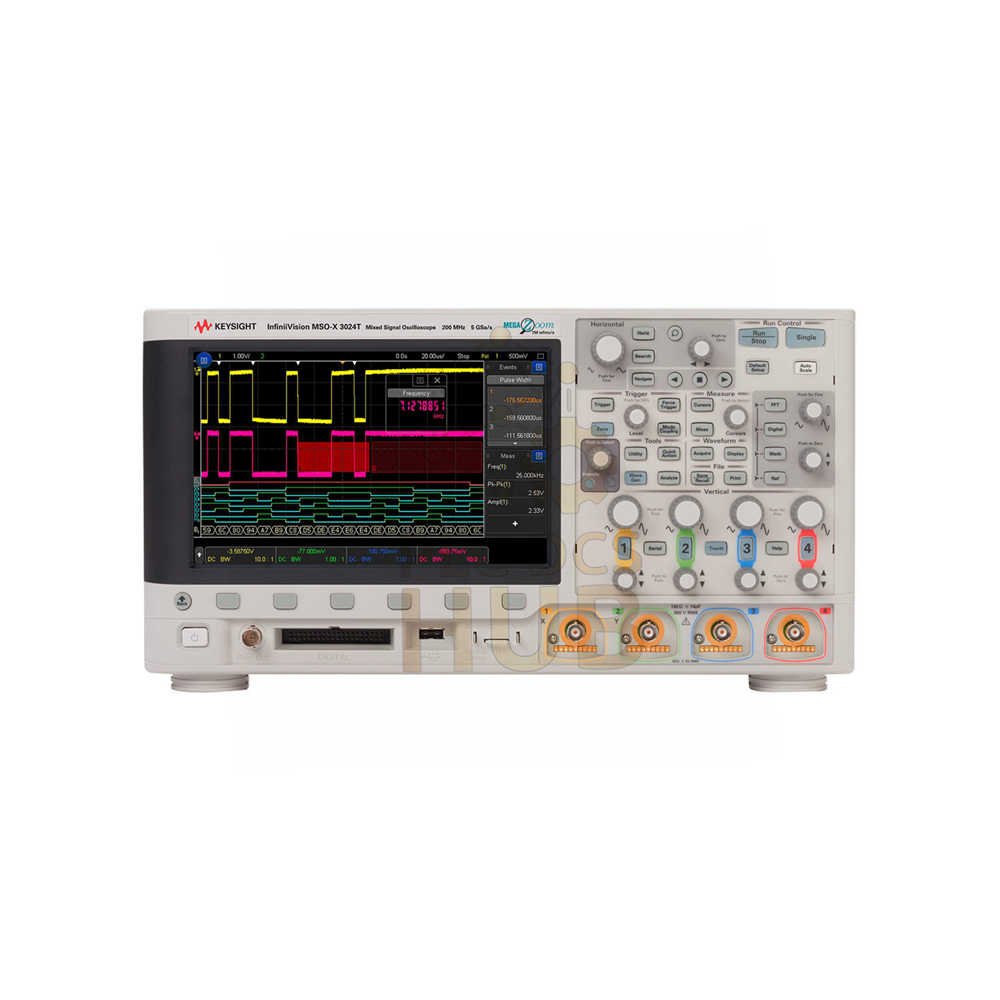

Keysight MSOX3024T Oscilloscope | 200MHz 4+16 Ch | Touch Zone Trigger

Description

Product Overview

• Keysight MSOX3024T is a Mixed Signal Oscilloscope.
• It has 200 MHz bandwidth.
• Includes 4 analog plus 16 digital channels.
• Great for testing both analog and digital signals at once.

Key Features

• Touch Screen
  • Large 8.5-inch capacitive touch screen.
  • Easy to view and analyze signals.
• Zone Touch Triggering
  • Isolate signals in seconds.
  • Just draw a box on the screen.
• Fast Update Rate
  • 1,000,000 waveforms per second.
  • See more signal details.
• Deep Memory
  • Up to 4 Mpts memory.
  • Capture longer signal traces.
• Full Upgradability
  • Add bandwidth, AWG, voltmeter, serial trigger, mask test anytime.
  • Grows with your needs.

Technical Specifications

• Brand: Keysight
• Model: MSOX3024T
• Type: Mixed Signal Oscilloscope
• Bandwidth: 200 MHz
• Analog Channels: 4
• Digital Channels: 16
• Memory Depth: 4 Mpts
• Update Rate: 1,000,000 wfms/s
• Display: 8.5-inch capacitive touch

What’s Included

• Warranty
  • 3-year factory warranty.
  • 90 days for passive probes.
• Certification
  • Certificate of calibration included.
  • 3-year calibration interval.
• Security
  • Secure erase feature.
• Probes & Cables
  • One N2843A 500 MHz passive probe per analog channel.
  • One N2756A 16-channel MSO cable.
• Documentation
  • CD with user guide, service guide, programmer manual.
• Languages
  • English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish.
• Power
  • Localized power cord and overlay.

Frequently Asked Questions (FAQ)

• What is zone touch triggering?
  • You draw a box on the screen.
  • The scope triggers only on signals inside that box.
  • It isolates signals in seconds.
• Can I add features later?
  • Yes. Full upgradability is built in.
  • Add bandwidth, AWG, serial decode, or mask test anytime.
  • No need to buy a new scope.
• What is the difference between MSO and DSO?
  • MSO has both analog and digital channels (4+16).
  • DSO has only analog channels.
  • MSOX3024T lets you debug mixed signals.
• How deep is the memory?
  • 4 Mpts standard.
  • Captures long signal sequences.
  • Good for serial bus decoding.
• What probes come with it?
  • One N2843A 500 MHz probe per analog channel.
  • One N2756A cable for all 16 digital channels.
  • Passive probes have 90-day warranty.

Experience-based Q&A & Selection Guide

• Field story: Touch screen not responding?
  • Clean the screen with a soft cloth.
  • Use only finger touch (not a stylus).
  • If still not working, reboot the scope.
• Why choose MSOX3024T over older models?
  • Touch screen saves setup time.
  • Zone trigger is faster than edge trigger.
  • 1M wfms/s catches rare glitches.
• Selection guide for oscilloscopes
  • Step 1: Check your max signal frequency → need 200 MHz or more.
  • Step 2: Count analog channels → 4 is standard.
  • Step 3: Need digital channels? Yes → choose MSO series.
  • Step 4: Want touch screen? Yes → MSOX3000T series.
  • Pro tip: Buy bandwidth upgrades later to save budget now.
• What warranty is included?
  • 3-year factory warranty on the main unit.
  • 90 days for passive probes.
  • Extended warranty available.
• Which shipping options do you offer?
  • FedEx – Priority (3-5 days)
  • UPS – Worldwide tracking
  • DHL – Express door to door
