TR CEV65M-10579 Absolute Encoder 4M Steps PROFINET+SSI IP65

Description

Product Overview

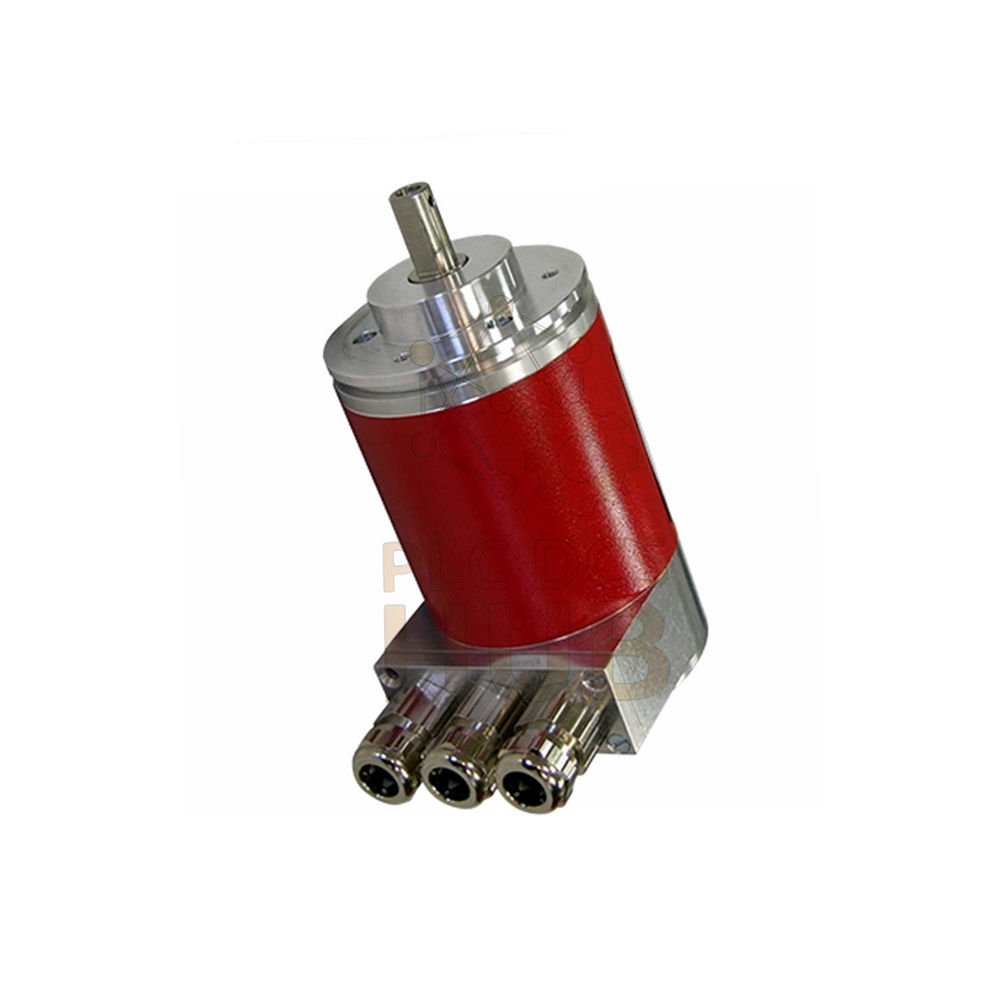

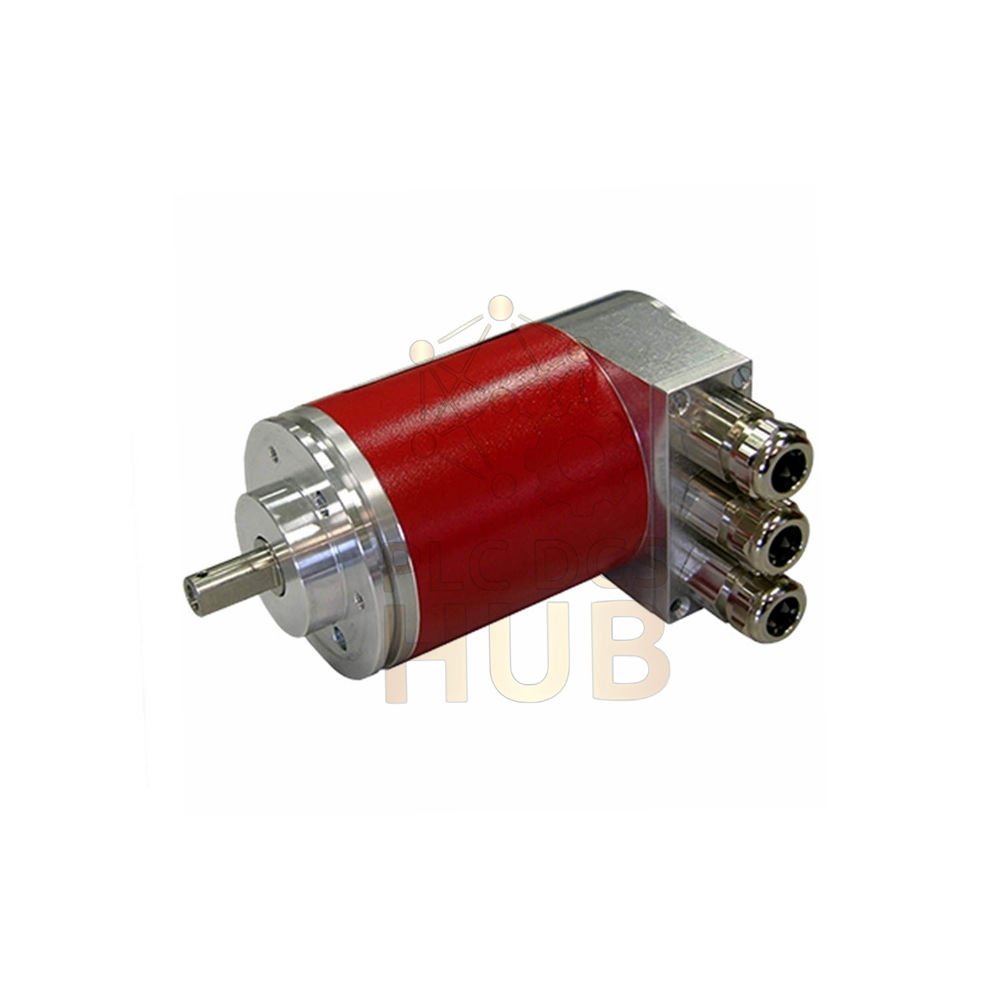

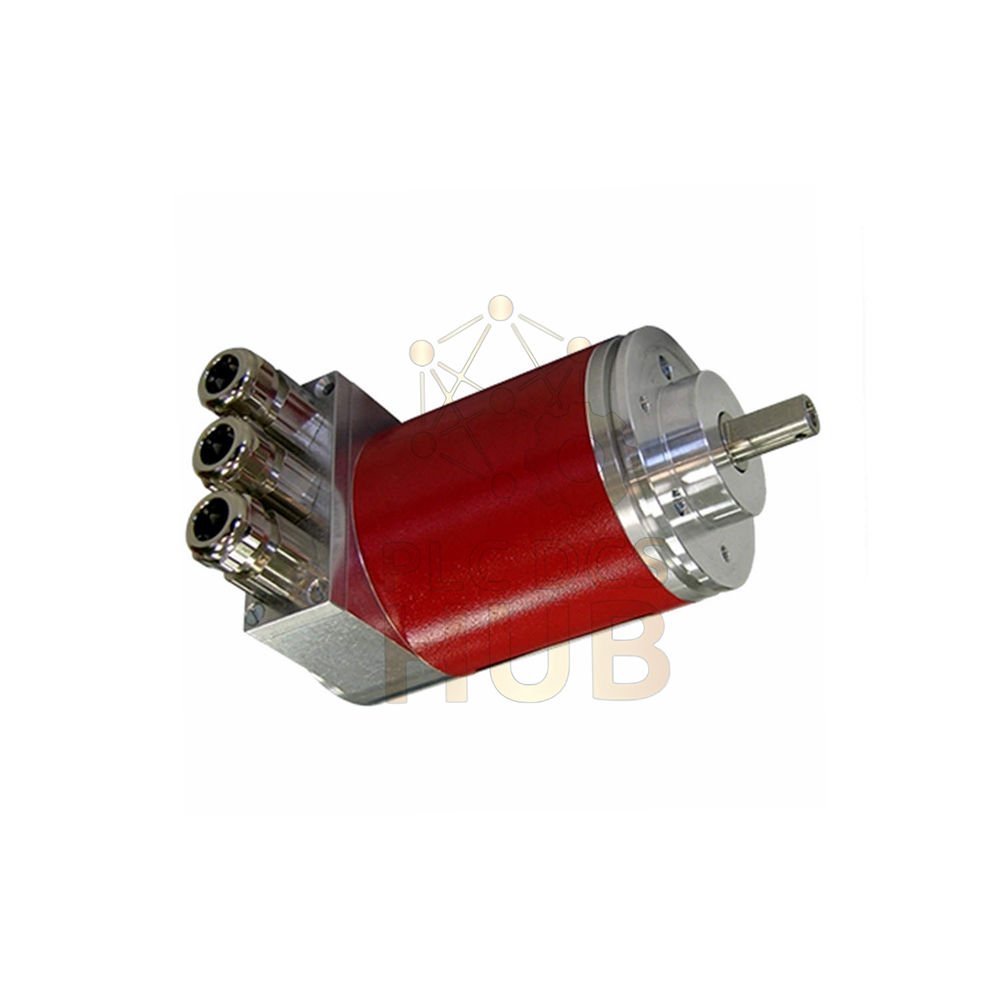

The TR CEV65M-10579 is a programmable absolute multiturn encoder. This encoder provides 4,096,000 steps per revolution. It also delivers 4,096,000 total revolutions. The device supports PROFINET IO and SSI interfaces simultaneously. You can program the encoder for your specific application needs. Supply voltage ranges from 11 to 27V DC. The encoder meets IP65 protection for harsh environments.

For inquiries, contact us at +86 158 8020 0923 (WhatsApp).

Part Number Breakdown (Tree Structure)

• TR → Brand
  • TR Electronic GmbH
• CEV65M → Series
  • Absolute multiturn encoder
  • 65 mm housing size
• 10579 → Specific Model
  • Custom configuration code
  • Programmable parameters
  • PROFINET + SSI interface

Key Specifications

• Brand: TR Electronic
• Part Number: TR CEV65M-10579
• Steps per Revolution: 4,096,000 (22 bits)
• Number of Revolutions: 4,096,000 (22 bits)
• Interface: PROFINET IO + SSI (Programmable)
• Supply Voltage: 11 to 27V DC
• Output Level: RS422 and RS485
• Protection Class: IP65
• Temperature Range: -20°C to +70°C

Mechanical Specifications

• Flange Type: ZB36
• Shaft Type: 10FL/19.5 (10 mm diameter, 19.5 mm length)
• Connector Position: Radial
• Connector 1: 1 x 4-pin M12 connector
• Connector 2: 1 x 8-pin M12 connector
• Connector 3: 2 x 4-pin M12 connector, D-coded (female)
• Mating Plug: Not included (order separately)

Electrical Specifications

• Output Level RS422: For SSI communication
• Output Level RS485: For PROFINET communication
• Pinout Reference: TR-ECE-TI-DGB-0222
• Consult pinout document for proper wiring.

Programmable Options and Features

• Code Programmable: Yes, user configurable
• ENC Conformance Class C: High performance class
• ENC PN Specification 2.2: PROFINET version support
• ENC Preset 1+2: Two programmable preset values
• Programmable Parameters: Resolution, counting direction, preset

Firmware and Documentation

• Parameter File: CEV65M-10579
• Firmware Number: 437892
• Drawing Number: 04-CEV65M-M0521
• Documentation Number: DOKUMENTE
• Version Number: 000

Environmental Specifications

• Operating Temperature: -20°C to +70°C
• Storage Temperature: Similar range (-20°C to +70°C)
• Protection Class: IP65 (dust-tight and water-resistant)
• Resists washdown and outdoor exposure.

Physical Characteristics

• Flange Type ZB36: Standard synchro flange with 36 mm centering
• Shaft Diameter: 10 mm with 19.5 mm length
• Shaft Type: Solid shaft (10FL/19.5)
• Connector Position: Radial exit for side cabling

Installation Guide

• Turn off all power before installation.
• Mount the encoder using ZB36 flange with 36 mm centering.
• Secure the shaft to the motor or machine shaft.
• Use flexible coupling for shaft alignment.
• Connect M12 cables to the three connectors.
• Use 4-pin connector for power and SSI.
• Use 8-pin connector for PROFINET communication.
• Use D-coded 4-pin connector for Ethernet (PROFINET).
• Apply 11-27V DC power to the encoder.
• Configure parameters using PROFINET or SSI interface.

Wiring Notes

• Refer to pinout document TR-ECE-TI-DGB-0222.
• Use shielded cables for SSI communication.
• Use CAT5e or CAT6 cables for PROFINET.
• Keep power and signal cables separated.
• Ground the cable shield at one end only.

Programming and Configuration

• Use PROFINET IO for device configuration.
• Load parameter file CEV65M-10579 into your PLC.
• Set preset values using ENC Preset 1 and 2 functions.
• Program resolution to match your application needs.
• Program counting direction (clockwise or counterclockwise).
• Firmware version 437892 supports all features.

Diagnostic Capabilities

• PROFINET diagnostics provide real-time status.
• SSI interface supports error detection.
• Check communication status via PROFINET IO.
• Monitor encoder temperature in harsh environments.
• Use configuration software for detailed diagnostics.

Typical Applications

• Heavy-duty industrial machinery positioning
• Wind turbine pitch and yaw control
• Steel mill and crane positioning systems
• Packaging machine cut-to-length applications
• Printing press registration control
• Outdoor material handling equipment
• Applications needing IP65 environmental protection

Package Contents

• One TR CEV65M-10579 absolute multiturn encoder
• One ZB36 flange (installed)
• One coupling (not included, order separately)
• M12 cables not included (order separately)
• Mating plugs not included

Warranty and Shipping

• 12 months factory warranty from shipment date.
• Warranty covers manufacturing defects only.
• Mechanical damage or wrong wiring voids warranty.
• Shipping options: FedEx, UPS, DHL.
• Tracking number provided after shipment.

Frequently Asked Questions (FAQ)

Q1: What is the resolution of the CEV65M-10579?

The TR CEV65M-10579 has 4,096,000 steps per revolution (22 bits). Total revolutions are also 4,096,000 (22 bits). This gives a total measuring range of over 16 trillion steps.

Q2: What interfaces does this encoder support?

This encoder supports PROFINET IO and SSI interfaces simultaneously. Both interfaces are programmable. Use PROFINET for real-time control and SSI for backup or simpler systems.

Q3: What is the protection class of the CEV65M-10579?

Protection class is IP65. This means the encoder is dust-tight. It also resists water jets from any direction. Suitable for outdoor and washdown environments.

Q4: What is the operating temperature range?

Operating temperature range is -20°C to +70°C. Storage temperature is the same range. This encoder works in cold and hot industrial environments.

Q5: Can I program the encoder parameters?

Yes, this encoder is fully programmable. You can program resolution, counting direction, and preset values. Use PROFINET IO to configure the device. ENC Preset 1 and 2 provide two programmable preset positions.

Buying Guide

When you buy a TR CEV65M-10579 absolute encoder, follow these tips. First, verify your interface requirement. This encoder has PROFINET IO and SSI. Second, check your resolution needs. 4 million steps per revolution suits most applications. Third, confirm your IP rating requirement. IP65 works for washdown and outdoor use. Fourth, measure your shaft size. This encoder has 10 mm solid shaft. Fifth, check your flange type. ZB36 is standard synchro flange with 36 mm centering. Sixth, verify your temperature range. Operating range is -20°C to +70°C. Seventh, order M12 cables and mating plugs separately. Eighth, consider your programming needs. This encoder is fully programmable. Ninth, review warranty terms. We offer 12 months coverage. Tenth, choose your shipping method. We use FedEx, UPS, and DHL. Finally, test the encoder with your controller before final installation.
