Description
Product Description

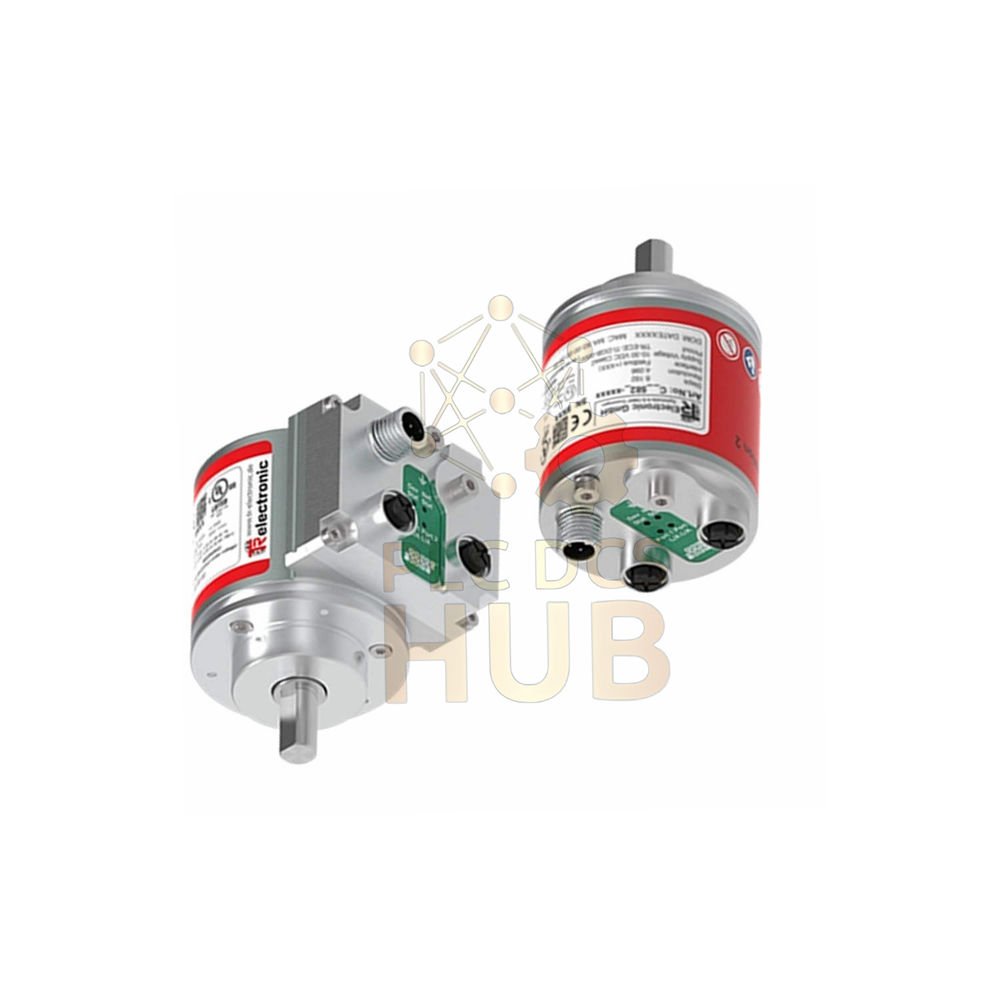

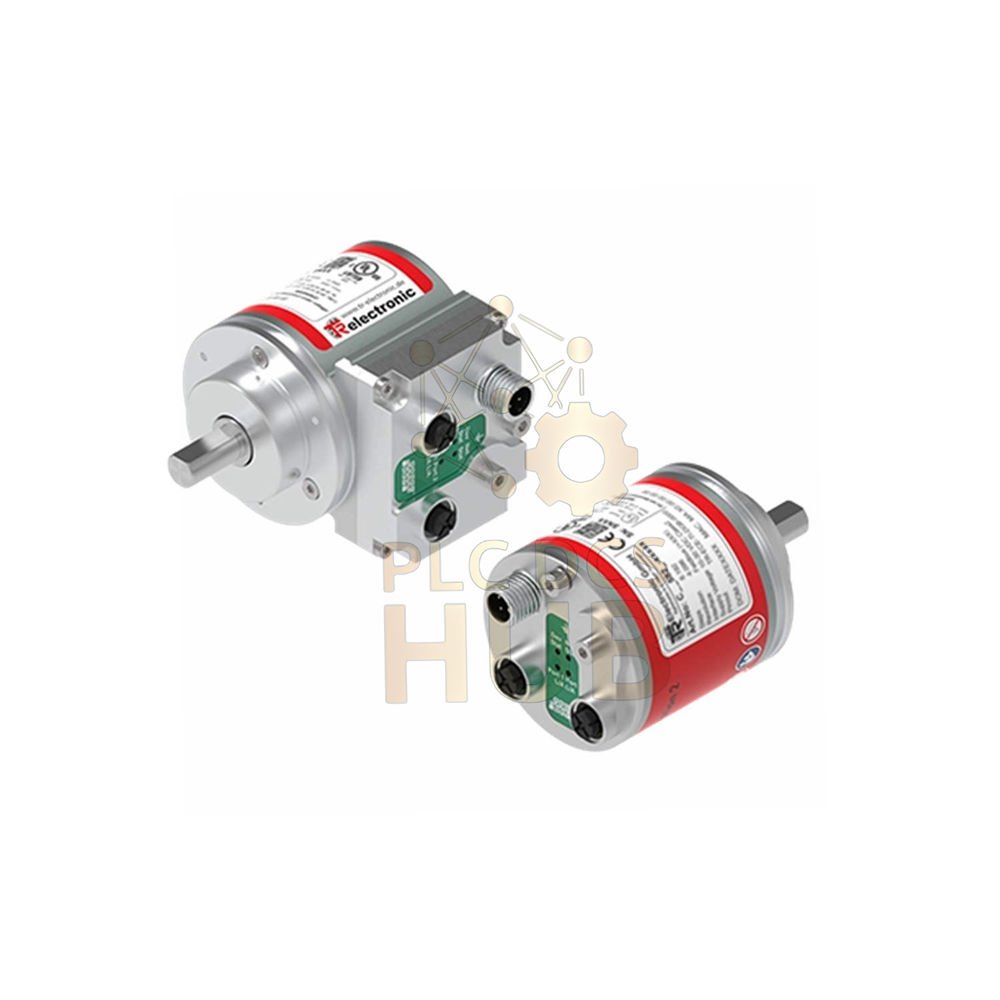

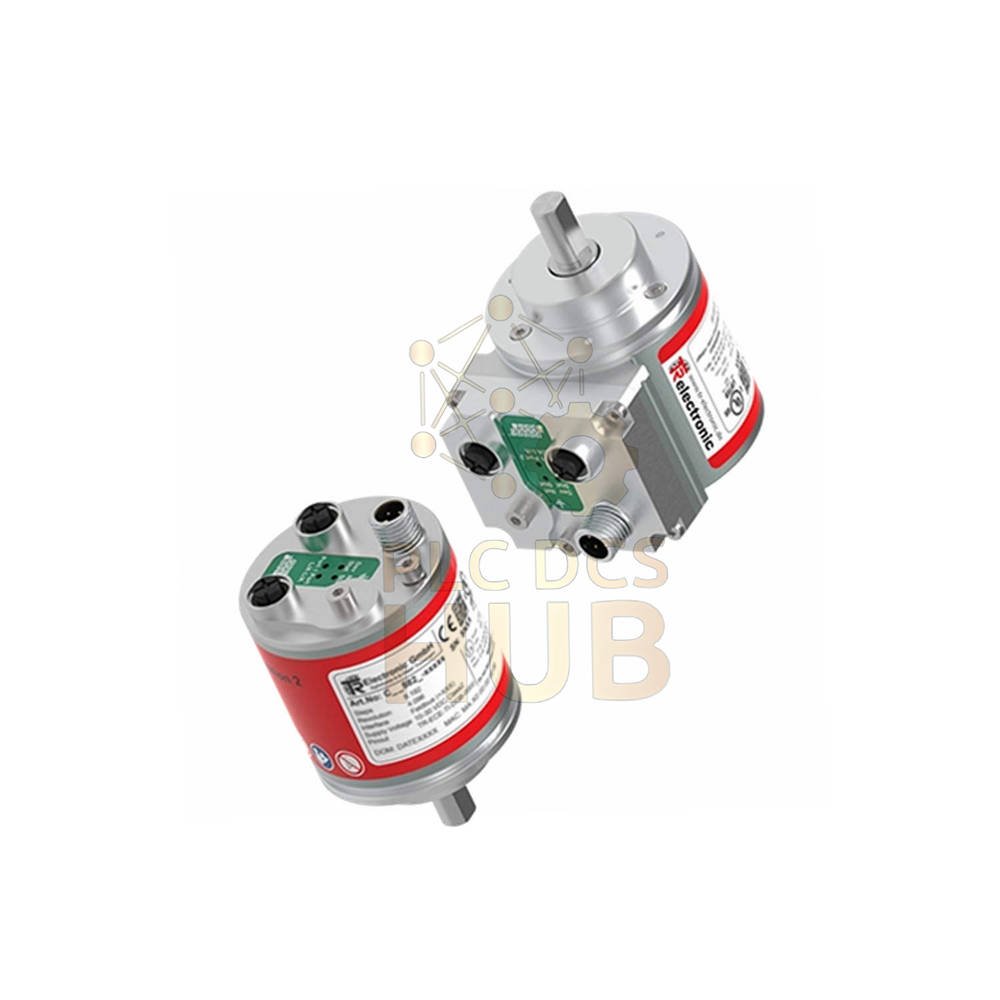

The TR CEV58M-00441 is a high-precision absolute encoder.
It supports PROFINET IO with IRT and RT real-time classes.
This device delivers up to 33-bit total resolution.
Use it for single-turn or multi-turn position feedback.
The encoder works reliably in tough industrial environments.
Technical Data – Sorted by Importance
Brand & Model
Brand: TR
Model: CEV58M-00441
Series: CEV58M-PN
Core Performance
Total resolution: ≤33 Bit
Steps per revolution: 8,192,000 (≤32768 programmable)
Revolutions: 4,096,000 (≤256000 programmable)
Output capacity: ≤30 Bit
Type: Single-Turn and Multi-Turn
Electrical Data
Supply voltage: 11–27 VDC (nominal 24 VDC)
Nominal current: 120 mA at no load
Interface: PROFINET IO
Coding: Binary
Transmission rate: 100 MBit/s
Cycle time: ≥1000 µs (IRT/RT)
PROFINET Details
PROFINET specification: V2.2
Conformance class: B and C
Real-Time classes: Class 1 (RT), Class 2 (RT), Class 3 (IRT)
Physical layer: Fast Ethernet (ISO/IEC 8802-3)
Programming tool: Fieldbus-Device
Mechanical Data
Flange type: ZB36
Shaft type: 10FL/19.5
Shaft diameters: 6 mm, 8 mm, 10 mm, 12 mm, or 3/8 inch
Connector type 1: 1x 4-pin M12 (axial)
Connector type 2: 2x 4-pin M12, D-coded female
Mating plug: not included
Mass: 0.3 to 0.5 kg
Moment of inertia: 2.5E-6 kg·m²
Start-up torque at 20°C: 2 Ncm
Angular acceleration: ≤10E+4 rad/s²
Speed & Lifetime
Max mechanical speed: ≤12,000 rpm
Bearing life: ≥3.9E+10 revolutions
Bearing life at 6000 rpm and 60°C: specified
Shaft load (axial/radial): ≤50 N / ≤100 N (at flange +10 mm)
Environmental Ratings
Working temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C (dry)
Relative humidity: ≤98%, non-condensing
Protection class: IP65
Vibration resistance: ≤100 m/s² (sine 50–2000 Hz)
Shock resistance: ≤1000 m/s² (half sine 11 ms)
Immunity to disturbance: DIN EN 61000-6-2
Transient emissions: DIN EN 61000-6-3
Options & Identifiers
ENC conformance class: C
PN spec: 2.2
Velocity output: yes
Pinout reference: TR-ECE-TI-DGB-0214
Drawing number: 04-CEV58M-M0274
Version: 000
Firmware: 4377F9
Installation Guide
Mount the encoder using ZB36 flange. Do not exceed shaft load limits.
Use axial M12 connectors for PROFINET cabling.
Apply 11–27 VDC power supply with proper grounding.
Keep operating temperature between -20°C and +70°C.
Debugging & Maintenance Ease
Read position data via any PROFINET scanner.
Use standard Fieldbus-Device tool for parameter changes.
No regular calibration needed.
Check M12 connectors for tightness and corrosion.
Compatibility
Works with all PROFINET IO V2.2 controllers.
Supports Conformance Class B and C devices.
Compatible with IRT networks down to 1000 µs cycle time.
Pairs with 3300 XL 11 mm Proximity Probes in same control cabinet.
Certifications
Meets IEC 61158 and IEC 61784-1
PROFINET certification for V2.2
EMC compliance: DIN EN 61000-6-2 and 6-3
Protection verified: IP65
Packing List
1 x TR CEV58M-00441 absolute encoder
1 x product manual (downloadable)
Mating plugs are not included – order separately.
Warranty & Shipping
Warranty: 12 months from delivery date.
Shipping carriers: FedEx, UPS, DHL with tracking.
Typical Applications
Servo motor positioning in packaging machines
Wind turbine blade pitch control
Robotic joint feedback with IRT real-time
Crane and hoist multi-turn counting
Printing press registration
Diagnostic Capability
Reads internal temperature and supply voltage.
Detects shaft overspeed and bearing wear warnings.
PROFINET alarms for communication loss.
FAQ – Frequent Questions & Real Experience
Q: Does this encoder need a battery to keep multi-turn data?
A: No. It uses mechanical gearing. No battery required.
Q: Can I reduce the resolution to match my PLC?
A: Yes. Use the programming tool to adjust steps per revolution.
Q from field service: What fails most often after 3 years?
A from engineer: M12 connectors or shaft seals. Keep spares.
Q: Does it work with Siemens S7-1500?
A: Yes. Use PROFINET IRT mode. Set cycle time ≥1000 µs.
Q about storage: How to store for 1 year?
A: Keep in dry, static-free bag at -30°C to +80°C.
Buying Guide – How to Choose the Right Absolute Encoder
Pick CEV58M-00441 if you need PROFINET with IRT.
Choose this model for total resolution up to 33 bits.
Select IP65 when washdown or dust exists.
For shaft diameter, match your coupling: 6/8/10/12 mm or 3/8 inch.
Order M12 mating plugs separately to avoid delays.
Buy one spare encoder for every 10 installed units.
