Description
Product Overview

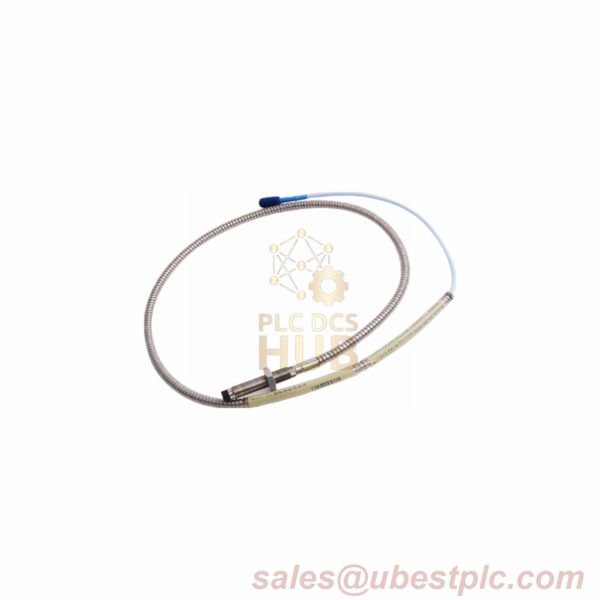

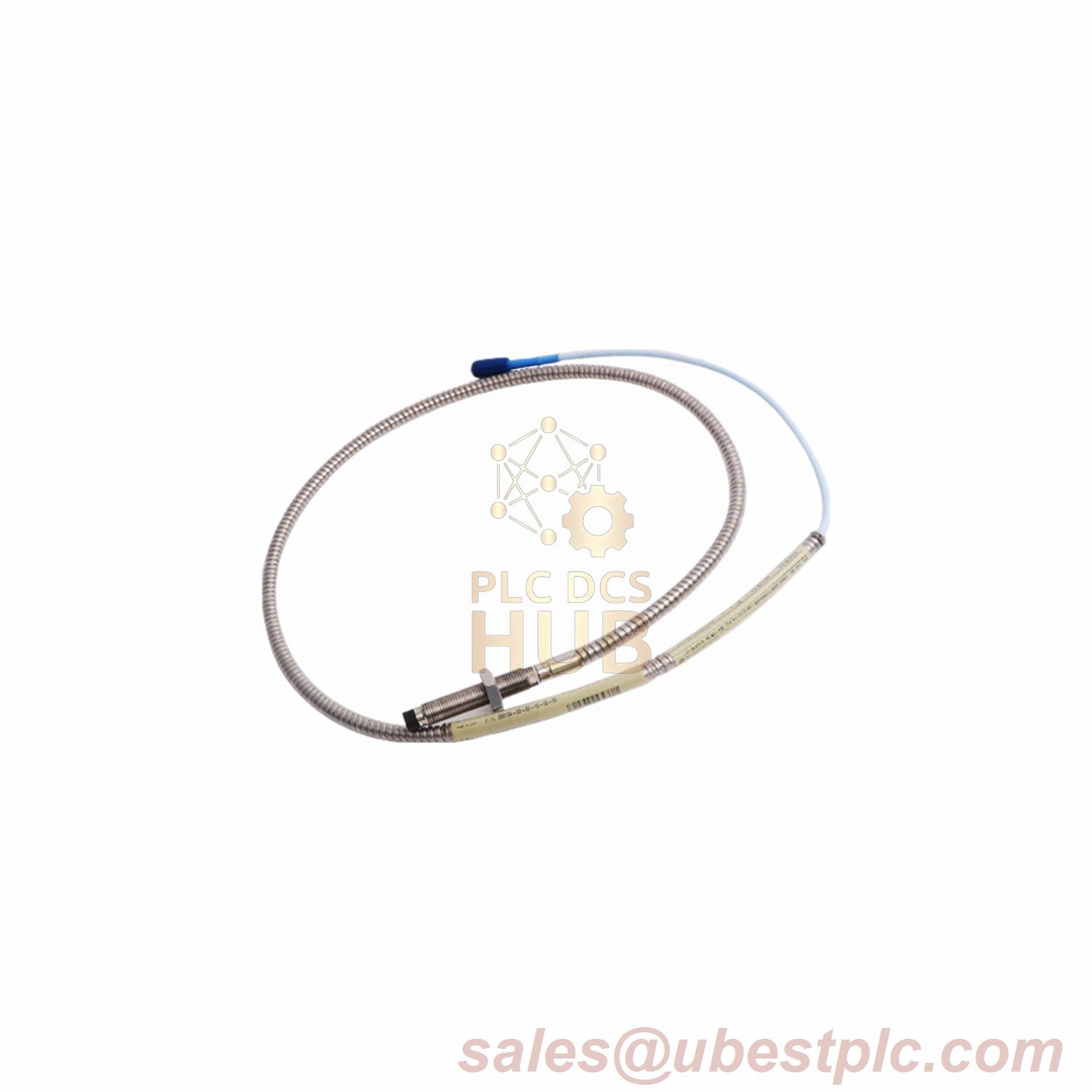

The Bently Nevada 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe delivers precision and adaptability for critical industrial monitoring. Designed with a fully threaded M10x1 body and 130 mm case length, it integrates a ClickLoc connector with a protective sleeve for durability in harsh environments. Certified for country-specific compliance, this probe combines a Viton® O-ring seal and PPS tip to withstand corrosion and pressure fluctuations, making it ideal for turbines, compressors, and high-vibration machinery.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- 330104-00-13-10-02-CN Suffix Breakdown:
- 00: Fully threaded (0 mm unthreaded length)
- 13: 130 mm overall case length
- 10: 1.0-meter cable (3.3 feet)
- 02: ClickLoc connector with dust/impact-resistant protector
- CN: Customizable regional certifications (e.g., INMETRO, SNI)
- Electrical:
- DC Resistance: 7.65 ± 0.35 Ω (center to outer conductor)
- Power Range: -27 Vdc to -38 Vdc (-30 Vdc nominal with barriers)
- Output Impedance: 90 Ω
- Sensitivity: <0.3 mV/V (ultra-stable output under voltage shifts)
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
