Description
Overview

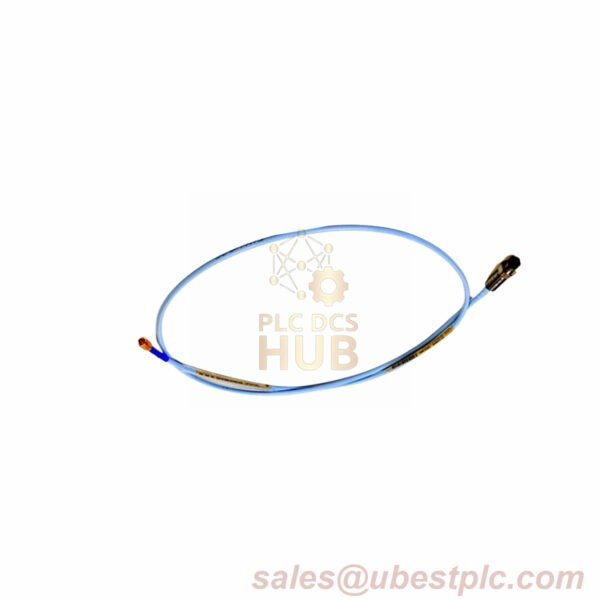

Designed for high-precision industrial monitoring, the Bently Nevada 3300 XL 8 mm Proximity Probe (Model 330104-00-13-10-02-00) delivers reliable performance in applications requiring extended reach and robust construction. Featuring a 130 mm stainless steel case (AISI 303/304) and a fully threaded design, this probe integrates seamlessly into installations demanding durability. Equipped with a 1.0-meter armored cable and a ClickLoc connector protector, it ensures secure connectivity in challenging environments. Engineered for stability, the probe operates within a -17.5 Vdc to -26 Vdc range and maintains accuracy at altitudes up to 2000 meters, even under extreme operational stresses.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330104-00-13-10-02-00 |
| Suffix Breakdown | – 00: 0 mm unthreaded length – 13: 130 mm case length – 10: 1.0 m cable – 02: ClickLoc connector (standard) – 00: No agency approvals |
| Electrical | Input Voltage: -17.5 to -26 Vdc Insulation Resistance: >100 MΩ @ 500 VDC Output Noise Floor: <8 mV RMS Signal Bandwidth: 0.05 Hz – 25 kHz (±2 dB) |
| Mechanical | Cable Flex Life: 10,000 cycles (IEC 60947-1) Thread Lubrication: Dry-film anti-galling coating Probe Tip Hardness: 80 Shore D |
| Environmental | Water Immersion Rating: IP68 (1 m, 24 hrs) Operational Vibration: 15 g (10–2000 Hz) Chemical Exposure Resistance: ASTM G154 compliant |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
