Description
Product Overview

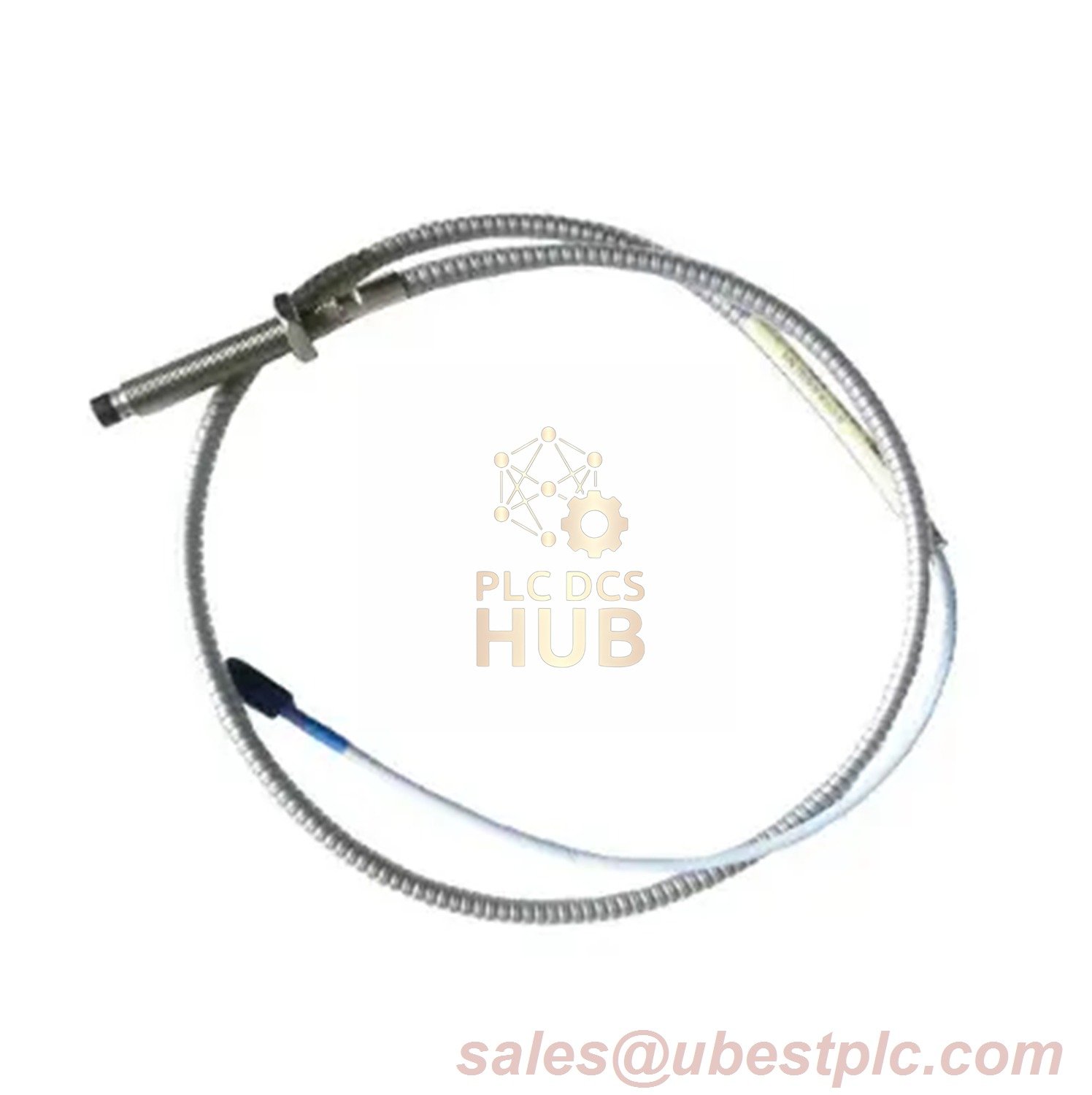

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330141-08-50-12-05) is a high-performance vibration monitoring probe designed for industrial applications. Featuring a robust design with patented TipLoc and CableLoc technologies, this probe ensures durability and reliable performance in harsh environments. It is compatible with 5-meter Proximitor sensors and offers optional FluidLoc cables to prevent fluid leakage. With certifications like CSA, ATEX, and IECEx, this probe is ideal for critical machinery monitoring.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 3300 XL 8 mm Probe |
| Part Number | 330141-08-50-12-05 |
| Overall Case Length | 0.8 inches |
| Total Length | 5.0 meters (16.4 feet) |
| Connector Type | Miniature coaxial ClickLoc connector, FluidLoc cable |
| Agency Approvals | CSA, ATEX, IECEx |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Probe Weight | 323 g/m (11.4 oz) |
| Operating Temperature | Standard: -52°C to +177°C (-62°F to +350°F); Extended: -52°C to +218°C (-62°F to +425°F) |
| Pressure Seal | Viton® O-ring, designed for differential pressure sealing |
| Relative Humidity | Less than 3% change in ASF at 93% humidity (IEC 68-2-3) |
| Nominal DC Resistance | 8.73 ± 0.50 Ω |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% (5/1m system); ± 6.5% (9m system) |
| Deviation from DSL | ±0.025 mm (5/1m system); ±0.038 mm (9m system) |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
