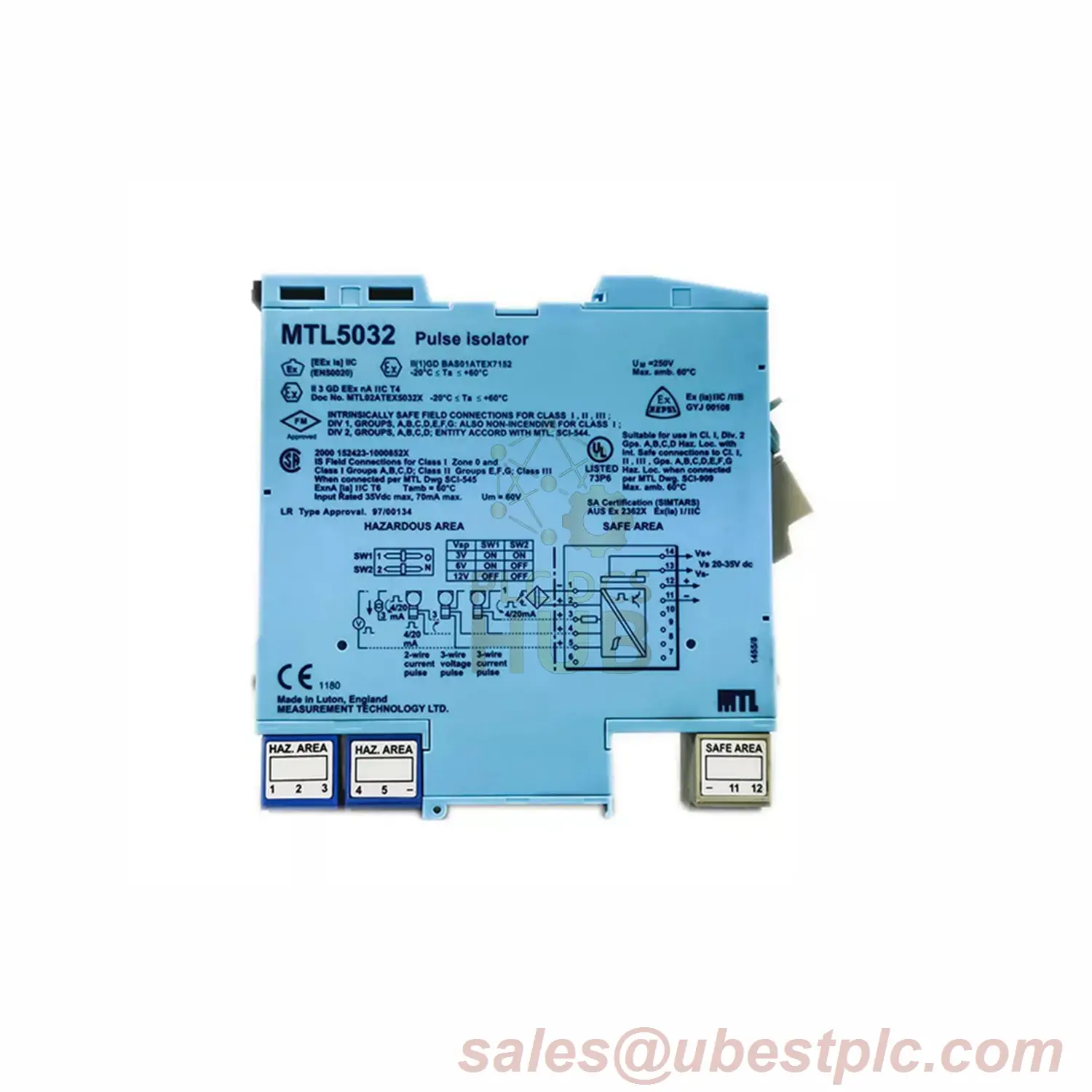

MTL5032: Pulse Guardian for Explosive Zones
Isolate dangerous-area pulses safely! The MTL5032 barrier handles switches, sensors, and pulse transmitters in explosive environments. Perfect for Zone 0. Dual LED status monitoring.
⚡ Pulse Power Features
- Works with switches, sensors, and pulse transmitters
- Ultra-fast 50kHz signal handling
- NAMUR and DIN 19234 compliant
- Dual LED health monitoring
???? Precision Specs
- Input Types: Switch, Proximity, Current/Voltage Pulse
- Frequency Range: 0-50kHz
- Pulse Width: 10μs minimum
- Current Switching: ON >8.9mA / OFF <6.8mA
- Voltage Switching: Selectable 3V/6V/12V points
- Output: 50mA max (35V off-state)
- Power: 20-35V DC (55-70mA)
- Isolation: 1500V AC protection
- Temp Range: -40°C to +85°C operation
???? Terminal Guide
- 1: Common Negative
- 2: Proximity Detector+
- 3: Current Pulse+
- 4: Transmitter+
- 5: Voltage Pulse+
- 11,12: Output (-/+)
- 13,14: Power (-/+)
????️ Safe Purchase Promise
- 12-month no-hassle warranty
- Global shipping: Fedex, UPS, DHL
- Dual LED instant diagnostics
???? Pulse Pro Tips
Q1: What sensors work with MTL5032?
A: Switches, proximity detectors, current/voltage pulse transmitters.
Q2: How fast can it handle pulses?
A: Blazing 50kHz frequency with 10μs minimum width.
Q3: What’s special about terminal 3?
A: Safe connection into any IS loop under 28V without extra certification.
Q4: Can I adjust switching points?
A: Yes! Voltage models offer 3V, 6V, or 12V selection.
Q5: What do the LEDs indicate?
A: Green = power good, Yellow = signal status.
