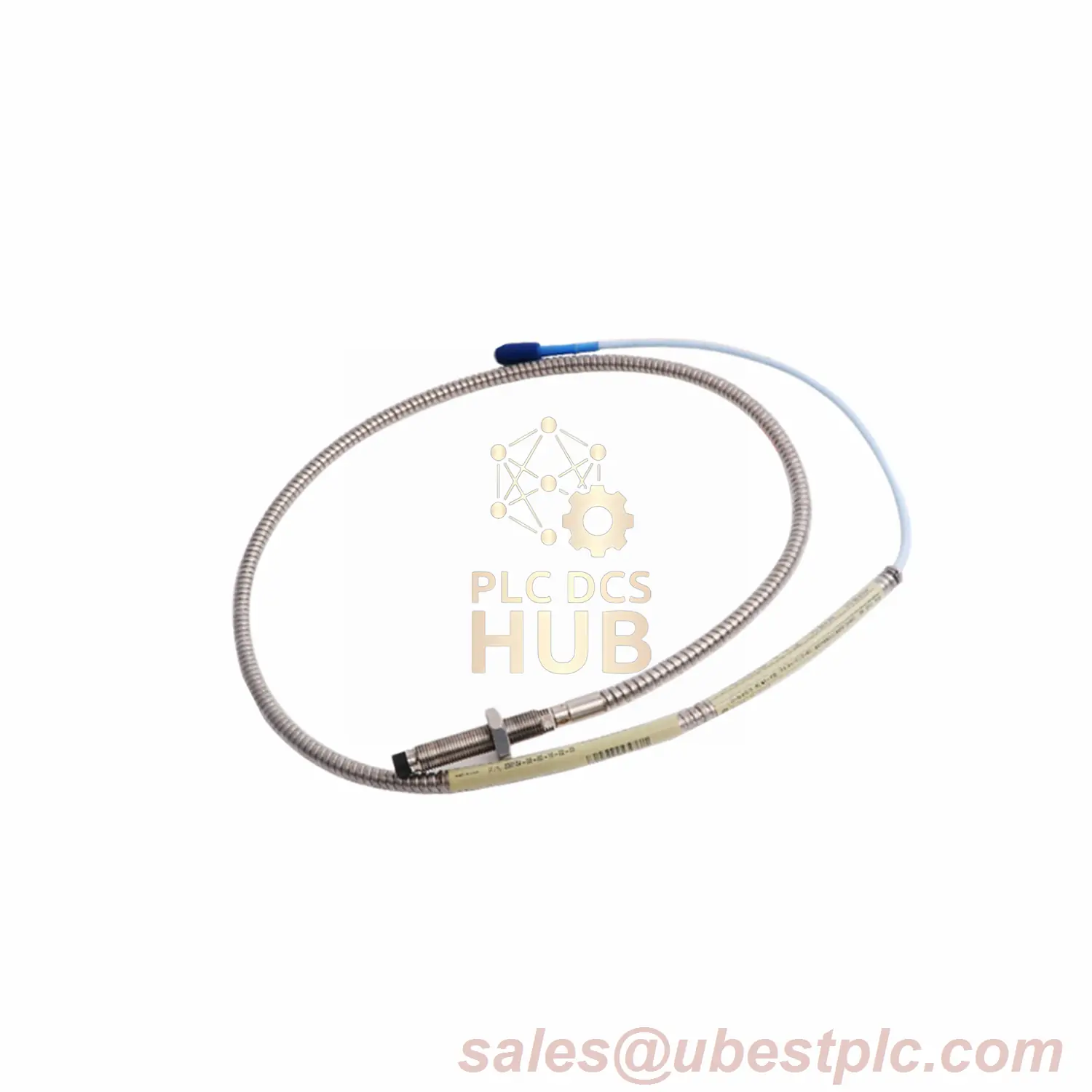

The Bently Nevada 3300 XL Probe (330851-02-000-030-10-01-05) has 30mm ultra-short case (Code 030) with multi-certifications (Code 05). Perfect for tight spaces needing ATEX/IECEx approvals in explosive areas.
Full Model Code Breakdown for 330851-02-000-030-10-01-05
| Position | Code | Description |
|---|---|---|
| 1-2 | 02 | M30x2 Thread |
| 3-5 | 000 | 0in Unthreaded |
| 6-8 | 030 | 30mm Case |
| 9-10 | 10 | 1.0m Cable |
| 11-12 | 01 | With Armor |
| 13-14 | 05 | Multi-Approvals |
Critical Data
| Parameter | Value |
|---|---|
| Resistance (1m) | 6.2Ω ±0.5 |
| Temp Range | -35°C to +200°C (+250°C for 24hrs) |
| Weight | 330g (11.6oz) |
| Cable Options | 1m/5m/9m |
Installation Guide
- Max Torque: 163 N·m
- Safe Torque: 68 N·m (50 ft·lb)
- Replaces: 7200 25mm/35mm probes
Certifications
- ATEX Zone 0/Zone 2
- IECEx Ex ia IIC T5
- ABS Marine
- FCC/EMC/RoHS
Real Application
Monitors wind turbine gearboxes in offshore farms, detecting oil leaks in nacelles with saltwater exposure.
Package Includes
- 1x 30mm Armored Probe
- 1-Year Global Warranty
