Description
Technical Data for 330851-02-000-050-90-00-CN
- Brand: Bently Nevada

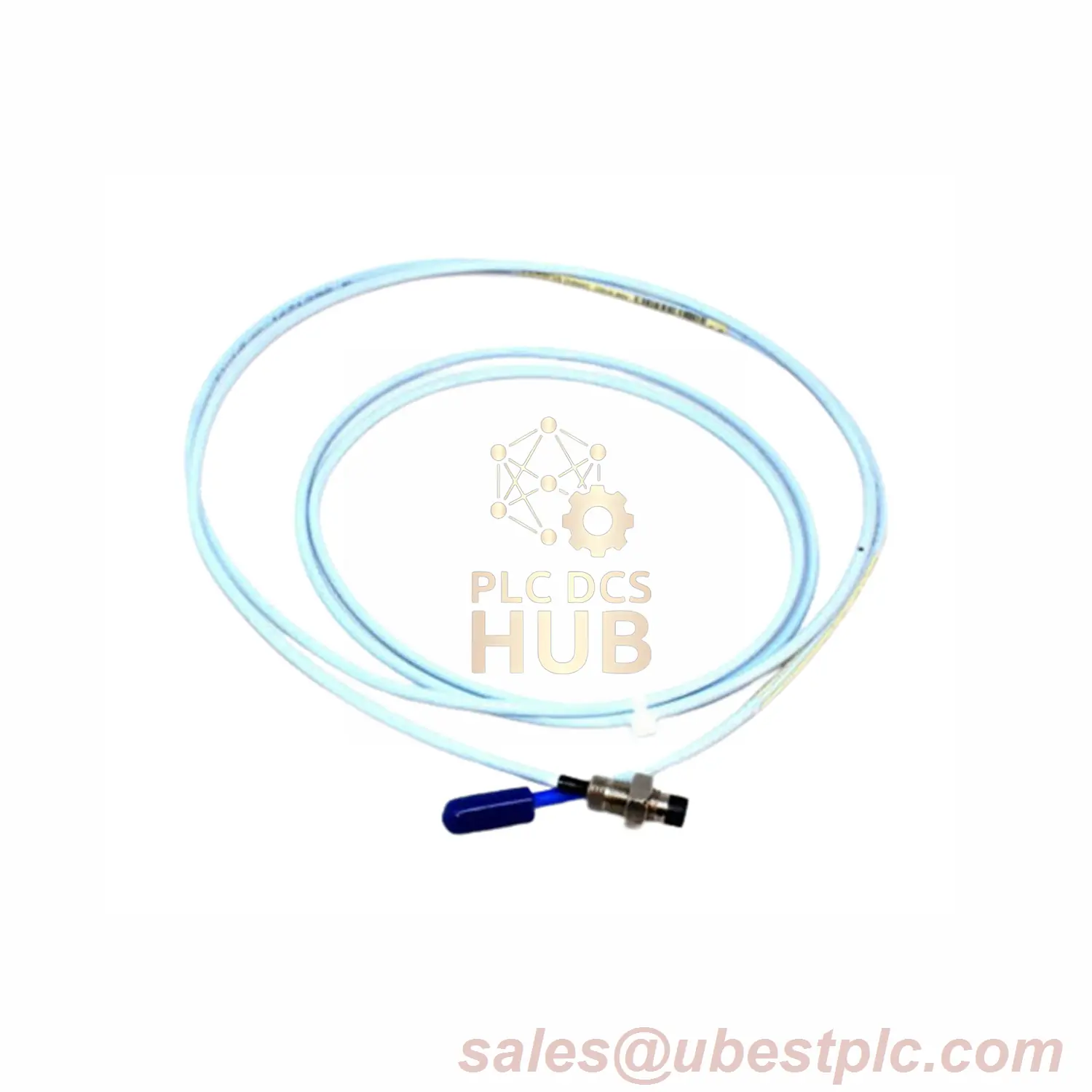

- Model: 3300 XL 25 mm Proximity Probe
- Full Suffix: 330851-02-000-050-90-00-CN
- Thread: M30x2
- Case Length: 50mm (code 050)
- Cable: 9m PFA Triaxial (75Ω)
- Resistance: 8.8Ω ±1.1Ω
- Vibration Limit: 20g peak (10-2000Hz)
- Protection Rating: IP67 (dust/water resistant)
- Temperature: -35°C to +200°C (continuous), +250°C (24h max)
Key Features
- Tip Material: PEEK (chemical-resistant)
- Cable Insulation: PFA (handles oils/steam)
- Weight: 240g (9m cable, no armor)
- Shock Survival: 100g for 6ms
Installation
- Mounting Torque: 68 N•m max
- Gap Voltage: -12V to -24V DC
- Fits 25mm DE Integral systems
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5
- ABS Type Approval (Marine)
- FCC Part 15, EN 61000-6-2/4
Real-World Uses
- Gas Turbines: Monitors blade vibration at 150°C+
- Oil Pumps: Detects shaft displacement in wet conditions
- Power Plants: Works in boiler feed pumps (high steam areas)
What’s Included
- Probe with 9m cable
- Safety compliance guide
Warranty
1-year limited warranty.
