Description
Product Description

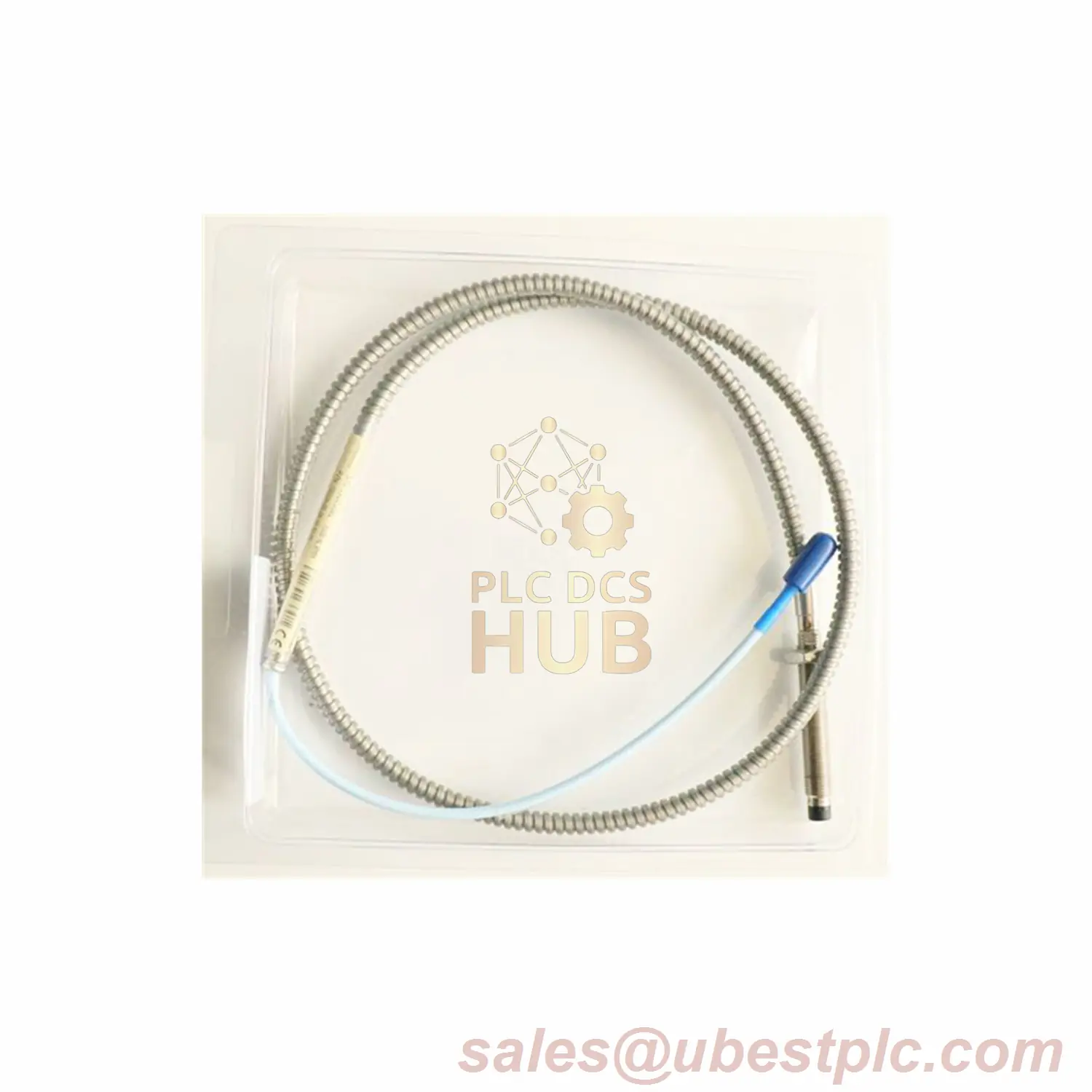

The Bently Nevada 3300 XL 25 mm Proximity Probe, model 330851-02-000-040-10-00-05, is designed for extreme environments such as steam turbines. It directly replaces standard 7200 25 mm and 35 mm systems. This probe delivers high accuracy and reliable measurements in temperatures up to +200 °C (392 °F), with short-term tolerance up to +250 °C (482 °F).
Technical Specifications
| Brand | Bently Nevada |
| Model | 330851-02-000-040-10-00-05 |
| Probe Type | 3300 XL 25 mm Proximity Probe |
| Thread Type | M30x2 |
| Unthreaded Length | 0 in |
| Overall Case Length | 40 mm |
| Total Cable Length | 1.0 metre (3.3 ft) |
| Armor | No Armor |
| Approvals | Multiple Approvals |
| Probe Resistance | 6.2 ± 0.5 ohms (at 1.0 m) |
| Temperature Range | -35°C to +200°C (Short term +250°C) |
| Output Signal | Compatible with 3300 XL systems |
| Weight | 230 g (no armor) |
| Probe Tip Material | PEEK |
| Probe Case Material | 304 SST |
| Cable Type | 75Ω triaxial PFA-insulated FluidLoc |
Installation Guide
Ensure correct torque when mounting.
Recommended Torque: 68 N·m (50 ft·lb)
Max Torque: 163 N·m (120 ft·lb)
Use with zener barriers or galvanic isolators as per drawings 141092 and 140979.
Compatibility
Designed to replace all 7200 25 mm and 35 mm probes. Compatible with DE Integral transducers, side, and rear exit versions. Works seamlessly with Bently Nevada 3300 XL monitoring systems.
Certifications
- FCC Part 15 compliant
- EMC
- RoHS
- ABS Marine Approval
- ATEX/IECEx
Temperature Classification
| Class | Temperature |
| T1 | -55°C to +232°C |
| T2 | -55°C to +177°C |
| T3 | -55°C to +120°C |
| T4 | -55°C to +80°C |
| T5 | -55°C to +40°C |
Application Example
Commonly used in steam turbines and industrial rotating equipment. This probe is ideal for extreme conditions where high temperature and vibration resistance are critical.
Package Includes
- 1x Bently Nevada 330851-02-000-040-10-00-05 25 mm Proximity Probe
- User Installation Guide
Warranty
Standard 12-month warranty from the shipping date.
