25 mm Proximity Probe – Bently Nevada 330851-02-000-080-90-01-CN

Description

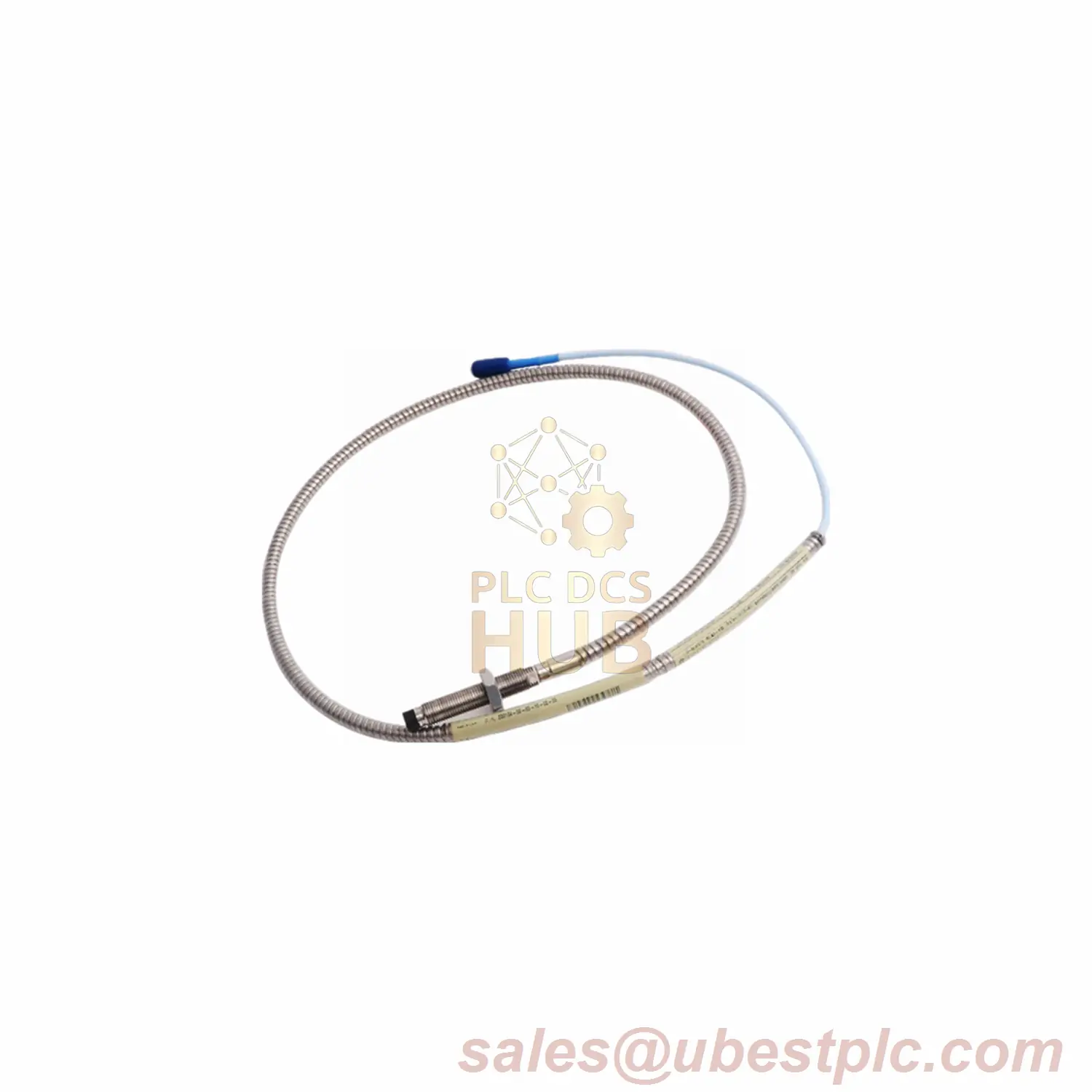

Bently Nevada Probe 330851-02-000-080-90-01-CN

New 330851-02-000-080-90-01-CN | Country-Specific Certified | High-Temperature Armored Probe

Part Number Breakdown

• 02: M30x2 Threaded Case
• 000: 0″ Unthreaded Section
• 080: 80mm Case Length
• 90: 9.0m Cable (29.5 ft)
• 01: SST Armor Included
• CN: Country-Specific Approvals

Key Specifications

• Resistance: 8.8Ω ±1.1 (Center to Outer Conductor)
• Voltage: -17.5V to -26V DC
• Temperature: -35°C to +200°C (Long-Term) / +250°C (24hr Max)
• Weight: 330g (11.6 oz) with Armor
• Cable: 75Ω Triaxial FluidLoc® (PFA Insulation)

Industrial Applications

• Petrochemical Plants: Monitor pump shaft vibrations in high-heat refinery units.
• Marine Propulsion: Engine gearbox alignment in cargo vessels.
• Ceramic Kilns: Track roller health in high-temperature manufacturing.

Installation Guide

• Max Torque: 163 N·m (120 ft·lb) / Recommended: 68 N·m (50 ft·lb)
• Use with 3300 XL 25mm Proximitor Systems Only
• Avoid Sharp Cable Bends to Protect FluidLoc® Seal

Support: sales@ubestplc.com | Warranty: 12 Months

Download official datasheet here: 3300-XL-25MM-Datasheet
